VFD-F Series
DELTA ELECTRONICS, INC. ALL RIGHTS RESERVED
B-6

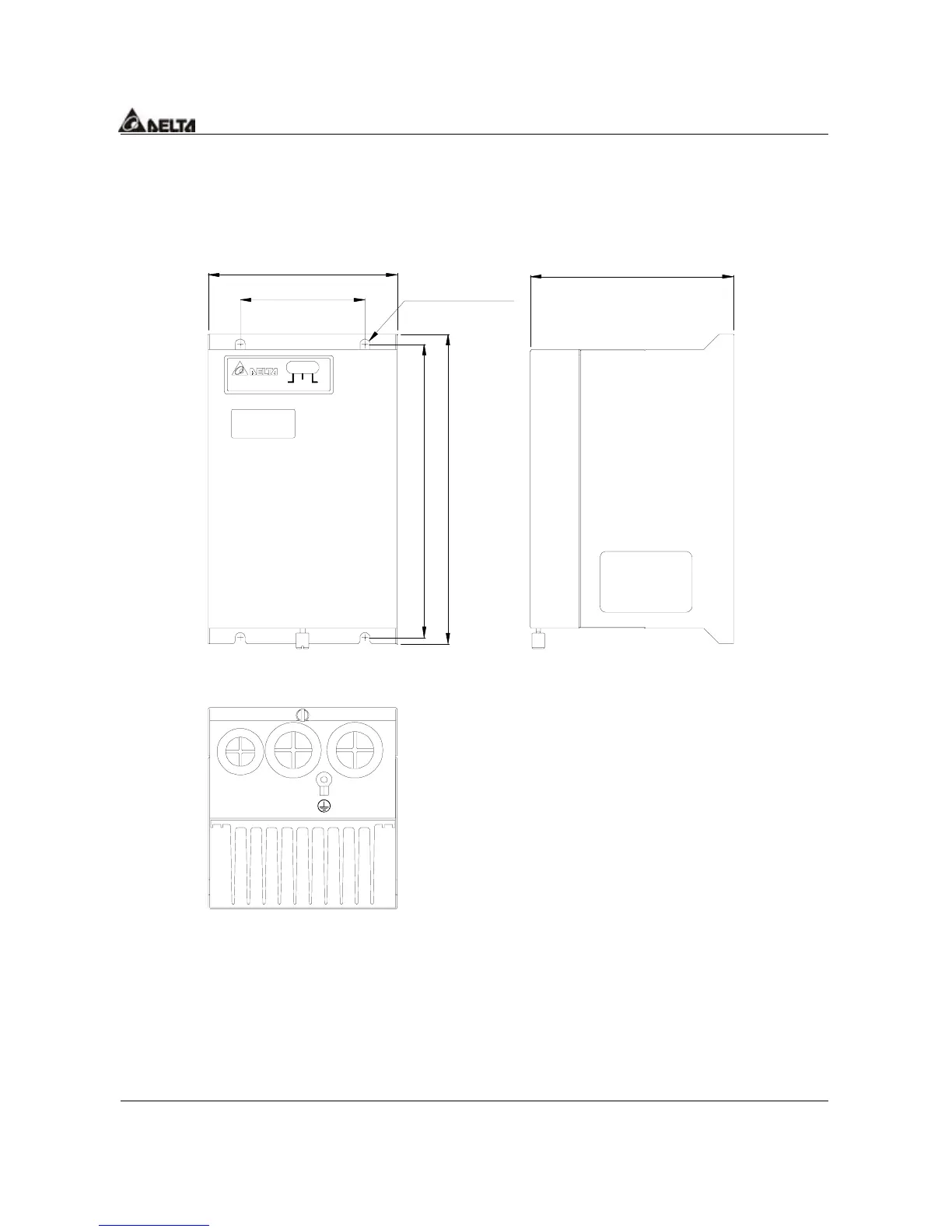

B.1.3 Dimensions for Brake Unit
(Dimensions are in millimeter[inch])
Figure 1: VFDB2015, VFDB2022, VFDB4030, VFDB4045
80.0 [3.15]
121.0 [4.76]
189.5 [7.46]
200.0 [7.87]
130.0 [5.12]
R3.3 [R0.13]
ACT.
YELLOW
CHARGE
GREEN
ERR.
RED
