VFD-F Series
DELTA ELECTRONICS, INC. ALL RIGHTS RESERVED
3-4

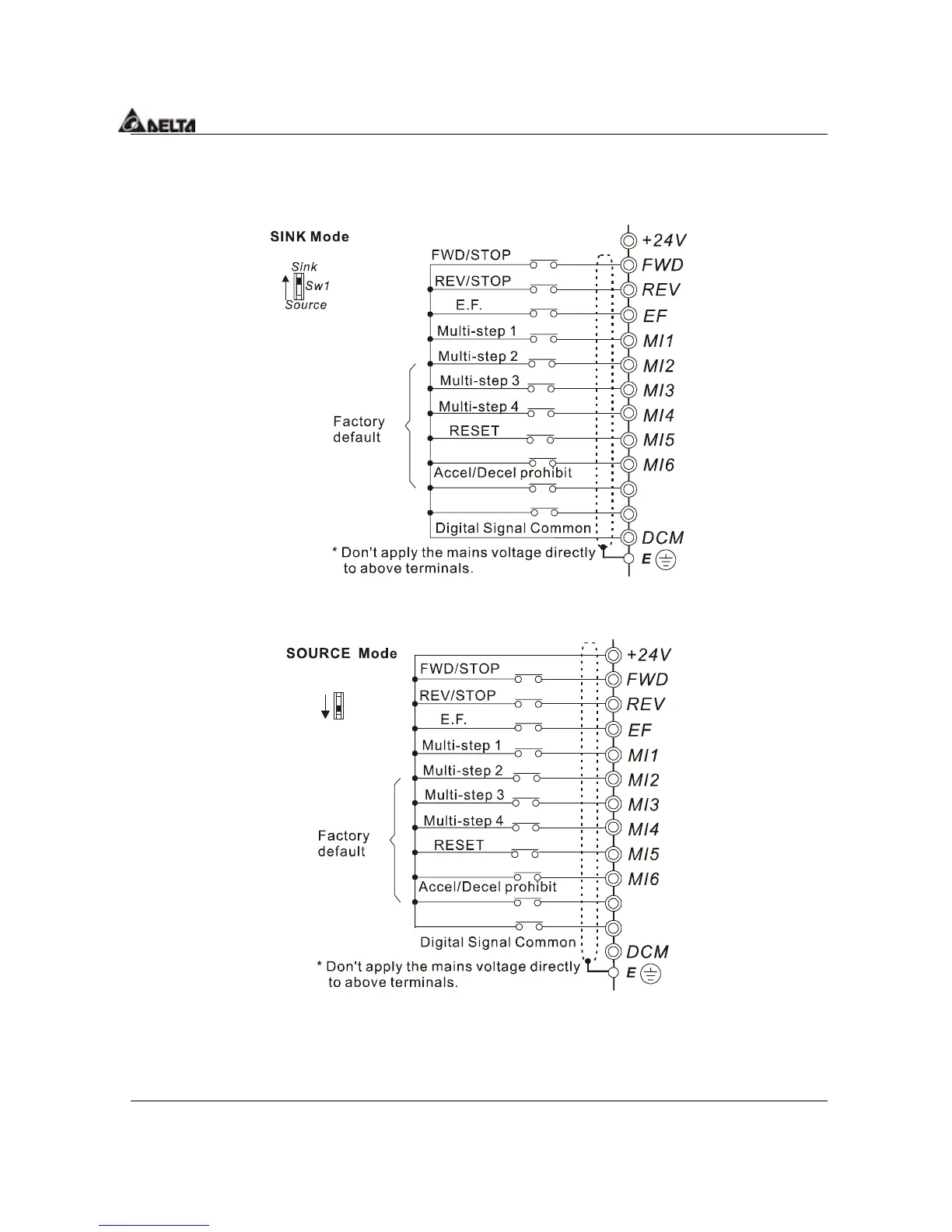

Wiring for SINK mode and SOURCE mode
JOG
1/2 Accel/Decel switch
MI7
MI8
Sw1
Sink
Source
JOG
1/2 Accel/Decel switch
MI7
MI8
