Delta Electronics AC Drive VFD-F Series User Manual

VFD-F Series
DELTA ELECTRONICS, INC. ALL RIGHTS RESERVED
B-14
B.6 PU06

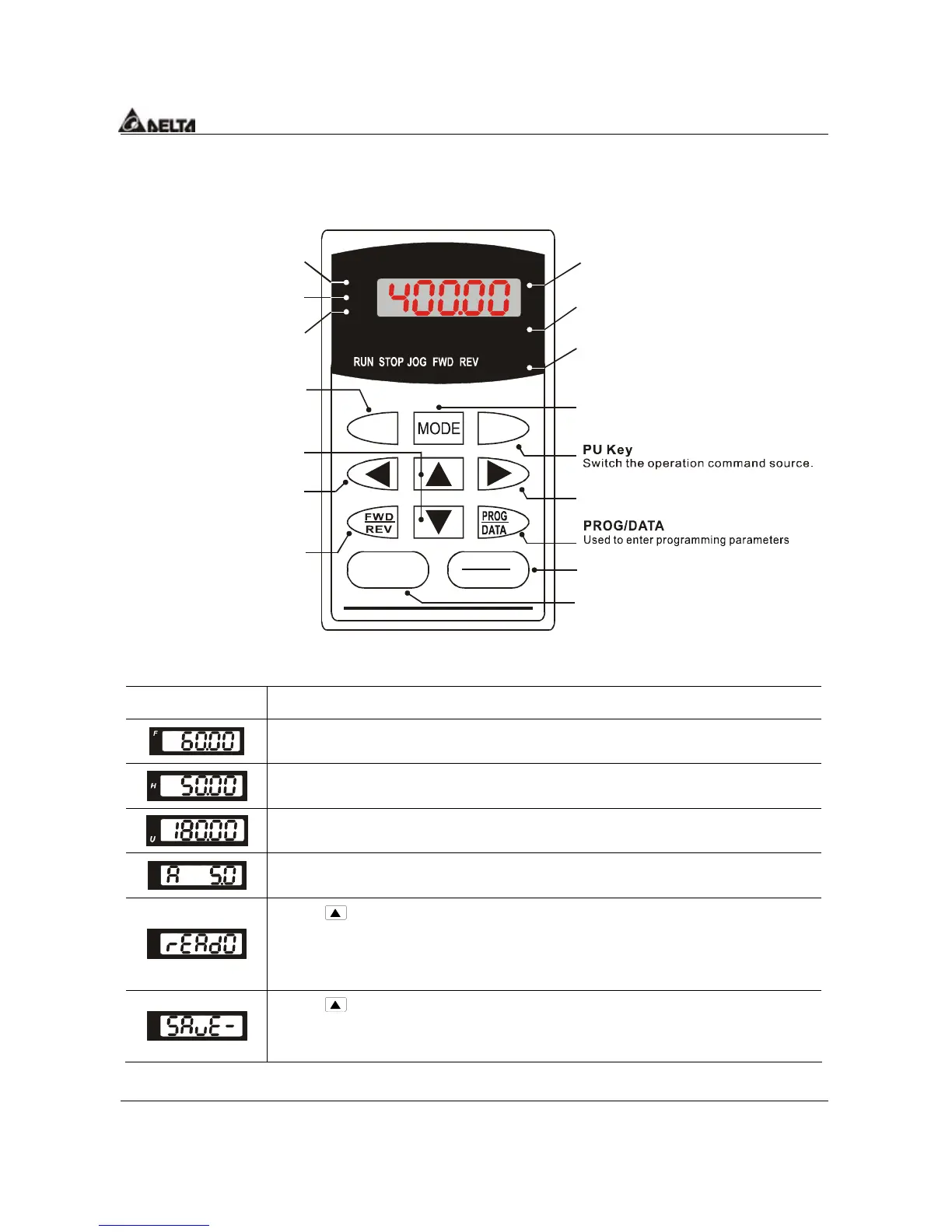

B.6.1 Description of the Digital Keypad VFD-PU06
U
F
H
VFD-PU06
JOG
RUN
RESET
STOP
LED Display
Indicates frequency, voltage, current, user
defined units, read, and save, etc.
Status Display
Display the driver's current status.
Model Number
STOP/RESET
Stops AC drive operation and reset the drive
after fault occurred.
PU
EXT P U
Right key
Move the cursor to the right
RUN Key
Start AC drive operation.
Frequency Command
Status indicator
Output Frequency
Status indicator
User Defined Units
Status indicator
JOG
By pressing JOG key,
Jog frequency operation.
MODE
Change between different display mode.
Left Key
Move cursor to the left.
UP and DOWN Key
Set the parameter number
and changes the numerical
data, such as Master Frequency.
FWD/REV Key
Select FWD/REV operation.
B.6.2 Explanation of Display Message
Display Message
Descriptions
The AC motor drive Master Frequency Command.
The Actual Operation Frequency present at terminals U, V, and W.
The custom unit (u)
The output current present at terminals U, V, and W.
Press
to change the mode to READ. Press PROG/DATA for about 2
sec or until it’s flashing, read the parameters of AC drive to the digital
keypad PU06. It can read 4 groups of parameters to PU06. (read 0 – read
3)
Press to change the mode to SAVE. Press PROG/DATA for about 2
sec or until it’s flashing, then write the parameters from the digital keypad
PU06 to AC drive. If it has saved, it will show the type of AC motor drive.
