Delta Electronics AC Drive VFD-F Series User Manual

1
VFD-F Series
DELTA ELECTRONICS, INC. ALL RIGHTS RESERVED
1-1
CHAPTER 1 RECEIVING AND INSPECTION
This VFD-F AC drive has gone through rigorous quality control tests at the factory before
shipment. After receiving the AC drive, please check for the following:
Receiving
9
Check to make sure that the package includes an AC drive, the User Manual, dust
covers and rubber bushings.
9 Inspect the unit to insure it was not damaged during shipment.
9 Make sure that the part number indicated on the nameplate corresponds with the part
number of your order.

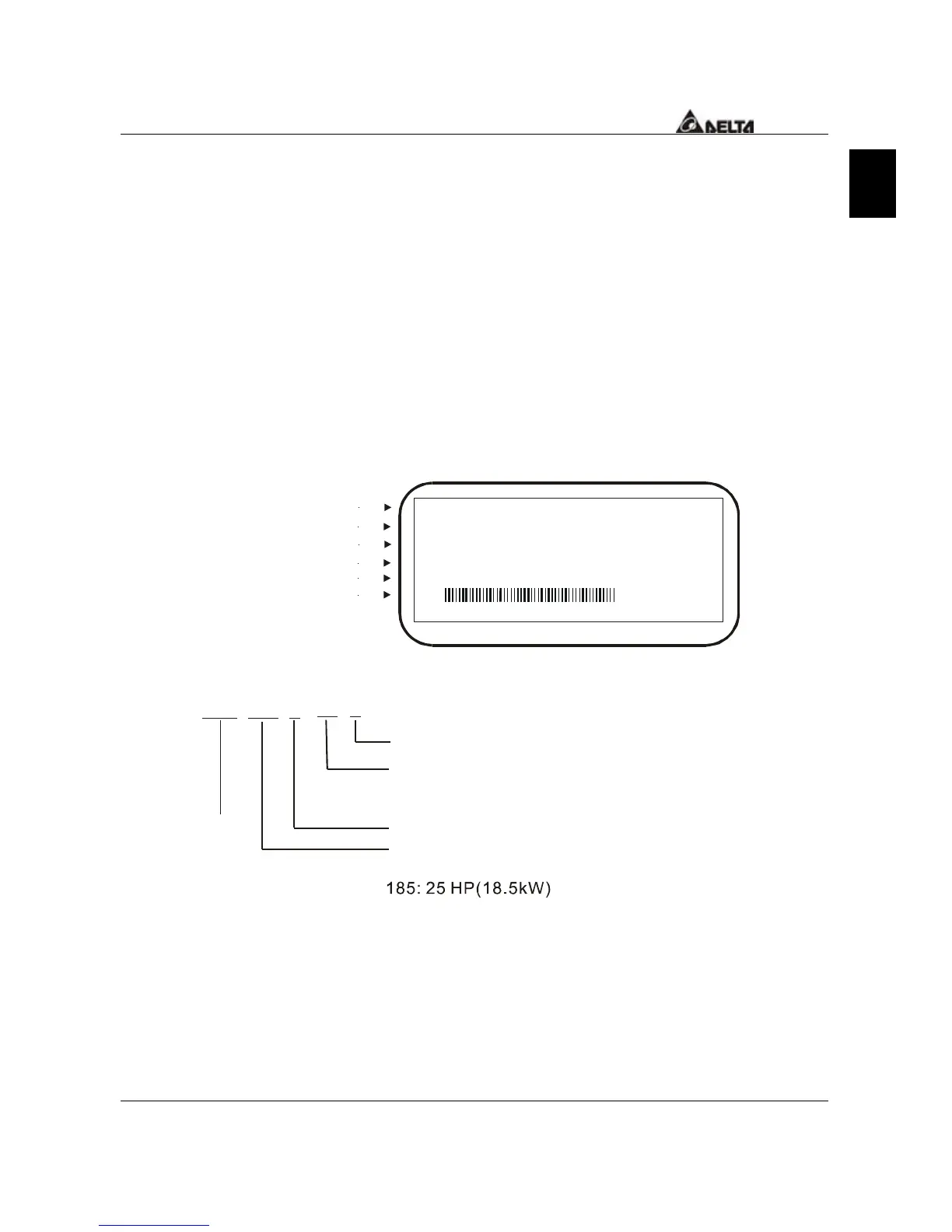

1.1 Nameplate Information: Example for 7.5HP/5.5kW 3-phase 460V AC drive
MODEL : VFD055F43A
INPUT : 3PH 380-480V 50/60Hz 14A
OUTPUT : 3PH 0-480V 13 .9KVA 7.5HPA 9
Frequency Range : 1.5-120Hz
DELTA ELECTRONICS INC.
MADE IN XXXXX
AC Drive Model
Input Spec.
Output Spec.
Output Frequency Range
Serial Number & Bar Code
Enclosure: TYPE 1
Enclosure type
055F43AT201001
1.2 Model Explanation
VFD
A
Version Type
43
Input Voltage
43:Three phase 460V
F
VFD-F Series
055
Applicable motor capacity
220: 30 HP(22kW)
300: 40HP(30kW)
055: 7.5HP(5.5kW)
075: 10 HP(7.5kW)
110: 15 HP(11kW)
750: 100HP(75kW)
Series
Name
150: 20HP(15kW)
370: 50HP(37kW)
450: 60HP(45kW)
550: 75HP(55kW)
900: 120HP(90kW)
1100: 150HP(110kW)
1320: 175HP(130kW)
23:Three phase 230V
007: 1.0HP(0.75kW)
015: 2.0HP(1.5kW)
022: 3.0HP(2.2kW)
037: 5.0HP(3.7kW)
1600: 215HP(160kW)
1850: 250HP(185kW)
2200: 300HP(220kW)
