3
VFD-F Series
DELTA ELECTRONICS, INC. ALL RIGHTS RESERVED
3-15
13. For the single-phase rated AC drives, the AC power can be connected to any two of the
three input terminals R/L1, S/L2, T/L3. Note: This drive is not intended for the use
with single-phase motors.
14. Route the power and control wires separately, or at 90
°
angle to each other.
15. If a filter is required for reducing EMI (Electro Magnetic Interference), install it as close
as possible to AC drive. EMI can also be reduced by lowering the Carrier Frequency.
16. If the AC drive is installed in the place where a load reactor is needed, install the filter
close to U/T1, V/T2, W/T3, side of AC drive. Do not use a Capacitor or L-C Filter
(Inductance-Capacitance) or R-C Filter (Resistance-Capacitance), unless approved by
Delta.
17. When using a general GFCI (Ground Fault Circuit Interrupter), select a current sensor
with sensitivity of 200mA or above, and not less than 0.1-second detection time to avoid
nuisance tripping. For the specific GFCI of the AC motor drive, please select a current
sensor with sensitivity of 30mA or above.
18. To improve the input power factor, to reduce harmonics and provide protection from AC
line disturbances (surges, switching spikes, short interruptions, etc.), AC line reactor
should be installed when the power supply capacity is 500kVA or more.

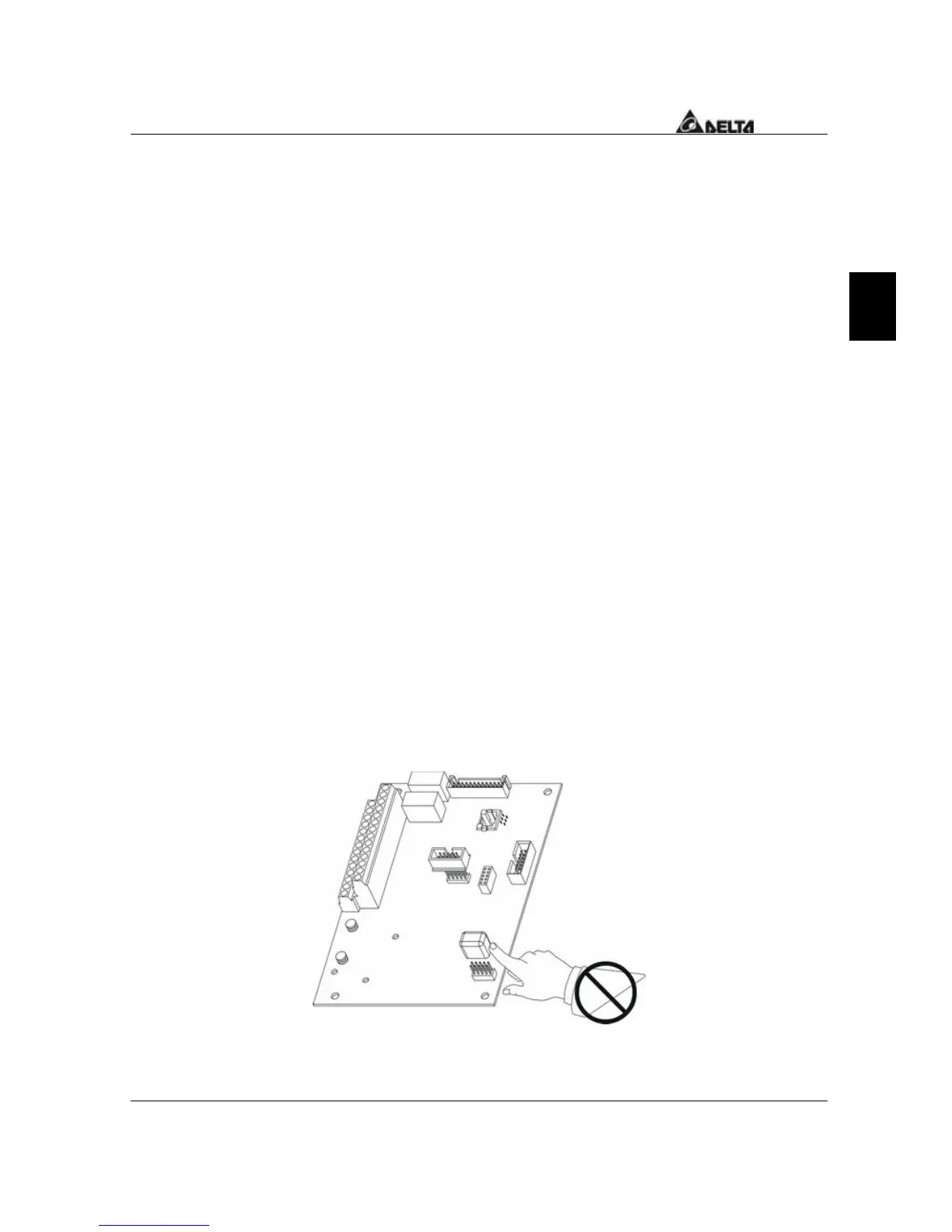

19. There are highly sensitive MOS components on the printed circuit boards. These
components are especially sensitive to static electricity. To prevent damage to these
components, do not touch these components or the circuit boards with metal objects or
your bare hands.
