5-48

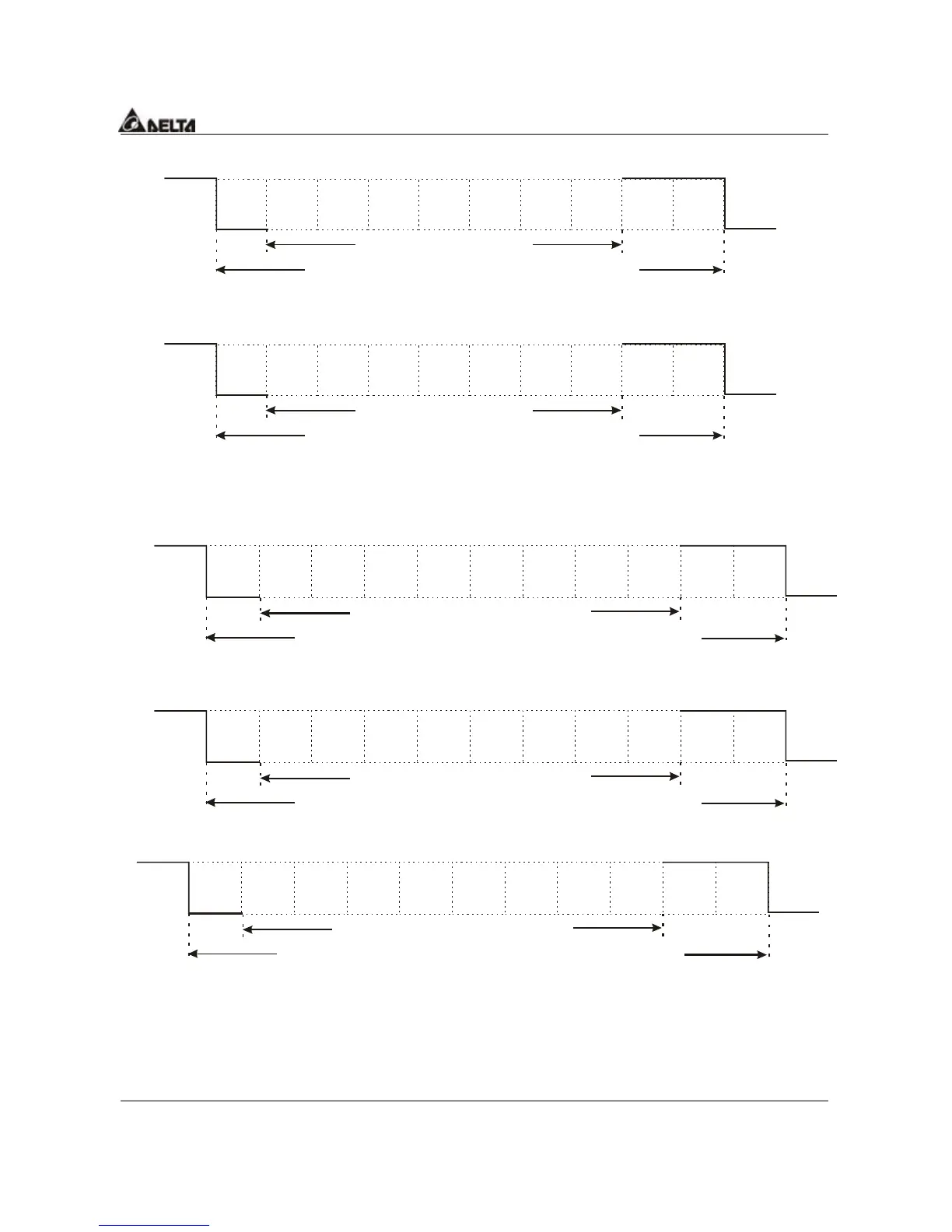

 (7 , E , 1 : 9-04=0, 9-05=04)
0123456
Start
bit
Even
parity
Stop
bit
7-bit character
10-bit character frame
 (7 , O , 1 : 9-04=0, 9-05=05)
0123456
Start
bit
Odd
parity
Stop
bit
7-bit character
10-bit character frame
2.2 11-bit character frame (for 8-bit) :
 (8 , N , 2 : 9-04=1 or 2, 9-05=00)
01234567
Start
bit
Stop
bit
Stop
bit
8-bit character
11-bit character frame
 (8 , E , 1 : 9-04=1 or 2, 9-05=04)
01234567
Start
bit
Even
parity
Stop
bit
8-bit character
11-bit character frame
 (8 , O , 1 : 9-04=1 or 2, 9-05=05)
01234567
Start
bit
Odd
parity
Stop
bit
8-bit character
11-bit character frame
