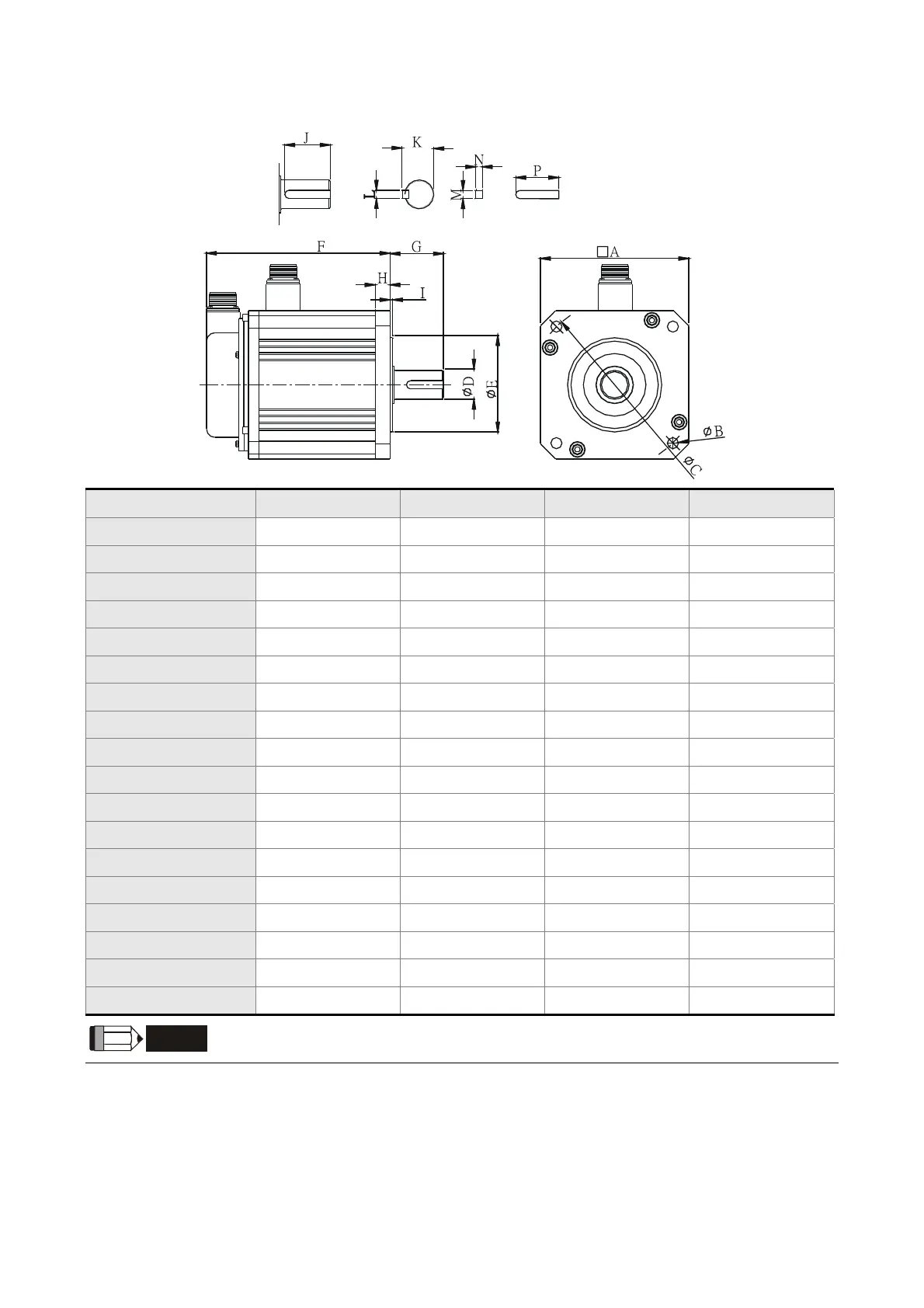

11.10 Dimensions of Medium Inertia Servo Motor (ASMTM Series)
Model ASMT10M250 ASMT15M250 ASMT20M250 ASMT30M250
A 130 130 180 180
B 9 9 13.5 13.5
C 145 +0.2 –0.2 145 +0.2 –0.2 200 +0.2 –0.2 200 +0.2 –0.2
D 22h6 +0.0 –0.013 22h6 +0.0 –0.013 35h6 +0.0 –0.016 35h6 +0.0 –0.016
E 110h7 +0.0 –0.035 110h7 +0.0 –0.035 114.3h7 +0 –0.035 114.3h7 +0 –0.035
F (without brake) 143 158 164 212
F (with brake) 181 196 213 258
G 55 55 75 75
H 15 15 20 20
I 4 4 4 4
J 44 44 65 65
K 25 +0.0 –0.1 25 +0.0 –0.1 38 +0.0 –0.2 38+0.0 –0.2
L 8h9 +0.0 –0.036 8h9 +0.0 –0.036 10h9 +0.0 –0.036 10h9 +0.0 –0.036
M 8 8 10 10
N 7 7 8 8
P 40 40 60 60
Weight (without brake) 4.8 (10.58) 7.0 (15.43) 12.0 (26.46) 17.0 (37.48)
Weight (with brake) 7.5 (16.53) 9.7 (21.38) 19.0 (41.89) 24.0 (52.91)
NOTE
1) Dimensions are in millimeters. Weights are in kilograms (kg) and (pounds (lbs)).
2) Dimensions and weights of the servo motor may be revised without prior notice.
3) The boxes () in the model names are for optional configurations. (Please refer to section 1.2 for model
explanation.)
4) Actual measured values are in metric units. Dimensions and weights in (imperial units) are for reference
only.
