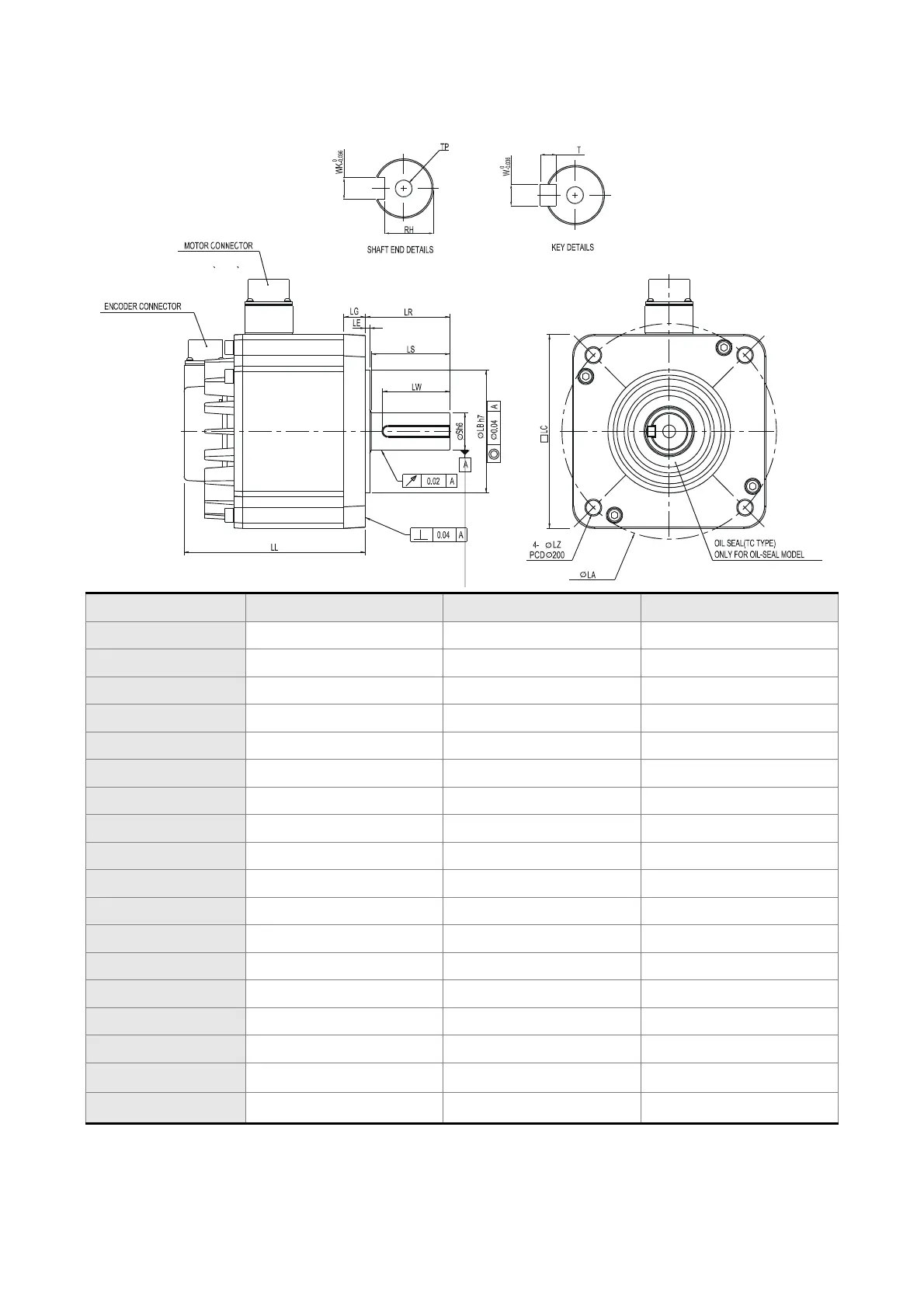

11.11 Dimensions of Medium / High Inertia Servo Motor (ECMA Series)
Model ECMA-F21830S ECMA-E21835S ECMA-F21845S
LC 180 180 180
LZ 13.5 13.5 13.5
LA 200 200 200
S 35 35 35
LB 114.3 114.3 114.3
LL 202.1 202.1 235.3
LR 79 79 79
LE 4 4 4
LG 20 20 20
LS 73 73 73
LW 63 63 63
RH 30 30 30
WK 10 10 10
W 10 10 10
T 8 8 8
TP M12, Depth25 M12, Depth25 M12, Depth25
Weight (without brake)
18.5（40.79） 18.5（40.79） 23.5（51.81）
Weight (with brake)
22.5（49.6） 22.5（49.6） 27.5（60.63）
