Chapter 3 Connections and Wiring|ASDA-A&A+ Series
3-8 Revision April 2009

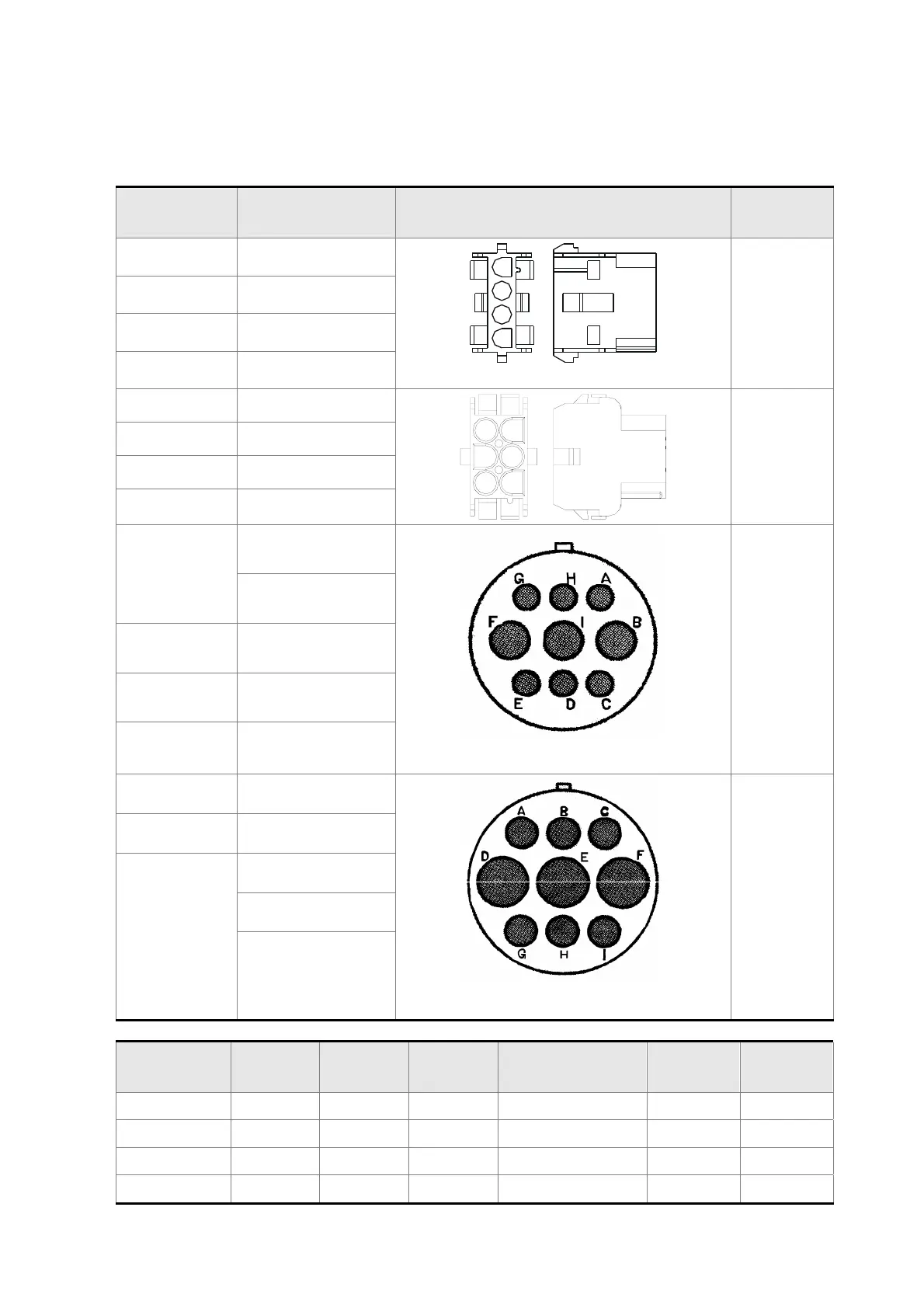

3.1.4 Motor Power Cable Connector Specifications
The boxes () in the model names are for optional configurations. (Please refer to section 1.2 for model
explanation.)
Servo Drive
Power Rating
Motor Part Number
Description
U, V, W / Electromagnetic Brake Connector
Terminal
Identification
100W ASMT-01L250A
200W ASMT-02L250A
400W ASMT-04L250A
750W ASMT-07L250A
1
2
3
4
A
100W ASMT-01L250B
200W ASMT-02L250B
400W ASMT-04L250B
750W ASMT-07L250B
1
2
3
4
5
6
B
ASMT-10L250
1kW
ASMT-10M250
1.5kW ASMT-15M250
2kW ASMT-20L250
3kW ASMT-30L250
20-18
C
2kW ASMT-20M250
3kW ASMT-30M250
ECMA-F21830S
ECMA-E21835S
4.5kW
ECMA-F21845S
24-11
D
Terminal
Identification
U
(Red)
V
(White)
W
(Black)
CASE GROUND
(Green)
BRAKE1
(Blue)
BRAKE2
(Brown)
A 1 2 3 4 - -
B 1 2 3 4 5 6
C F I B E G H
D D E F G A B
