Chapter 3 Connections and Wiring|ASDA-A&A+ Series
3-2 Revision April 2009

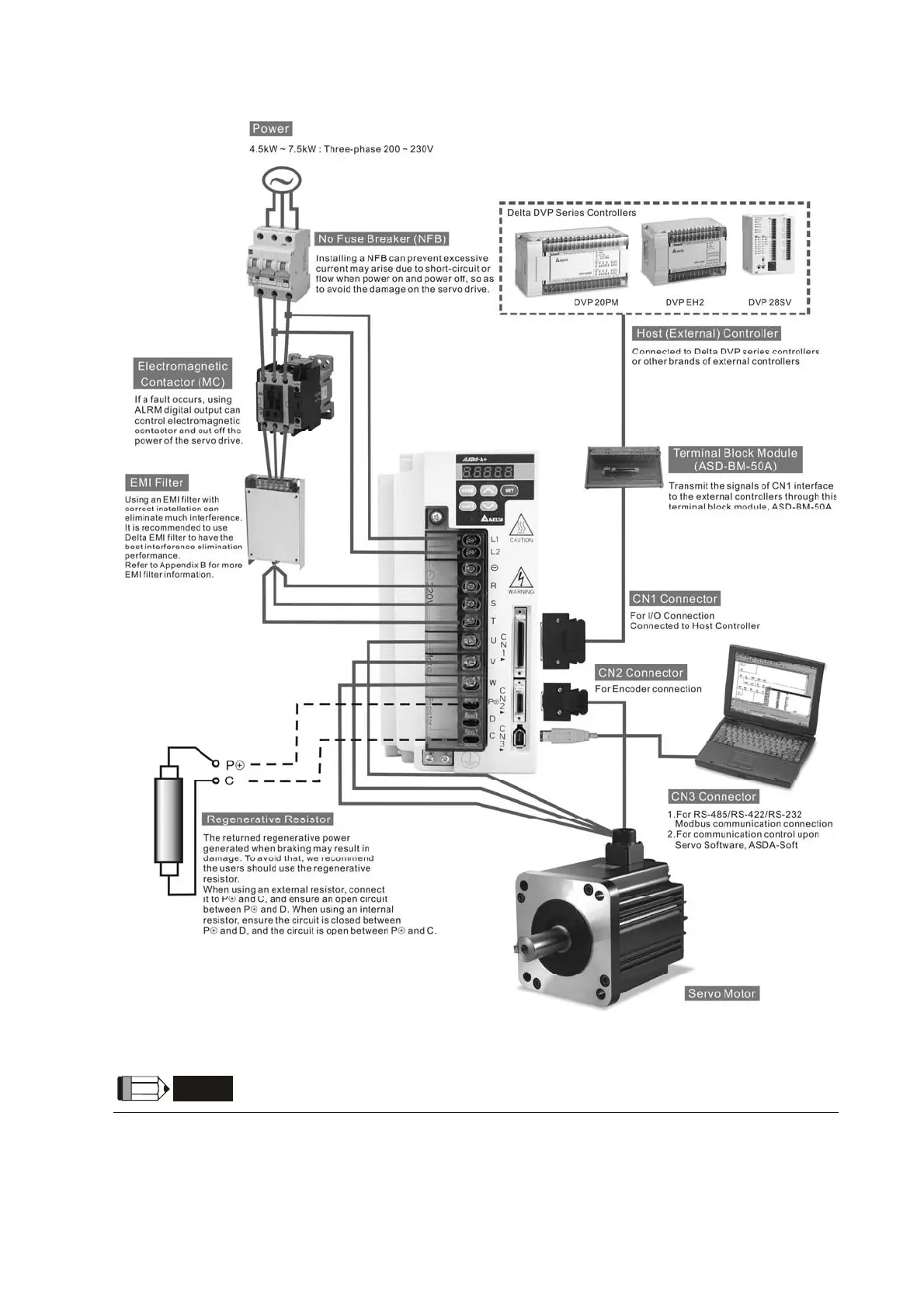

Figure 3.2 (ASDA-A+ Series)
NOTE
1) CN1, CN2, CN3 connectors and terminal block module, ASD-BM-50A are all optional parts, not
Delta standard supplied part (Refer to Appendix A).
2) Check if the wiring of control circuit power (L1, L2) and main circuit power (R, S, T) are correct.
