Delta Electronics Elevator Drive VFD-VL - Flange Mounting

Chapter 1 Introduction|
Revision Nov. 2008, VLE1, SW V1.03 1-9

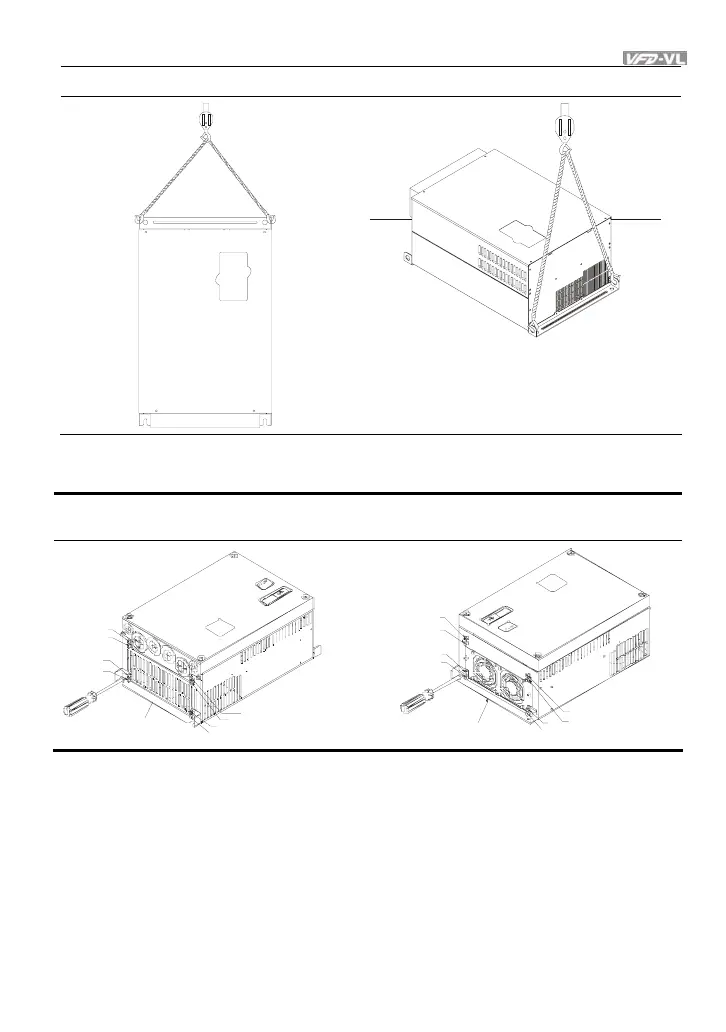

Step 3 Step 4
1.2.4 Flange Mounting
Step 1: Please take out the 16 screws (8 screws for each top and bottom side of the drive) and
remove the fixed plate 1 and fixed plate 2) as shown in the following figures.
3
4
1
2
7
8
5
6
fixed plate 1
1
2
5
6
3
4
7
8
fixed pl at e 2
