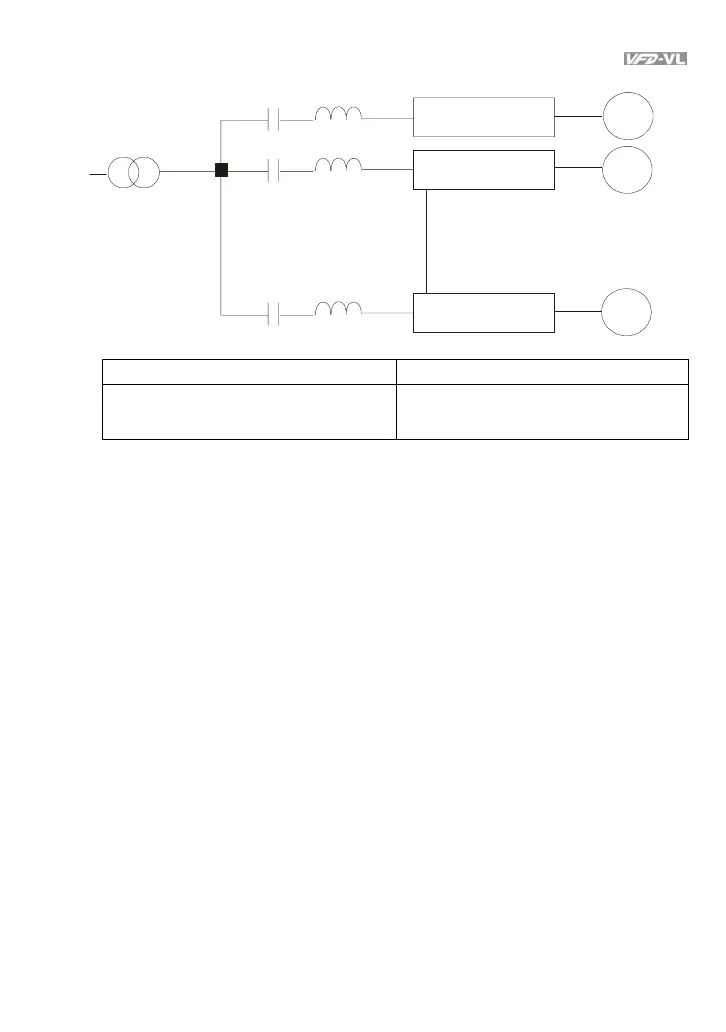

Correct wiring
M1
M2
Mn
reactor
AC motor drive
AC motor drive
AC motor drive
motor
motor
motor
Application 2 Question
Silicon rectifier and AC motor drive is
connected to the same power.
Surges will be generated at the instant of
silicon rectifier switching on/off. These
surges may damage the mains circuit.
