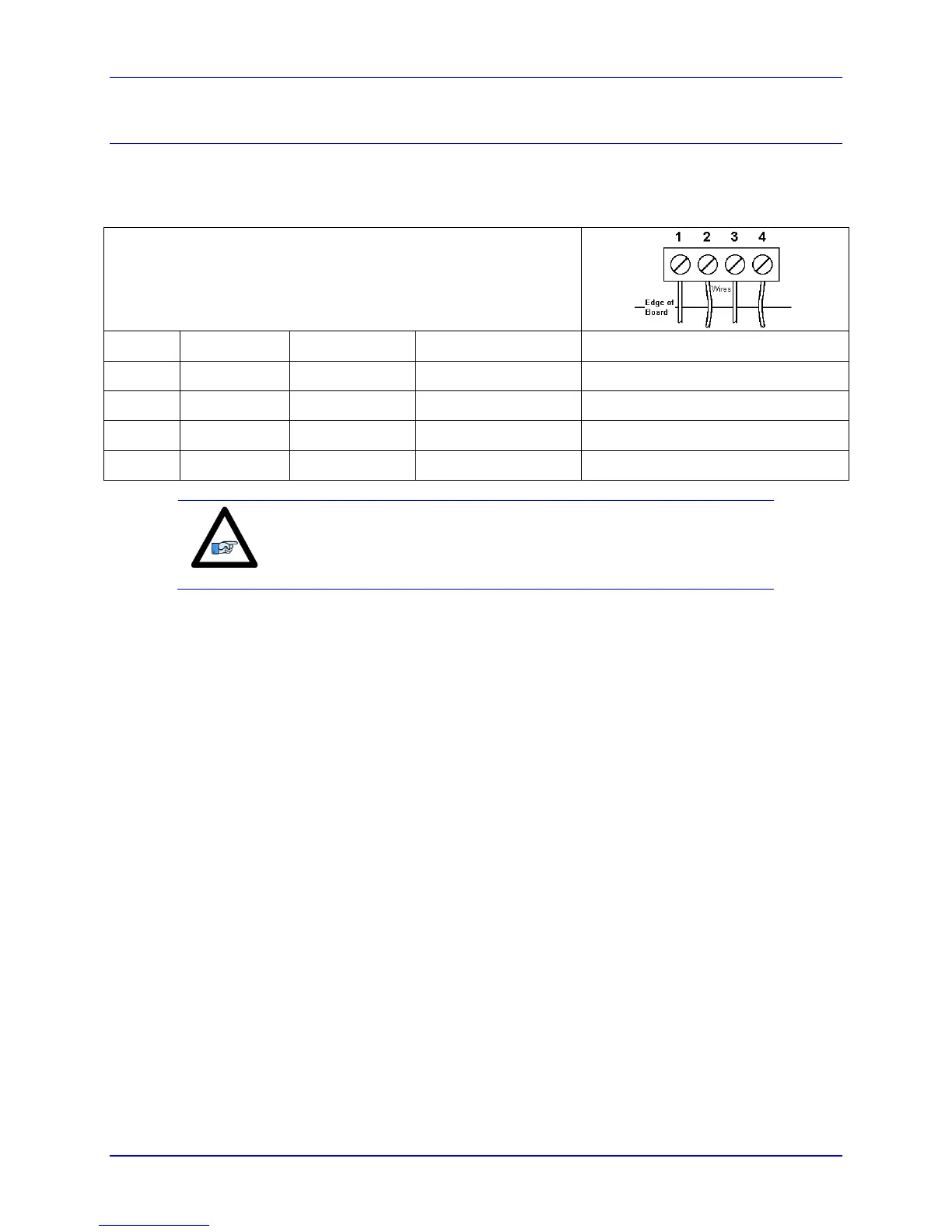

ACC-24S3 4-Channel Axis Expansion Stack Board 73
TB1 (JPWR): Power Supply Input
This 4-pin terminal block is used to bring the 5VDC logic power and +/-12VDC DAC supply into the
ACC-24S3 and Power PMAC Clipper stack. The power connector on the base board may be used instead
but not both simultaneously as this could lead to ground loop wiring.
TB1 (JPWR): Power Supply
4-Pin Terminal Block
Pin#
Symbol
Function
Description
Notes
1
GND
Common
Digital Common
2
+5V
Input
Logic Voltage
Supplies all PMAC digital circuits
3
+12V
Input
DAC Supply Voltage
Ref to Digital GND
4
-12V
Input
DAC Supply Voltage
Ref to Digital GND
Note
For +5V and GND, 18 gauge (AWG) stranded wire is recommended.
For +12V and -12V, a minimum of 22 gauge (AWG) stranded wire is
recommended.
