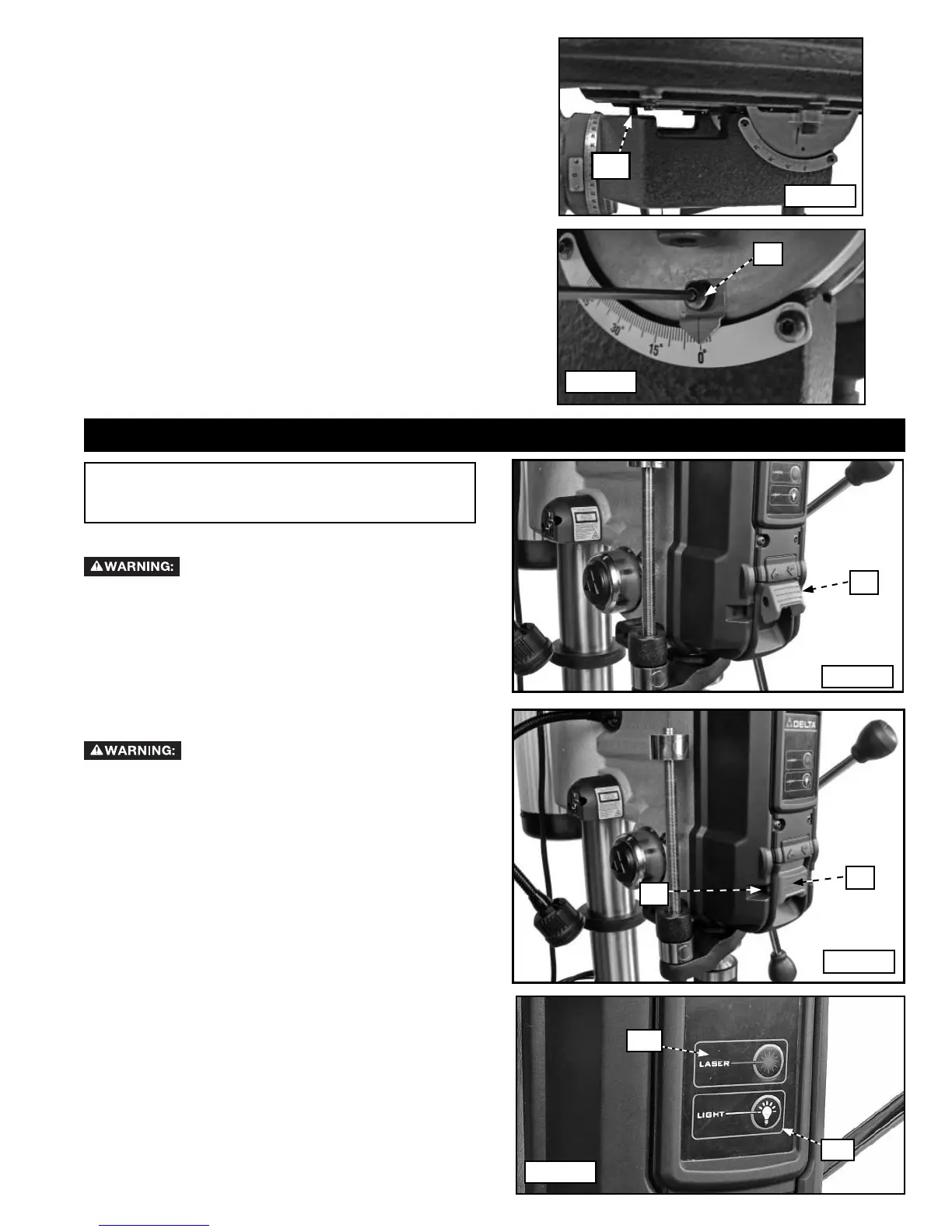

13
OPERATIONAL CONTROLS AND
ADJUSTMENTS
OPERATION
Fig. 25
Fig. 24
STARTING AND STOPPING 18-900L
To reduce the risk of injury, make sure
that the ON/OFF switch is in the "OFF" position before
plugging cord into outlet. Do not touch the plug’s metal
prongs when unplugging or plugging in the cord.
To turn drill press on, lift switch paddle (KK) Fig. 24 up
to the "ON" position. To turn drill press off, push switch
paddle (KK) Fig. 25 down to the "OFF" position, as
shown.
LL
KK
KK
LOCKING SWITCH IN THE "OFF" POSITION
To reduce the risk of injury, in the event
of a power outage (such as a breaker or fuse trip),
always move the switch to the “OFF” position until
the main power is restored.
IMPORTANT: When the machine is not in use, the
switch should be locked in the "OFF" position to prevent
unauthorized use, using a padlock through holes at (LL) Fig.
25. The minimum shackle diameter should be 1/5" (5 mm)
and minimum shackle length should be 7/8” (22.2 mm).
Fig. 26
MM
NN
TURNING ON WORK LIGHT AND LASERS
Push "LASER" button (MM) Fig. 26 to turn on or turn off
the crosshair lasers.
Push "LIGHT" button (NN) Fig. 26 to turn on or turn off
the LED work light.
TABLE TILT POINTER
Lock the forward tilt knobs with the table firmly against
the set screw (Y1) Fig. 23D.
Place the lockwasher under the screw head (Z1)
Fig. 23E and then the pointer. Align the indicator line
on the pointer with 0° mark on the scale and tighten
securely with supplied hex wrench.
Y1
Fig. 23D
Fig. 23E
Z1
