8
Compare all parts to the list below and check that all parts are present and in good condition. Report any missing or
damaged parts to your distributor or dealer. Prior to tool assembly and use, read this manual thoroughly to familiarize
yourself with proper assembly, maintenance and safety procedures.

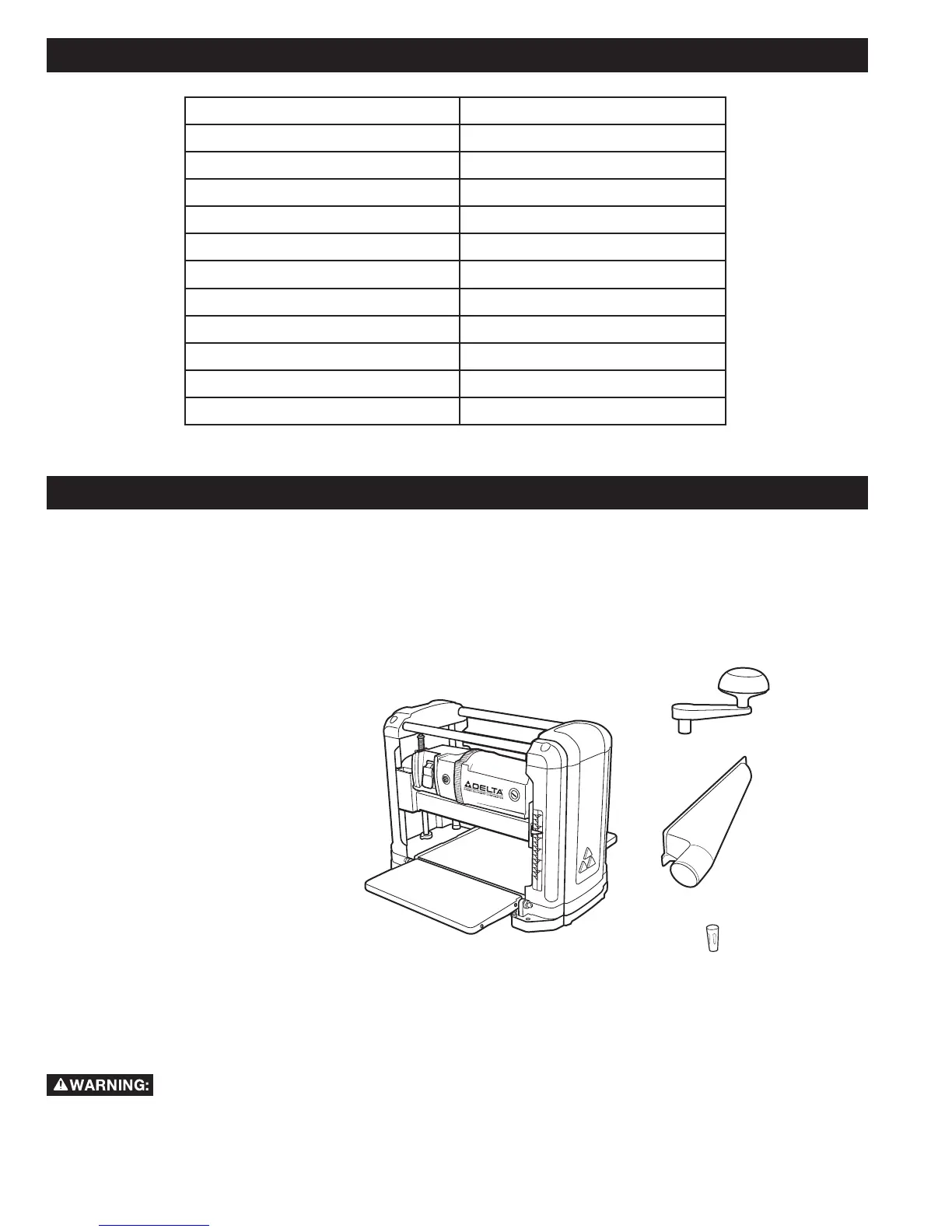

PRODUCT SPECIFICATIONS
UNPACKING
DESCRIPTION (QUANTITY)
1. DELTA® Model #22-555 Planer (1)
2. Height Adjustment Handle (1)
3. Reversible 2” Dust Port (1)
4. Knife Transfer Tool (2)
5. T-wrench (not shown)
HARDWARE PACKAGE
4mm T-handle Hex Wrench
M5x16mm Hex Head Screw (1)
M5 Flat Washer
M6x15mm Lock Knob (2)
Remove any protective materials and coatings from all of the parts and the tool. The protective coatings can be removed
by spraying WD-40 on them and wiping it off with a soft cloth. This may need redone several times before all of the
protective coatings are removed completely.
If any parts are missing, do not attempt to plug in the power cord and turn “ON” the machine. The
machine should only be turned “ON” after all the parts have been obtained and installed correctly.
Cuts Per Minute 18,800
Feed Rate 28ft./min.
Max. Cut Depth (per pass) 3/32”
Max. Cutting Width 12- ½
Max. Cutting Height 6”
Cutterhead Speed 9,400 RPM
Tool Dimensions (LxWxH) 21-5/8” x 23-5/8” x 20-1/8”
Motor 15 Amp, 120V
Net Weight 58 lbs
Knife Type Double-edge reversible
Number of Knives 2
Knife Size (L x W x T) 320mm x12mm x1.5mm
1
2
3
4
5
