8

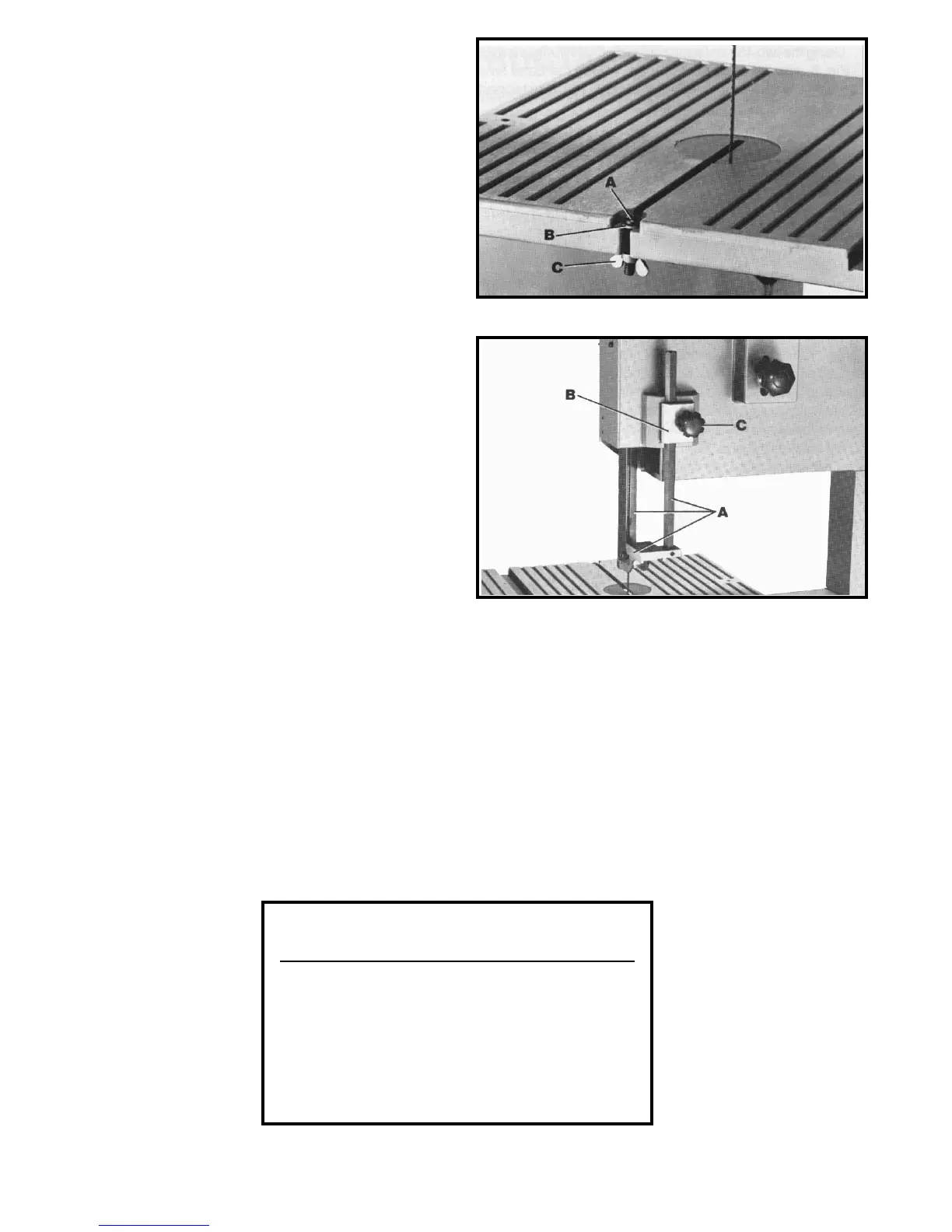

Fig. 11
Fig. 10
3. Replace screw (A) Fig. 10, flat washer (B) and wing
nut (C) that was removed in STEP 1.
ASSEMBLING UPPER
BLADE GUIDE ASSEMBLY
1. Fasten the upper blade guide assembly (A) Fig. 11,
to the side of the band saw using the lock plate (B) and
lock screw (C) as shown.
Fig. 12
TOTAL LENGTH OF
CORD IN FEET
GAGE OF EXTENSION
CORD TO USE
16 AWG
16 AWG
14 AWG
12 AWG
0-25
26 - 50
51 - 100
101 - 150
EXTENSION CORDS
Use proper extension cords. Make sure your extension cord is in good
condition and is a 3-wire extension cord which has a 3-prong ground-
ing type plug and a 3-pole receptacle which will accept the tools plug.
When using an extension cord, be sure to use one heavy enough to
carry the current of the band saw. An undersized cord will cause a
drop in line voltage resulting in loss of power and overheating. Fig. 12,
shows the correct size to use depending on cord length and
nameplate ampere rating. If in doubt, use the next heavier gage. The
smaller the gage number, the heavier the cord.
