Delta 28-206 - Model 28-276 Open Stand Parts

10

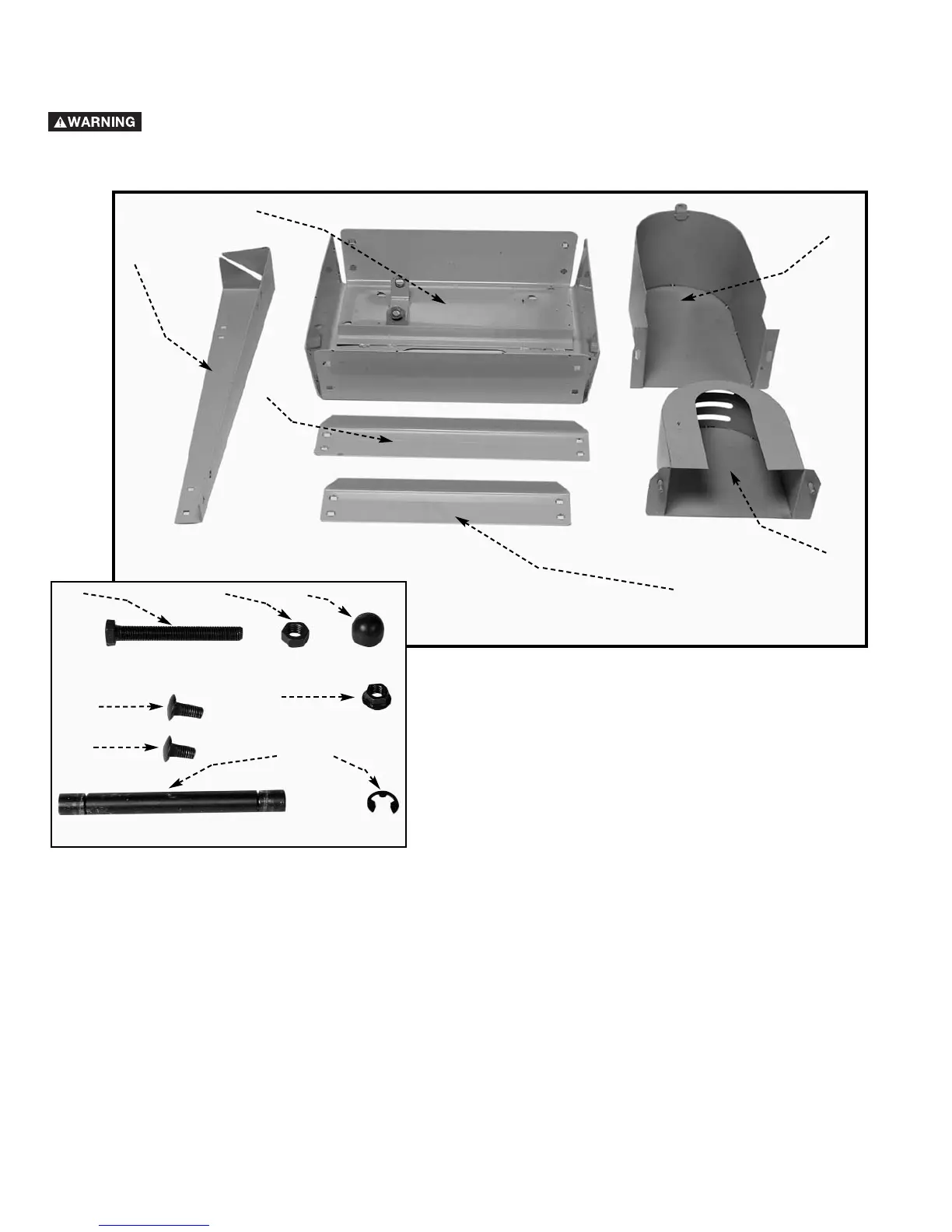

MODEL 28-276 OPEN STAND PARTS
1. Legs (4)
2. Stand Top
3. Long Brace (2)
4. Short Brace (2)
5. Upper Pulley Guard
6. Lower Pulley Guard
7. M8x1.25x80mm Hex Head Screw
8. M8x1.25 Hex Nut
9. Dampening Cap
10. M8x1.25x16mm Round Head Flange Screw (4)
11. M8x1.25x16mm Carriage Head Screw (32)
12. M8x1.25 Hex Flange Nut (38)
13. Shaft (for attaching motor plate to top of stand)
14. 9mm C ring (2)
1
2
3
4
5
6
7 8
9
10
11
12
13
14
FOR YOUR OWN SAFETY, DO NOT CONNECT THE MACHINE TO THE POWER SOURCE UNTIL
THE MACHINE IS COMPLETELY ASSEMBLED AND YOU READ AND UNDERSTAND THE ENTIRE
INSTRUCTION MANUAL.
