9

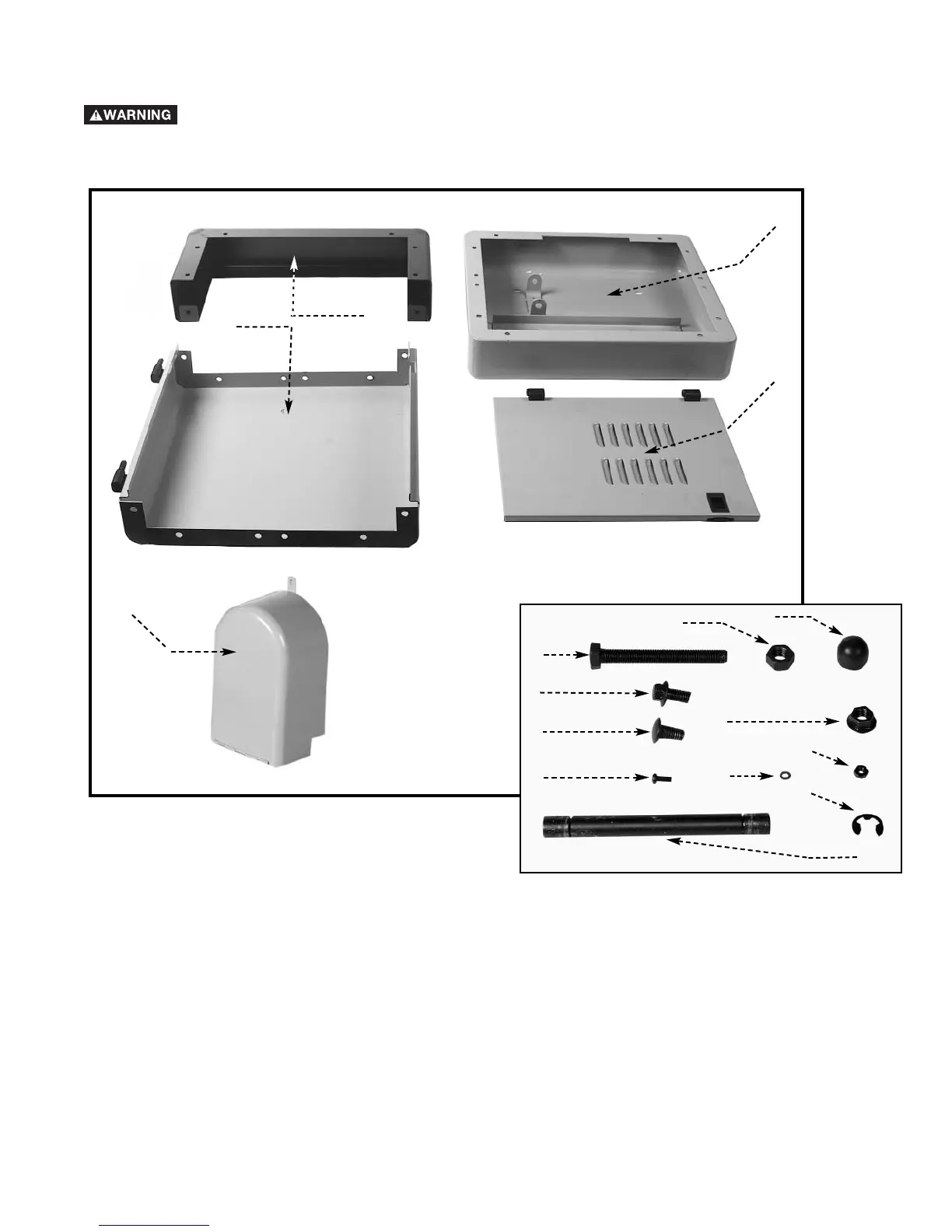

MODEL 28-206 ENCLOSED STAND PARTS
1. Base (2)
2. Side (2)
3. Stand Top
4. Door (2)
5. Pulley Guard
6. M8x1.25x100mm Hex Head Screw
7. M8x1.25x16mm Hex Head Flange Screw (26)
8. M8x1.25x16mm Round Head Flange Screw (4)
9. M5x0.8x10mm Pan Head Screw (2)
10. Shaft (for attaching motor plate to top of stand)
11. M8x1.25 Hex nut
12. Dampening Cap
13. M8x1.25 Hex Flange Nut (30)
14. 5mm Flat Washer (2)
15. M5x0.8 Hex Nut (2)
16. 9mm C ring (2)
1
2
3
4
6
7
8
9
10
11
12
13
14
15
16
5
FOR YOUR OWN SAFETY, DO NOT CONNECT THE MACHINE TO THE POWER SOURCE UNTIL
THE MACHINE IS COMPLETELY ASSEMBLED AND YOU READ AND UNDERSTAND THE ENTIRE
INSTRUCTION MANUAL.
