8
UNPACKING AND CLEANING
Carefully unpack the machine and all loose items from the shipping container(s). Remove the protective coating from all unpainted
surfaces. This coating may be removed with a soft cloth moistened with kerosene (do not use acetone, gasoline or lacquer thinner for
this purpose). After cleaning, cover the unpainted surfaces with a good quality household floor paste wax.

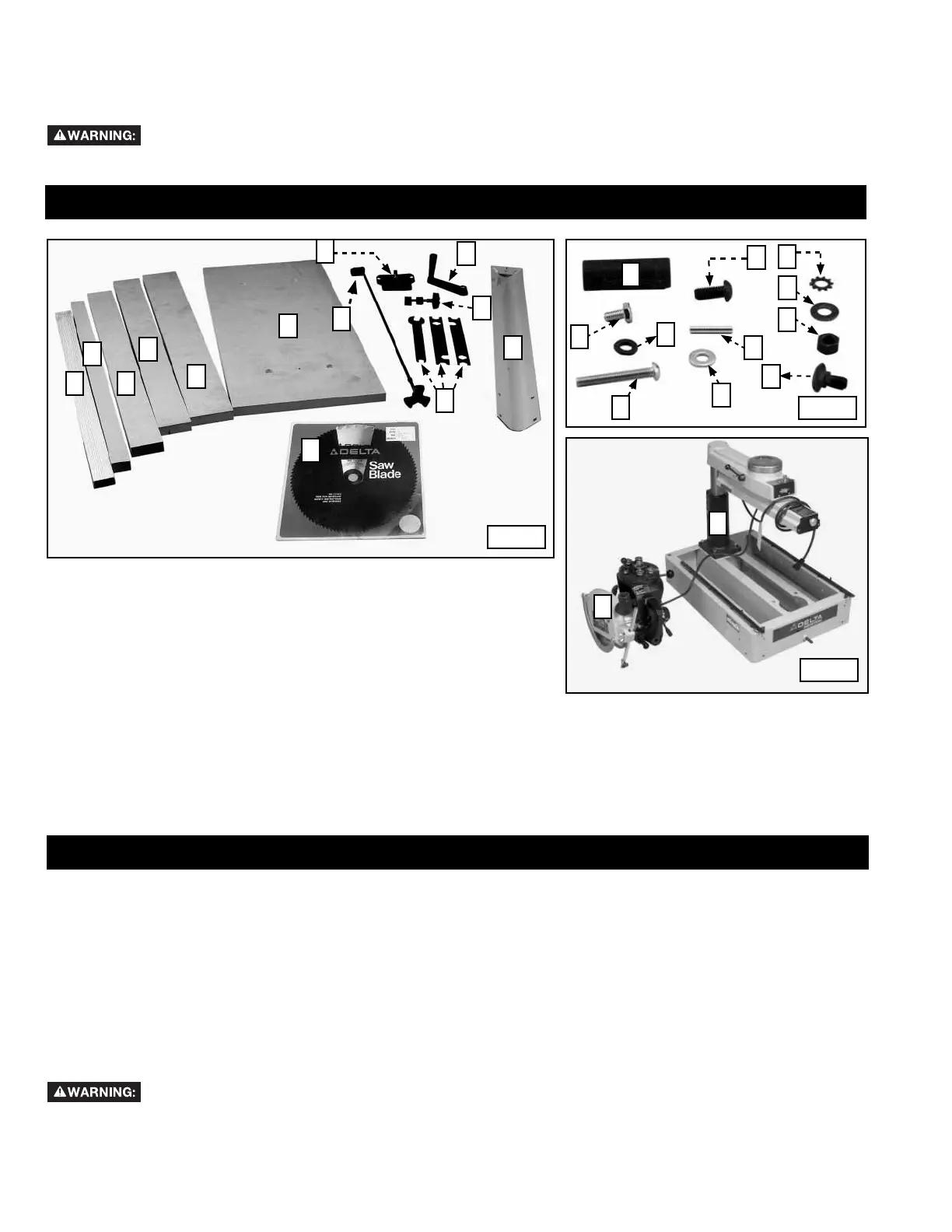

CARTON CONTENTS
A. Fence
B. Table boards (4)
C. Table
D. Table mounting bracket (2)
E. Track arm end cap and stop
F. Overarm elevating handle
G. Cutting head clamp
H. Wrenches
I. Legs (4)
J. 12" blade
K. Special wrench socket
L. 1/4-20X1/2" hex head cap screw
M. 5/16" lock washer (2)
N. Round head screw (4)
O. 5/16"-18x
3
/4" button head screws
P. Sheer pin
Q. 1/4" flat washer
R. 5/16" flat washer
S. 5/16" flat washer
T. 5/16" hex nut
U. 5/16" carriage head bolt
V. Cuttinghead assembly
W. Base and overarm assembly
A
B
B
B
B
C
E
G
H
I
J
D
F
K
R
S
T
U
P
Q
N
M
L
O
V
W
ASSEMBLY
ASSEMBLY TOOLS REQUIRED
Blade wrenches (supplied)
1/2” and 3/8” open end or socket wrenches (not included)
5/16" hex wrench (not included)
Flat screwdriver and hammer (not included)
ASSEMBLY TIME ESTIMATE
Assembly for this machine takes approximately 2-3 hours.
To reduce the risk of injury, do not connect the machine to the power source until the machine is completely
assembled and you read and understand the entire instruction manual.
Shock Hazard. To reduce the risk of serious personal injury, turn unit off and disconnect machine from power
source before attempting to move it, change accessories or make any adjustments.
Fig. 2
Fig. 1
Fig. 3
