Delta 37-070 - Assembly Instructions; Assembling the Fence System

8

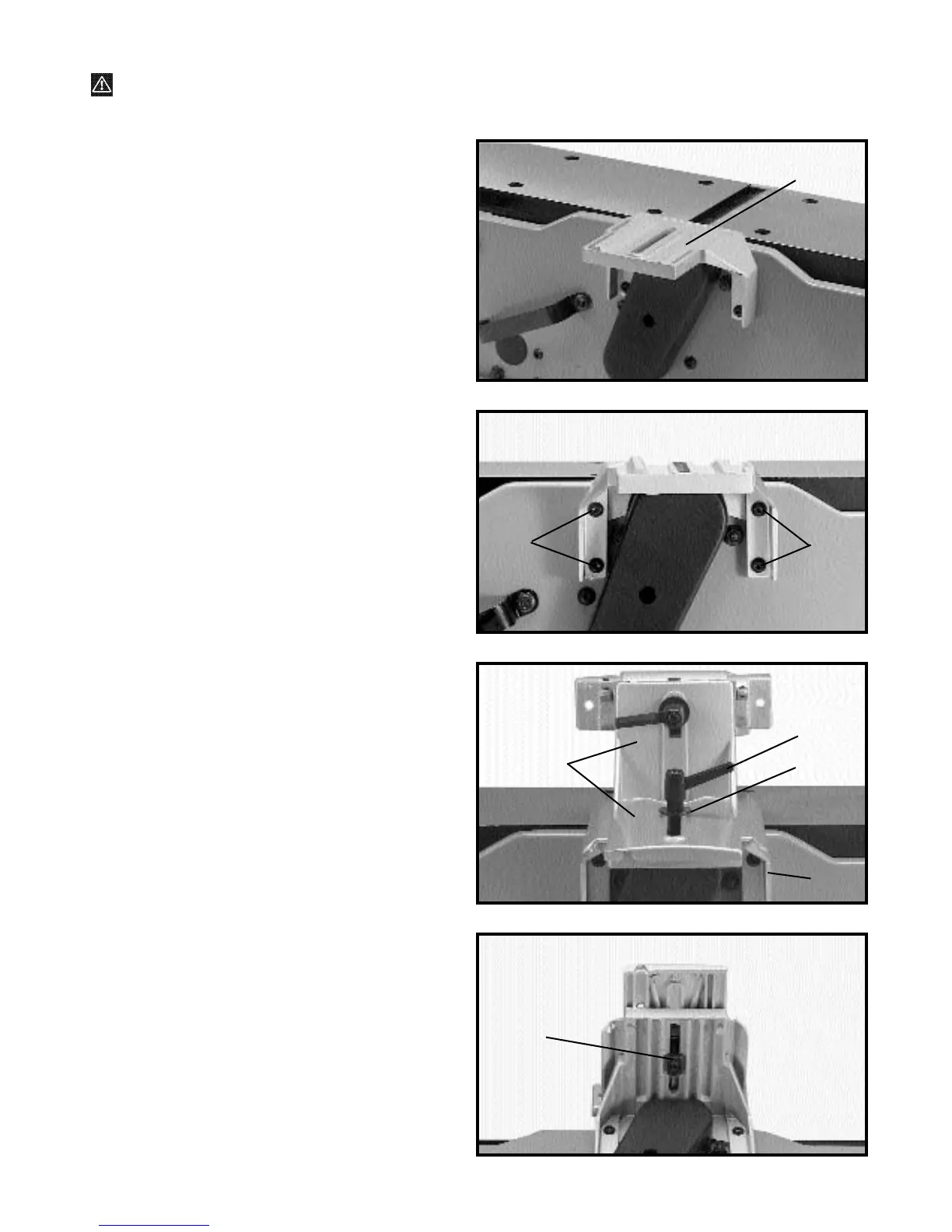

Fig. 5
Fig. 6
Fig. 7
Fig. 8
2. Assemble the fence sliding bracket (C) Fig. 7, to
mounting bracket (A) using the lockhandle (D), flat
washer (E) and special nut (F) Fig. 8.
ASSEMBLING FENCE
1. Assemble the fence mounting bracket (A) Fig. 5, to
the jointer base using the four 5/8" long socket button
head screws (B) Fig. 6.
ASSEMBLY INSTRUCTIONS
WARNING: FOR YOUR OWN SAFETY, DO NOT CONNECT THE TOOL TO THE POWER
SOURCE UNTIL THE MACHINE IS COMPLETELY ASSEMBLED AND YOU HAVE READ AND
UNDERSTAND THE ENTIRE OWNERS MANUAL.
A
B
B
C
D
E
A
F
