14
ADJUSTING
DEPTH-OF-CUT
The jointer can be set to cut any depth from a very thin
shaving to 3/8 . If a cut deeper than 3/8 is desired, the
cut should be made in three or more p asses.
1. MAKECERTAIN THE MACHINE IS DISCONNECT-
EDFROMTHEPOWERSOURCE.

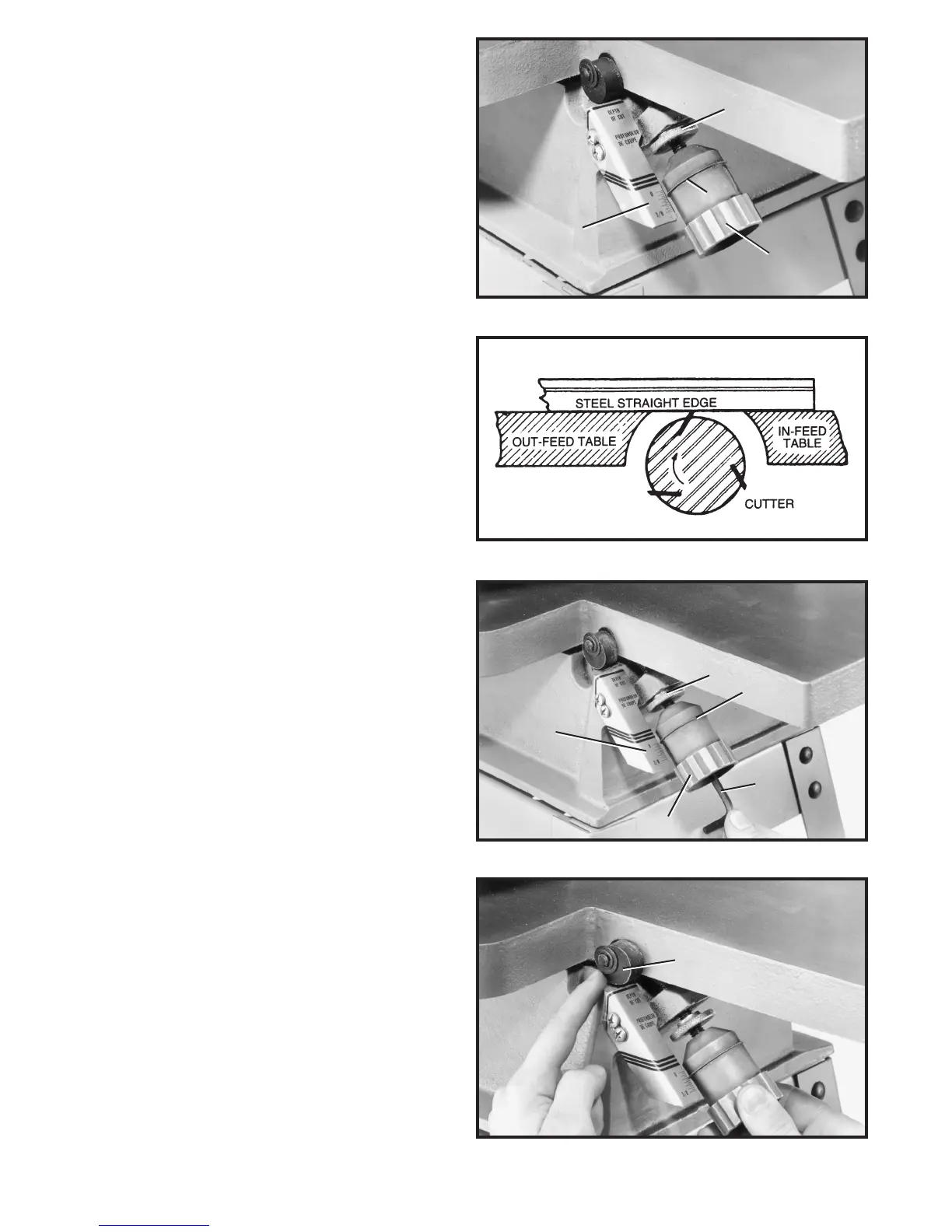

2. To adjust the depth-of-cut, loosen lock knob (B) Fig.
32. T urn adjustment knob (A) counterclockwise to lower
the infeed t able or clockwise to raise the infeed t able.
The ring (C) Fig. 32, indicates the depth-of-cut on scale
(D). T ighten lock knob (B), af ter adjustment is made.
3. To check if the ring (C) Fig. 32, is aligned correctly to
the depth-of-cut scale (D), place a straight edge on the
out feed t able and extend it over the infeed t able as
shown in Fig. 33.
4. Loosen locking knob (B) Fig. 34, and raise the infeed
table by turning adjustment knob (A) clockwise until the
infeed t able touches the straight edge. The ring (C) Fig. 34,
should line up with zero on the depth-of-cut scale (D).
5. If the ring on the adjustment knob does not line up
with zero on the depth-of-cut scale, make the following
adjustments:
[a] Loosen set screw with wrench (E) inside adjust-
ment knob (A) Fig. 34, as shown.
[b] T urn knob (A) Fig. 34, clockwise or counterclock-
wise as necessary until the ring (C) lines up with
the depth-of-cut scale (D).
[c] T ighten set screw that was loosened inside
adjustment knob in STEP [a].
6. IMPORTANT:The jointer features an automatic
table stop (F) Fig. 35, which does not allow the infeed
table to be lowered by more than 1/8 increments. This
also act s as a safety feature should the operator fail to
lock the t able af ter setting the depth-of-cut. If it is ever
necessary to lower the infeed t able more than 1/8 , the
stop (F) must be pushed upward while adjusting the t able
height.
Fig. 32
Fig. 33
Fig. 34
Fig. 35
B
C
A
D
B
C
E
A
D
F
