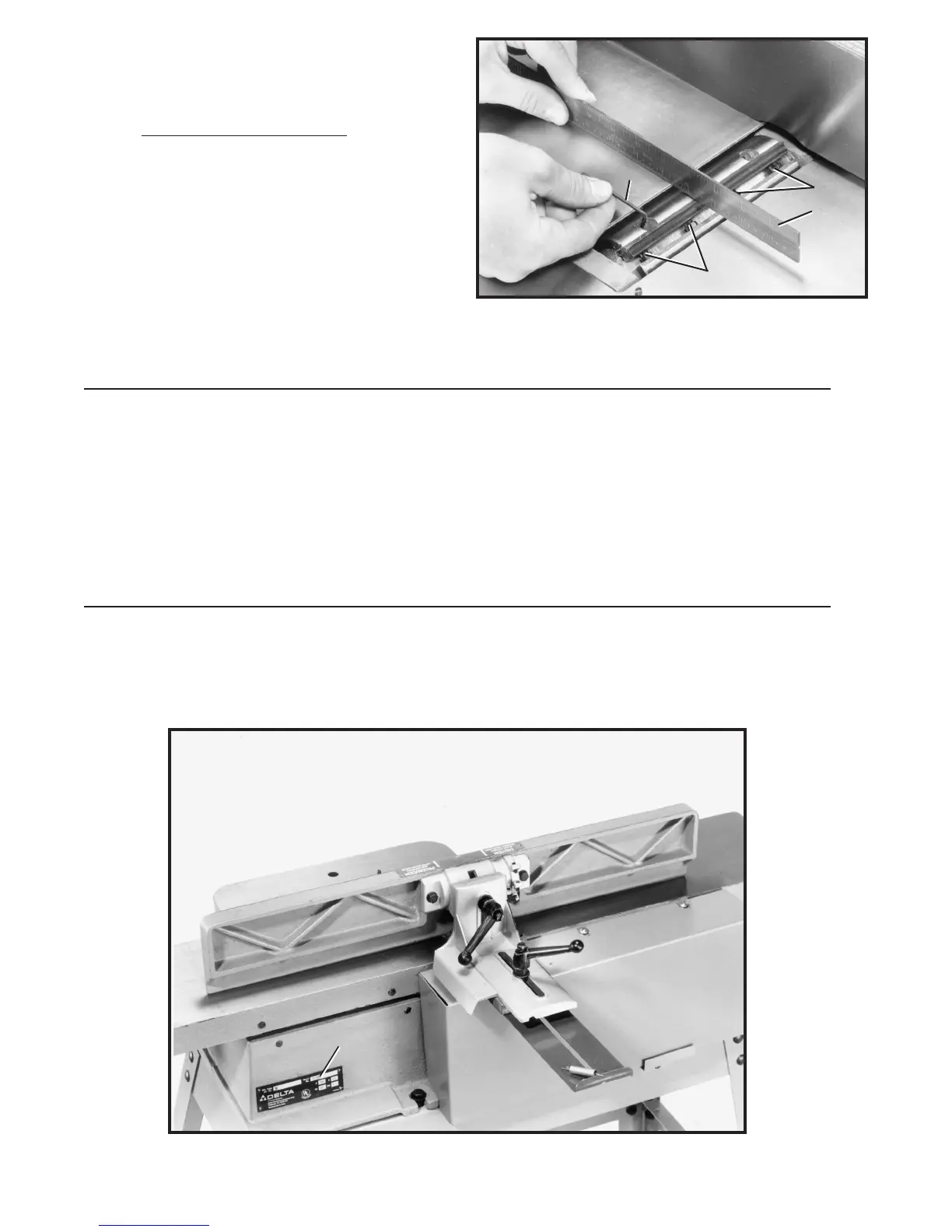

9. Lower the infeed t able and place a straight edge (J)
Fig. 53, on the out feed t able extending over the cutter -
head as shown.
10. Rot ate the cutterhead by hand until the knife is at it s
highest point at each end of the cutterhead . To raise the
knife, use wrench (E) Fig. 53, and turn raising screw
clockwise until the knife just touches the straight edge (J)
on each end and center of the cutterhead when the knife
is at it s highest point. When you are cert ain the knife is
adjusted properly, tighten the four locking screws (B) by
turning them counterclockwise.
11. Adjust the remaining two knives in the same manner.
W ARNING: MAKE CERTAIN THAT AL L KNIVES A R E
SECURELY FASTENED IN CUTTERHEAD BEFORE
TURNING ON POWER.
12. Replace cutterhead guard.
Fig. 53
BLADE CARE
Gum and pitch which collect on the blades causes excessive friction as the work progresses, resulting
in blade overheating, less ef ficient cutting, and reduced blade life. DISCONNECT THE MACHINE
FROM THE POWERSOURCE and carefully wipe the blades clean using Gum and Rust Remover.
In time, gum and pitch may appear on the t able and fence and other p art s of the jointer , resulting in
reduced ef ficiency and accuracy. The use of a good quality p aste wax will aid in preventing gum and
pitch from accumulating on the machine.
Fig. 54
IDENTIFICATION PLATE
The identification plate (A) Fig. 54, is located at the rear of the jointer , as shown. Record the serial num -
ber onto the front of this manual for future reference.
E
B
J
B
A
