Delta 46-700 - Headstock Spur Center; Tailstock Cup Center

HEADSTOCK SPUR CENTER

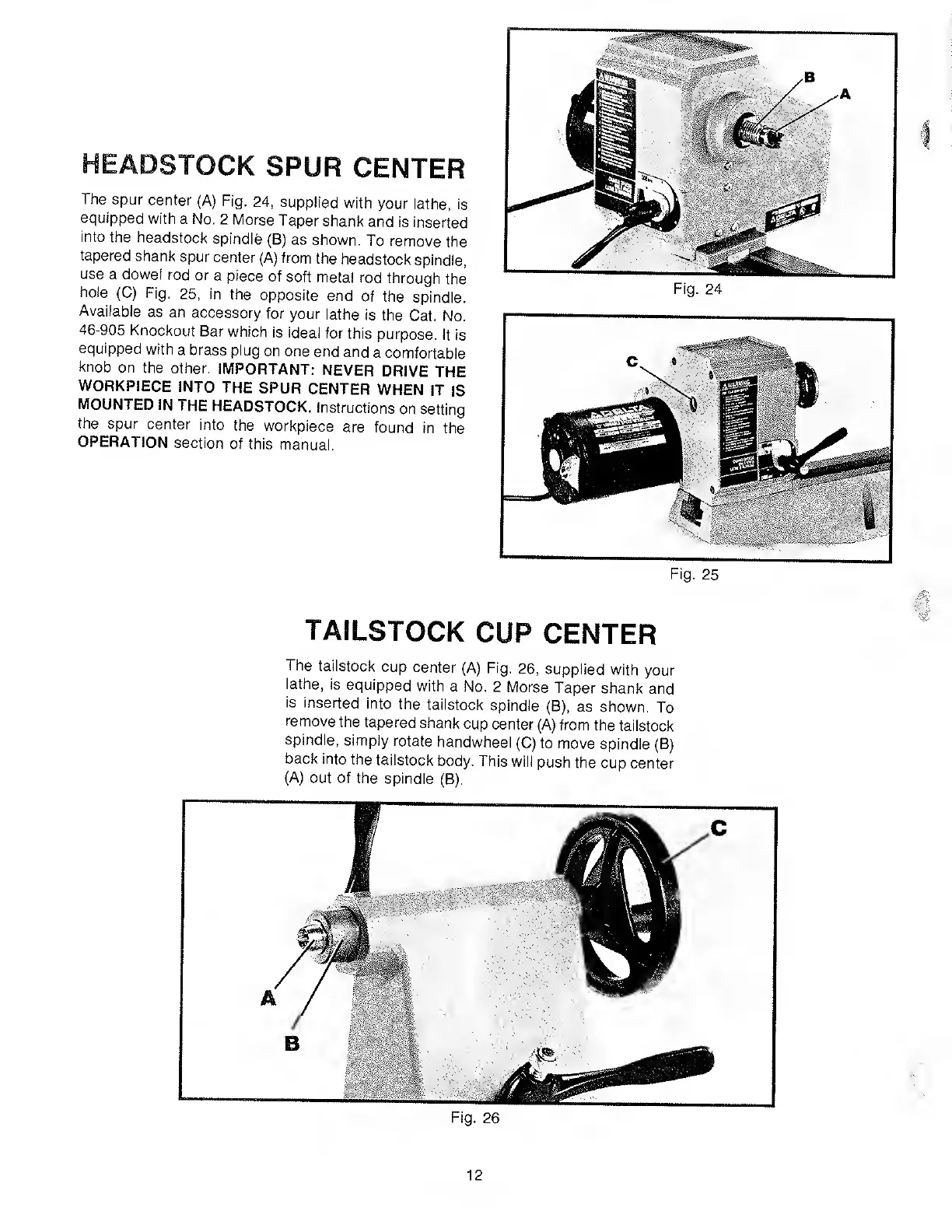

The spur center (A) Fig. 24, supplied with your lathe, is
equipped with a No. 2 Morse Taper shank and is inserted
into the headstock spindlfe (B) as shown. To remove the
tapered shank spur center (A) from the headstock spindle,
use a dowel rod or a piece of soft metal rod through the
hole (C) Fig. 25, in the opposite end of the spindle.
Available as an accessory for your lathe is the Cat. No.
46-905 Knockout Bar which is ideal for this purpose. It is
equipped with a brass plug on one end and a comfortable
knob on the other. IMPORTANT: NEVER DRIVE THE
WORKPIECE INTO THE SPUR CENTER WHEN IT IS
MOUNTED IN THE HEADSTOCK. Instructions on setting
the spur center into the workpiece are found in the
OPERATION section of this manual.
TAILSTOCK CUP CENTER
The tailstock cup center (A) Fig, 26, supplied with your
lathe, is equipped with a No. 2 Morse Taper shank and
is inserted into the tailstock spindle (B), as shown. To
remove the tapered shank cup center (A) from the tailstock
spindle, simply rotate handwheel (C) to move spindle (B)
back into the tailstock body. This will push the cup center
(A) out of the spindle (B).
I
B
Fig. 26
Fig. 25
12
