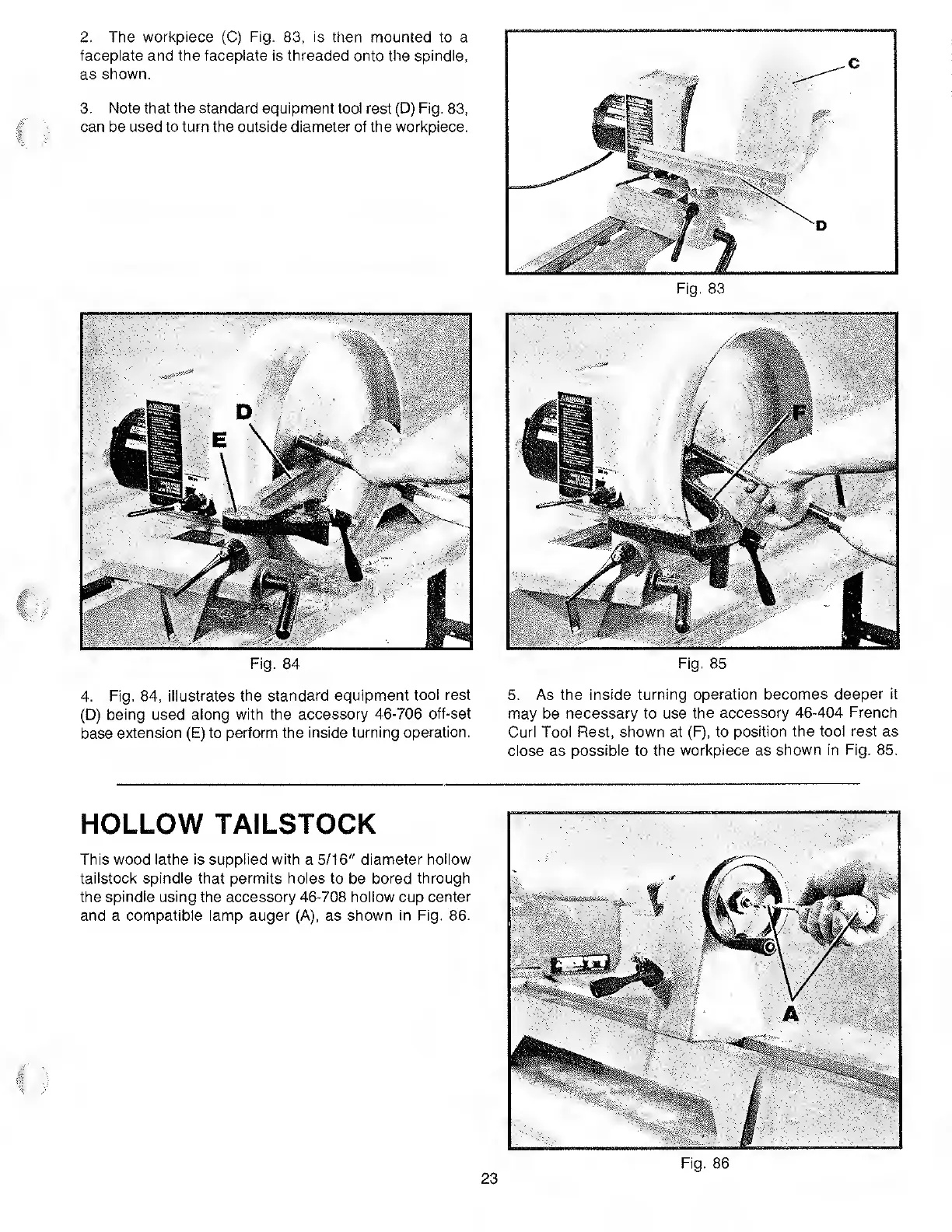

2. The workpiece (C) Fig. 83, is then mounted to a
faceplate and the faceplate is threaded onto the spindle,
as shown.
3. Note that the standard equipment tool rest (D) Fig. 83,
can be used to turn the outside diameter of the workpiece.
Fig. 83
Fig. 84
4. F ig. 84, illustrates the standard equipment tool rest
(D) being used along with the accessory 46-706 off-set
base extension (E) to perform the inside turning operation.
Fig. 85
5. A s the inside turning operation becomes deeper it
may be necessary to use the accessory 46-404 French
Curl Tool Rest, shown at (F), to position the tool rest as
close as possible to the workpiece as shown in Fig. 85.
HOLLOW TAILSTOCK
This wood lathe is supplied with a 5/16" diameter hollow
taiistock spindle that permits holes to be bored through
the spindle using the accessory 46-708 hollow cup center
and a compatible lamp auger (A), as shown in Fig. 86.
23
Fig. 86
