Delta AC MAX User Manual

v1.0.0
18

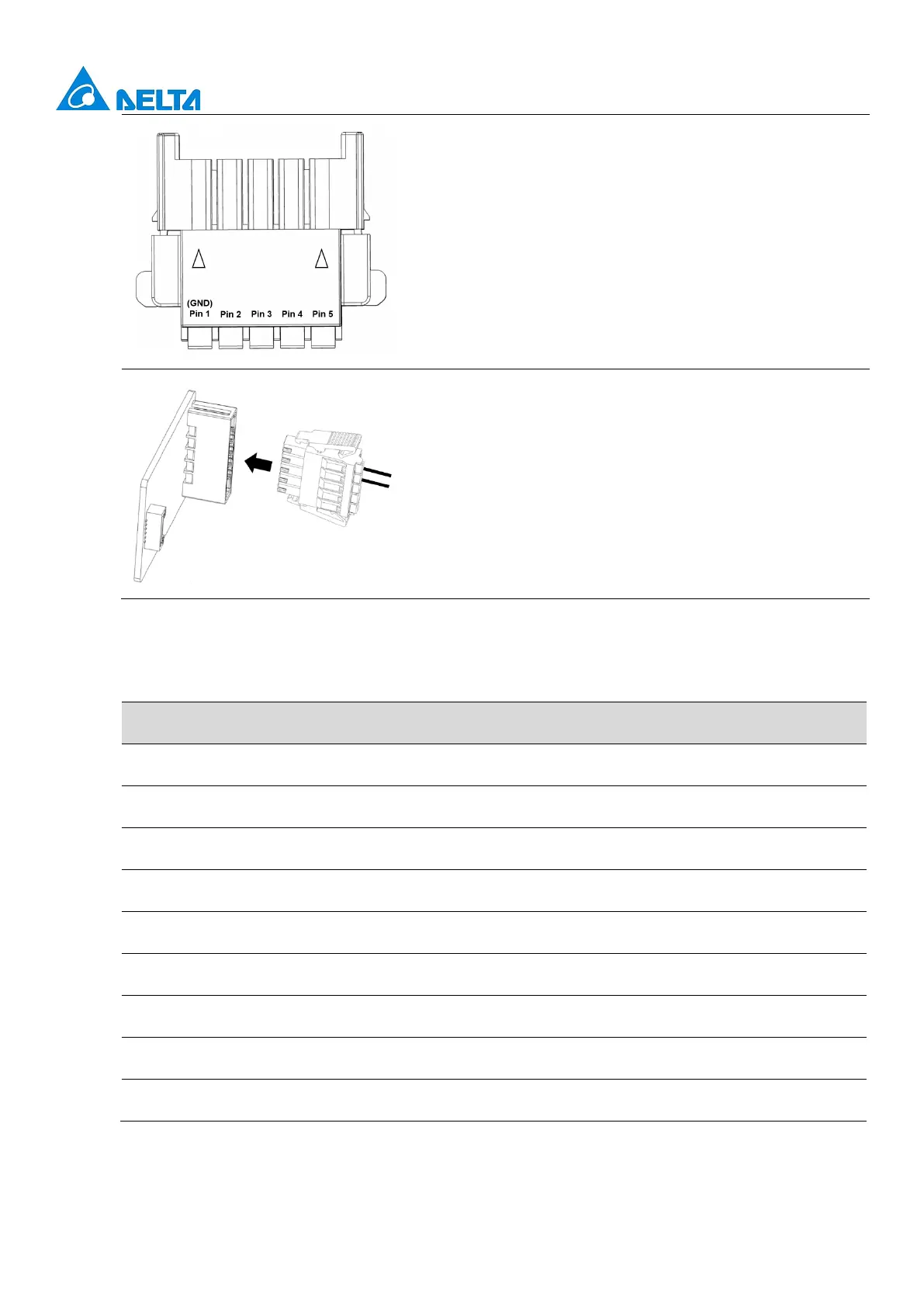

4. Connect the signal cable according to pin definition* and
must connect to the ground(Pin 1).
Wire range of signal cable: 0.2~1.5
mm
2
.
5. Assemble the connector
2.2.7.1 Pin definition
User can connect the external component with single cable or four cables based on following table.
Pin 2 Pin 3 Pin 4 Pin 5 Power limitation
No limitation
X 12.5%
X 25% limitation
X X 37.5% limitation
X 50% limitation
X X 62.5% limitation
X X 75% limitation
X X X 87.5% limitation
X Stop charging
