Chapter 9 Ethernet Specification and Operation

9-43

9_

9.5.2.1

Produced TAG

Creating a Produced TAG

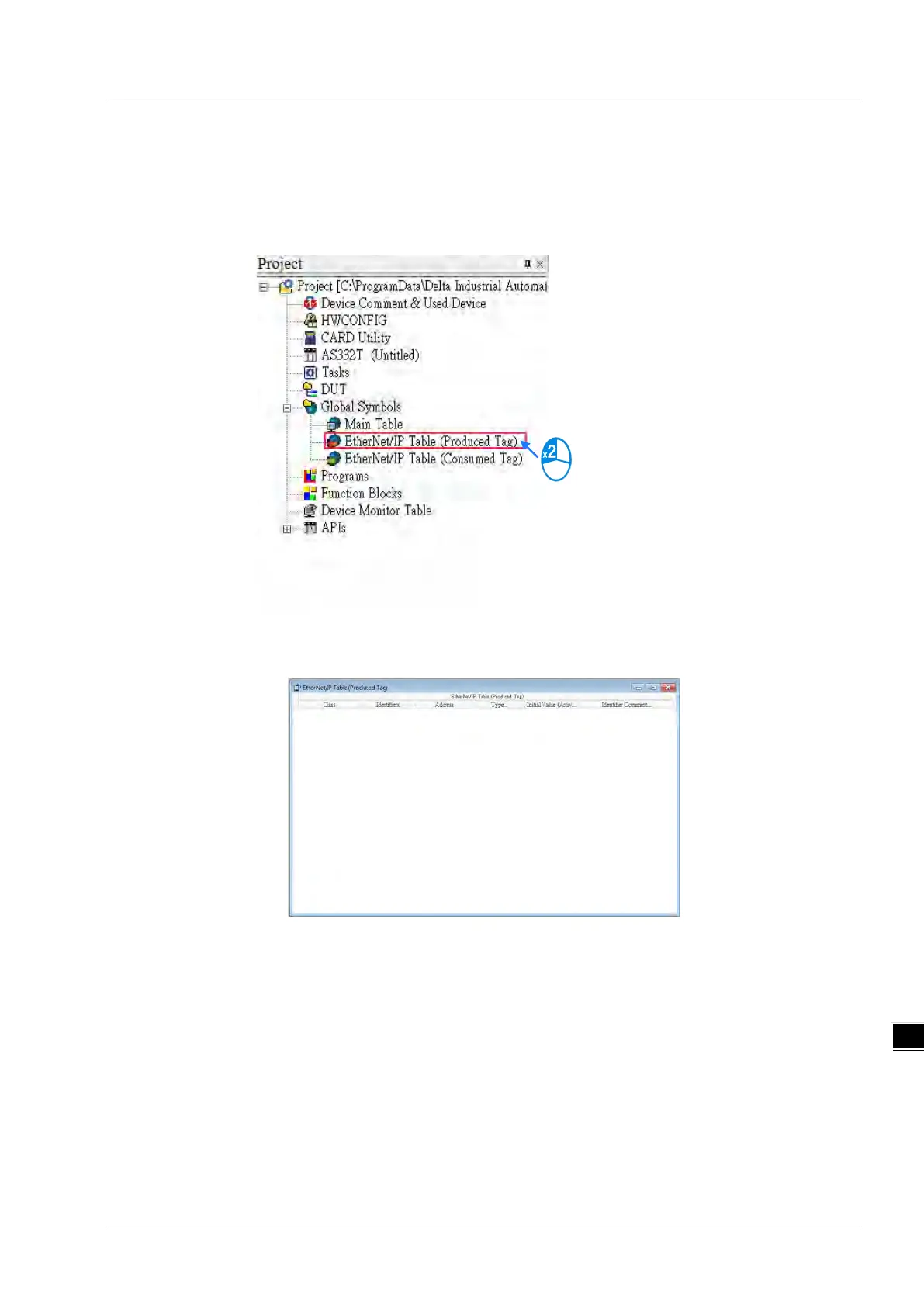

1. In ISPSoft, in the Project tree, expand Global Symbols to see EtherNet/IP Table (Produced Tag).

2. Double-click EtherNet/IP Table (Produced TAG) to create a Produced TAG.
