Chapter 10 CANopen Function and Operation
10-5
10
10.2 Installation and Network Topology
This section introduces the physical dimensions of AS-FCOPM function card, the HWCONFIG settings of the
AS Series, the CAN interface, the CANopen network framework, and the maximum communication distance.

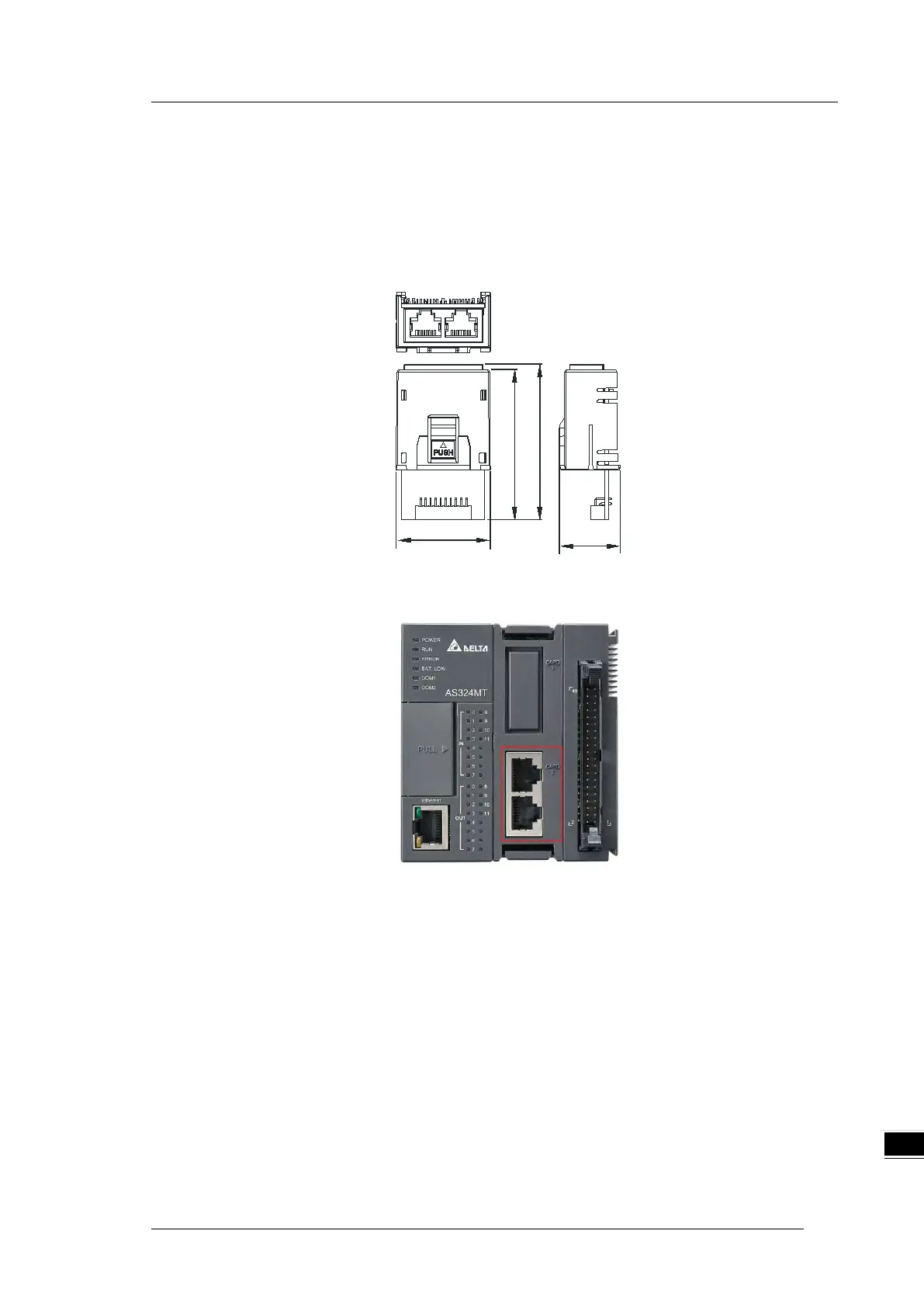

10.2.1 The Dimensions of AS-FCOPM
61.3
37
59.3
23.9
Unit: mm
10.2.2 AS-FCOPM on AS300 PLC
Note: the AS-FCOPM card can only be installed in the Card 2 slot in the AS series
