ASDA-A2 Chapter 3 Wiring
Revision February, 2017 3-69

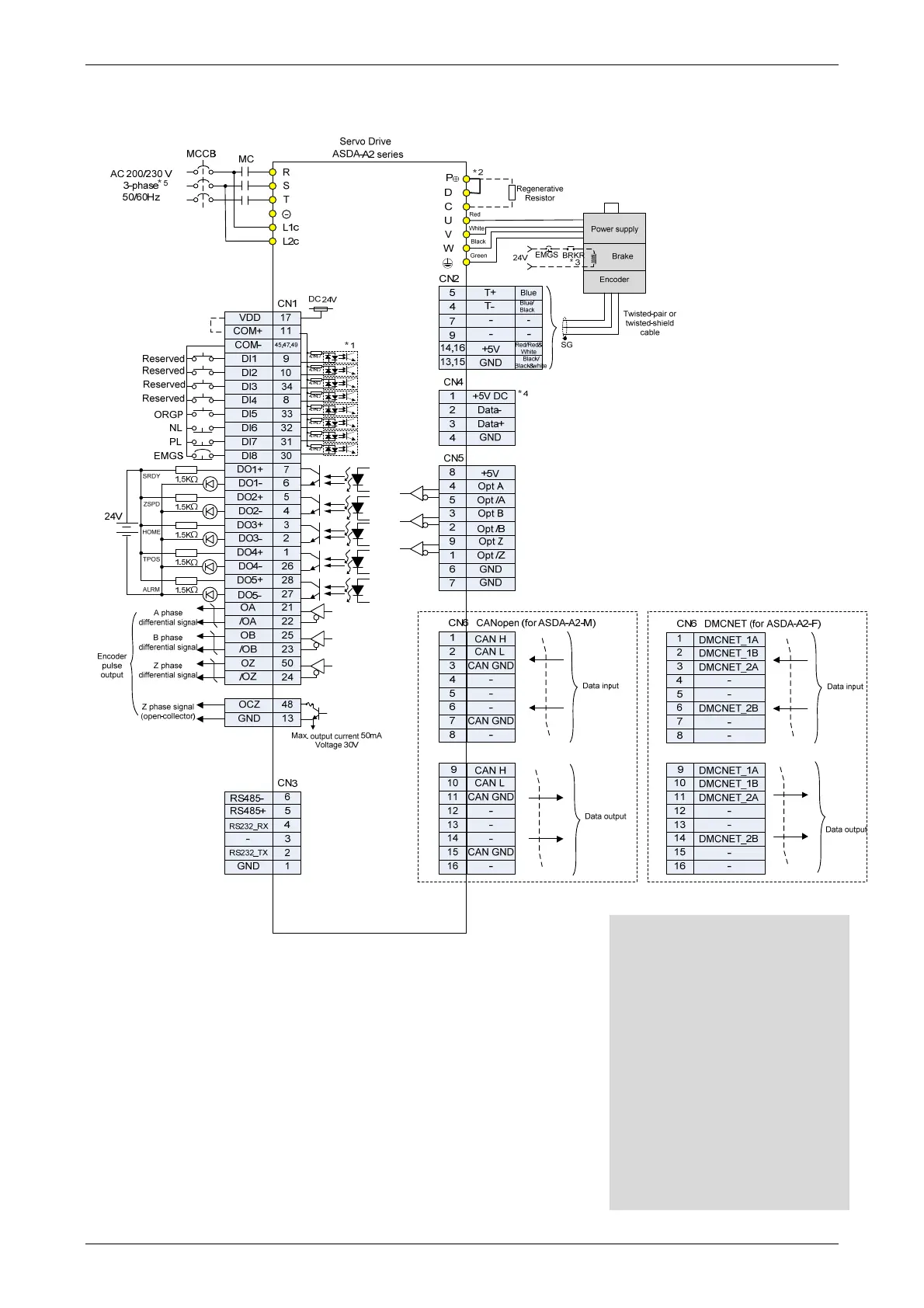

3.12.5 Communication Mode
Please note:
*1 Please refer to C9 ~ C12 wiring
diagrams (SINK / SOURCE mode)
in section 3.4.4.
*2 400W and below drives do not
provide built-in regenerative
resistor.
*3 The coil of brake has no polarity.
*4 For USB connection. It is used to
connect to personal computer or
notebook.
*5 Single -phase connections are for
servo drives 1.5kW and below only.
*6 A2-F only supports DMCNET
mode.
To Next Page
