ASDA-A2 Chapter 8 Parameters
Revision February, 2017 8-51

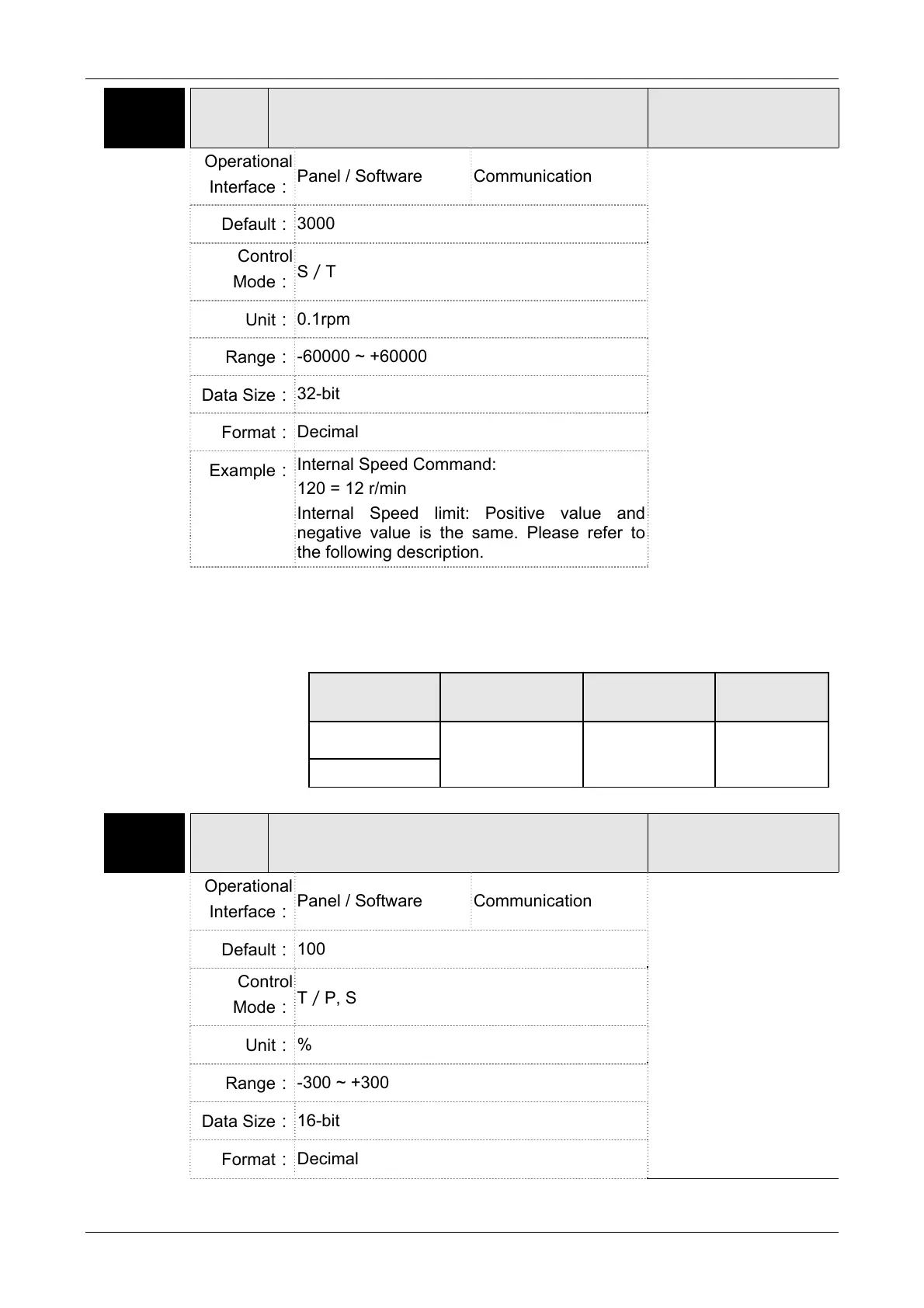

P1-11 SP3
Internal Speed Command 3／Internal Speed
Limit 3
Address: 0116H
0117H
Operational
Interface：
Panel / Software Communication
Related Section:
6.3.1
Default：
3000
Control
Mode：
S／T
Unit：
0.1rpm
Range：
-60000 ~ +60000
Data Size：
32-bit
Format：
Decimal
Example：
Internal Speed Command:
120 = 12 r/min
Internal Speed limit: Positive value and
negative value is the same. Please refer to
the following description.
Settings：
Internal Speed Command 3: The setting of the third internal speed
command
Internal Speed Limit 3: The setting of the third internal speed limit
Example of inputting internal speed limit:
Speed limit
setting of P1-11
Allowable Speed
Range
Forward Speed
Limit
Reverse
Speed Limit
1000
-100 ~ 100 r/min 100 r/min -100 r/min
-1000
P1-12 TQ1
Internal Torque Command 1／Internal Torque
Limit 1
Address: 0118H
0119H
Operational
Interface：
Panel / Software Communication
Related Section:
6.4.1
Default：
100
Control
Mode：
T／P, S
Unit：
%
Range：
-300 ~ +300
Data Size：
16-bit
Format：
Decimal
