ASDA-A2 Chapter 8 Parameters
Revision February, 2017 8-207

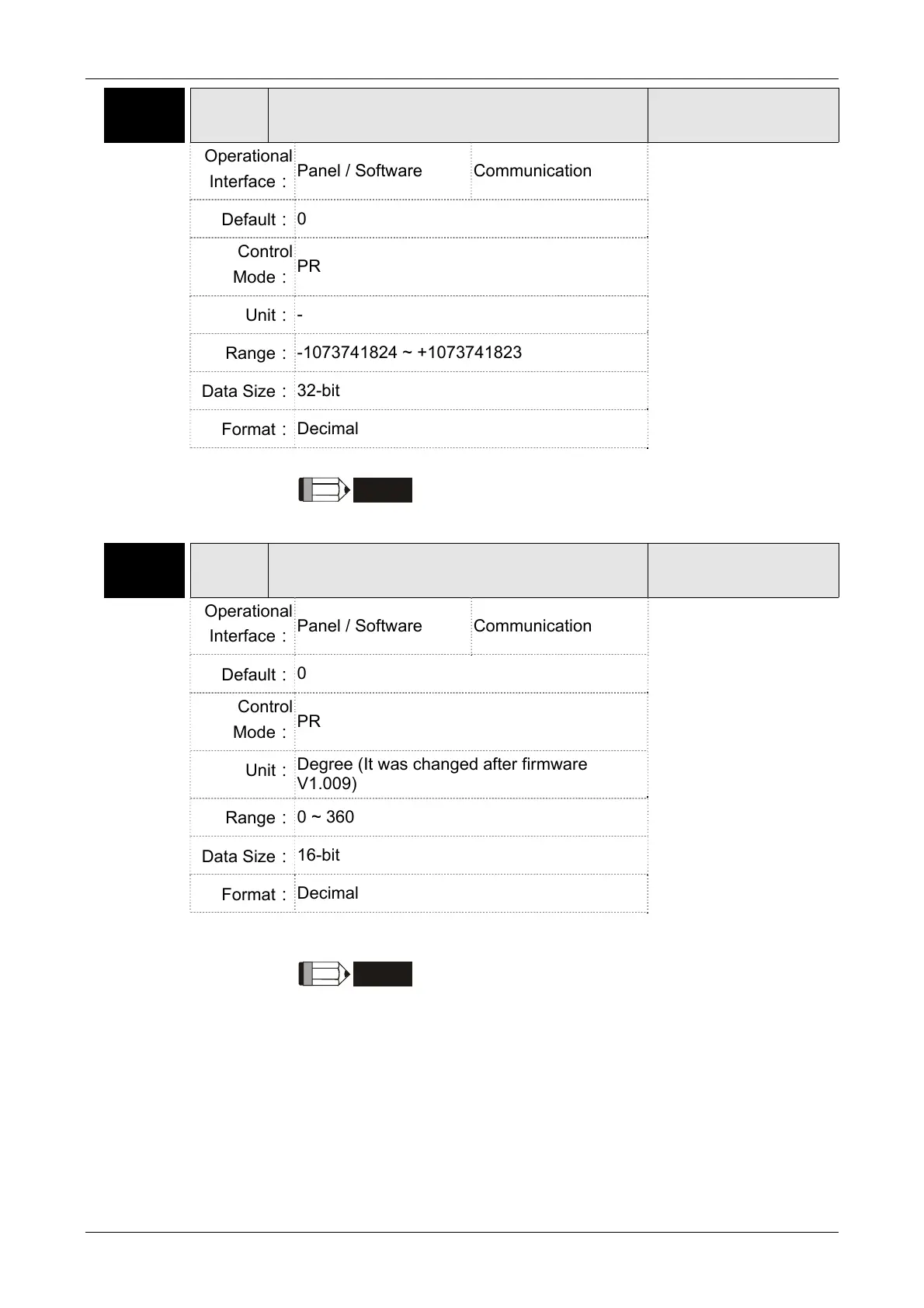

P5-89 ECRD E-CAM: Information of Disengaging Time
Address: 05B2H
05B3H
Operational
Interface：
Panel / Software Communication
Related Section:
7.11
Default：
0
Control
Mode：
PR
Unit：
-
Range：
-1073741824 ~ +1073741823
Data Size：
32-bit
Format：
Decimal
Settings：
(Please refer to the definition of P5-88 U setting value 2)
NOTE
A2L does not support E-Cam function.
P5-90 CMAP
E-CAM: AREA No.＋The Point of DO ON
Address: 05B4H
05B5H
Operational
Interface：
Panel / Software Communication
Related Section:
7.11
Default：
0
Control
Mode：
PR
Unit：
Degree (It was changed after firmware
V1.009)
Range：
0 ~ 360
Data Size：
16-bit
Format：
Decimal
Settings：
When E-cam is engaged, set the start angle of DO output (DO.
CAM_AREA).
NOTE
A2L does not support E-Cam function.
