ASDA-B2 Chapter 10 Specifications
Revision May, 2018 10-21

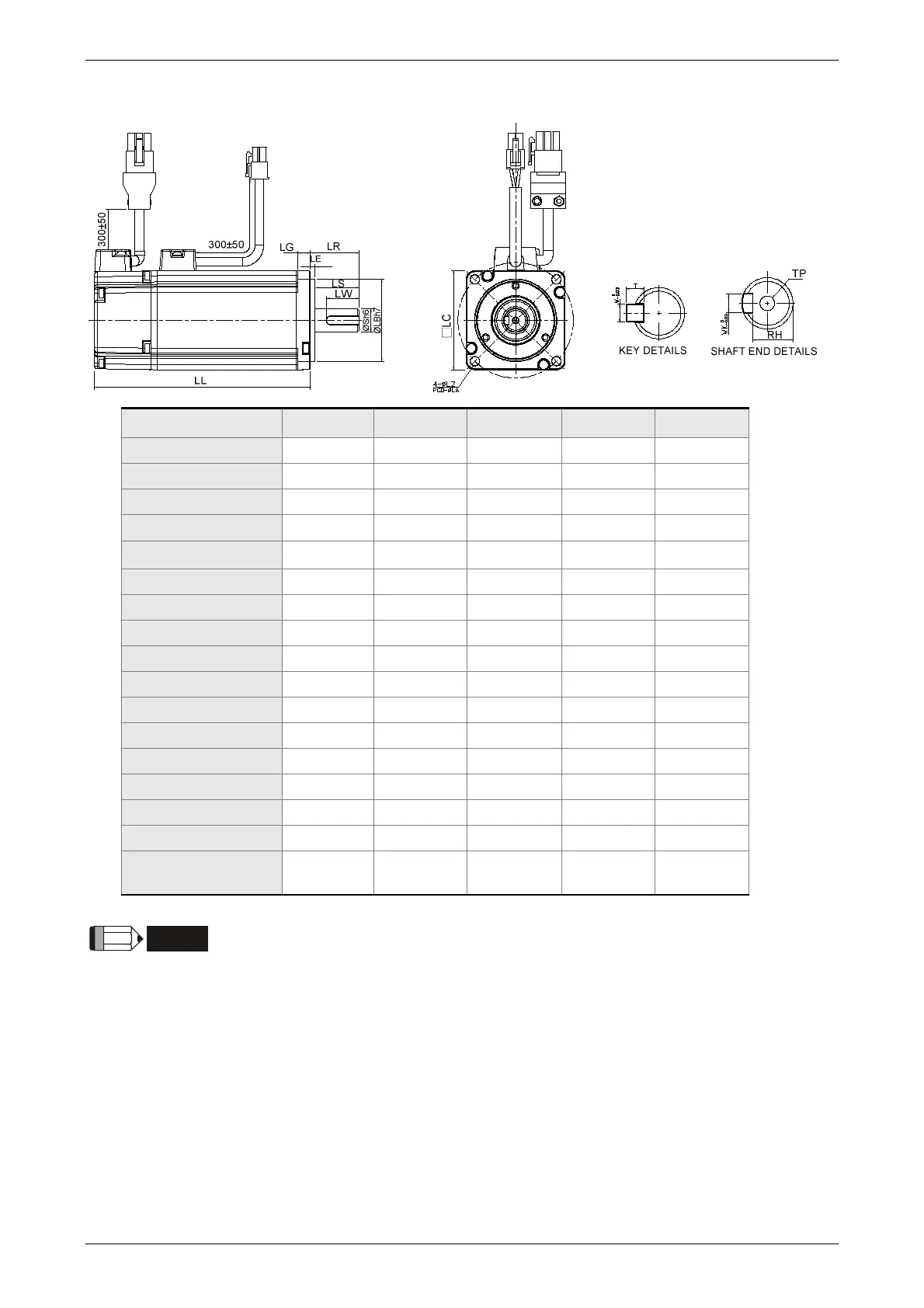

Motor Frame Size: 86 mm and below Models (Units: mm)
Model
C△0804□7 C△0804□S C△0807□H C△0907□S C△0910□S
LC 80 80 80 86 86
LZ 6.6 6.6 6.6 6.6 6.6
LA 90 90 90 100 100
S
)
(
.
14
0
0110
+
++
+
−
−−
−
)
(
.
19
0
0130
+
++
+
−
−−
−
)
(
.
19
0
0130
+
++
+
−
−−
−
)
(
.
16
0
0110
+
++
+
−
−−
−
)
(
.
16
0
0110
+
++
+
−
−−
−
LB
)
(
.
70
0
0300
+
++
+
−
−−
−
)
(
.
70
0
0300
+
++
+
−
−−
−
)
(
.
70
0
0300
+
++
+
−
−−
−
)
(
.
80
0
0300
+
++
+
−
−−
−
)
(
.
80
0
0300
+
++
+
−
−−
−
LL (without brake) 112.3 138.3 151.1 130.2 153.2
LL (with brake) 152.8 178 189 161.3 184.3
LS 27 32 32 30 30
LR 30 35 35 35 35
LE 3 3 3 3 3
LG 8 8 8 8 8
LW 20 25 25 20 20
RH 11 15.5 15.5 13 13
WK 5 6 6 5 5
W 5 6 6 5 5
T 5 6 6 5 5
TP
M4
Depth 15
M6
Depth 20
M6
Depth 20
M5
Depth 15
M5
Depth 15
(1) Dimensions are in millimeters.
(2) Dimensions and weights of the servo motor may be revised without
prior notice.
(3) The boxes () in the model names represent shaft end / brake or the
number of oil seal.
(4) Please refer to Chapter 1 for the boxes (△) in the model names
(which represents encoder type).
NOTE
