Delta ASD-M-0721 Series User Manual

ASDA-M Chapter 8 Parameters
Revision December, 2014 8-89
NOTE
1）DI shared by three axes provides three functions:
a. SON-Servo On. The setting value is 0101 for a contact and
0001 for b contact.
b. ARST-Alarm reset. The setting value is 0102 for a contact
and 0002 for b contact.
c. EMGS-Emergency stop. The setting value is 0103 for a
contact and 0003 for b contact. This DI function is shared
by three axes.
2）When switching mode, if resetting the setting value of DI /DO,
the axis selection will return to its default.

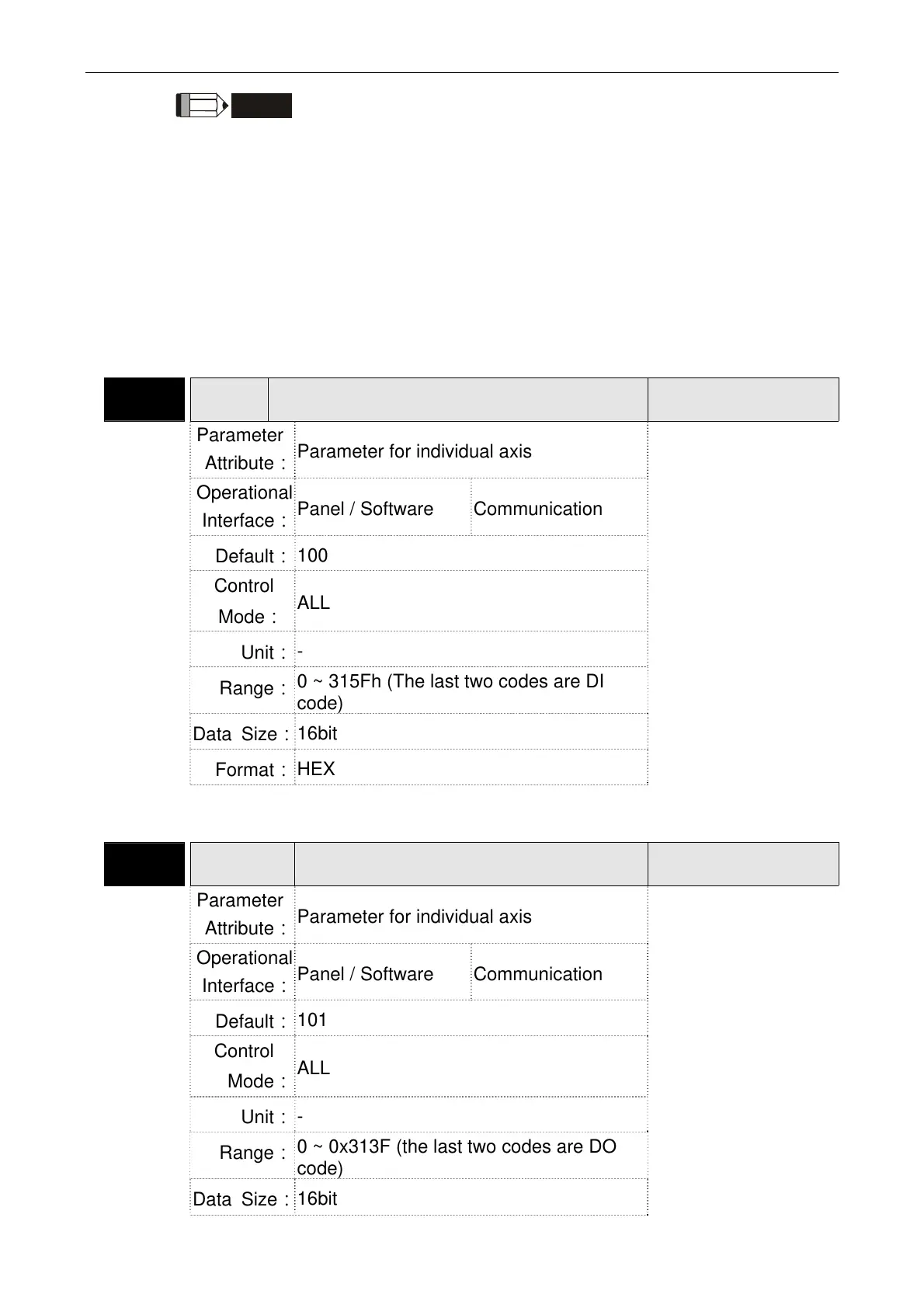

P2-17 EDI8 ED18 Functional Planning
Address: 0222H
0223H
Parameter
Attribute：
Parameter for individual axis
Related Section:
Table 8.1
Operational
Interface：
Panel / Software Communication
Default：
100
Control
Mode：
ALL
Unit：
-
Range：
0 ~ 315Fh (The last two codes are DI
code)
Data Size：
16bit
Format：
HEX
Settings：
Please refer to the description of P2-16.
P2-18 DO1 DO1 Functional Planning
Address: 0224H
0225H
Parameter
Attribute：
Parameter for individual axis
Related Section:
Table 8.2
Operational
Interface：
Panel / Software Communication
Default：
101
Control
Mode：
ALL
Unit：
-
Range：
0 ~ 0x313F (the last two codes are DO
code)
Data Size：
16bit
