Chapter 8 Parameters ASDA-M
8-104 Revision December, 2014
Settigs：
The third group of mechanism resonance frequency setting value.
If P2-46 is set to 0, this function will be disabled. P2-23 and P2-24
are the first group of resonance suppression (Notch filter).

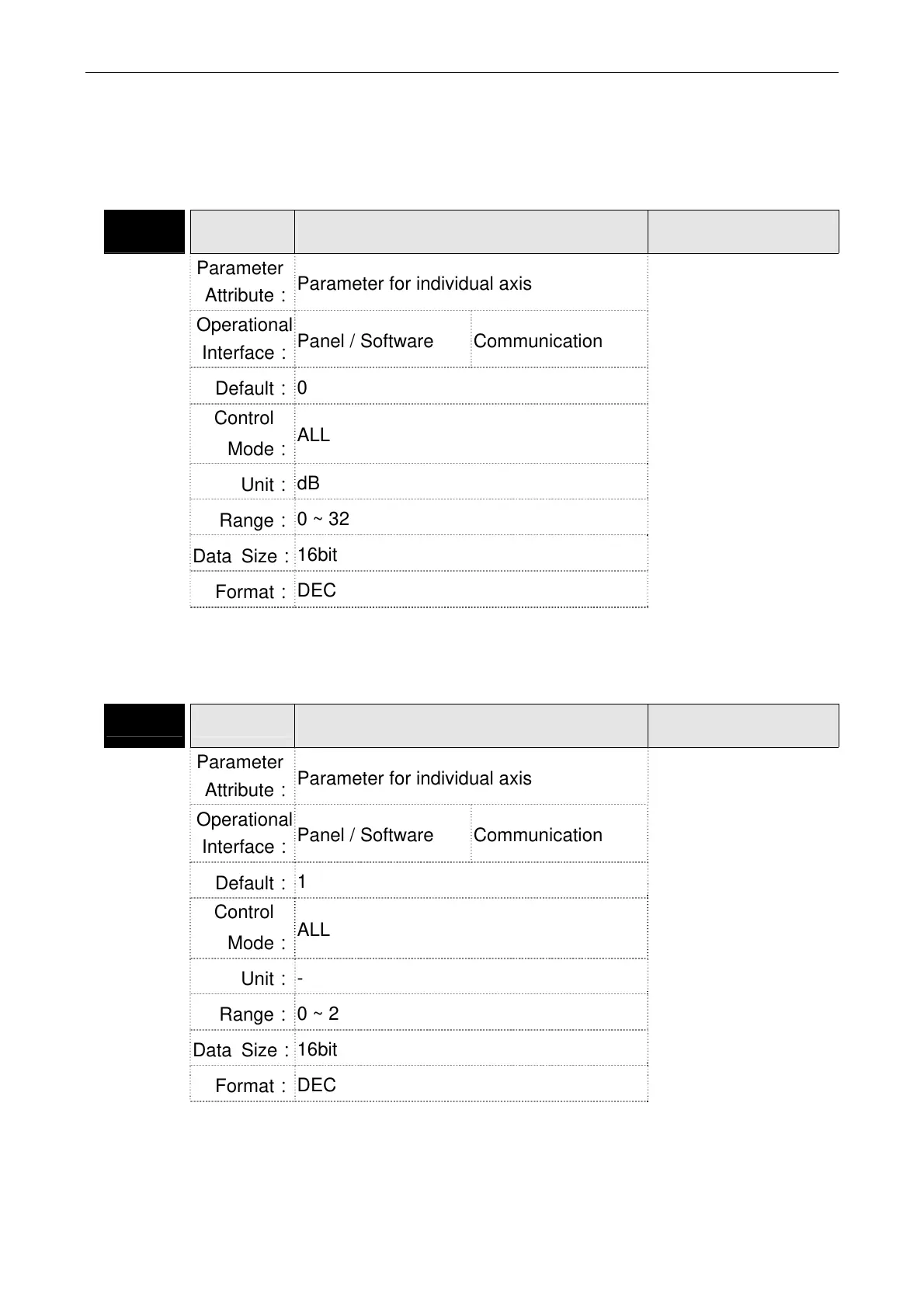

P2-46 DPH3
Resonance Suppression (Notch filter)
Attenuation Rate (3)
Address: 025CH
025DH
Parameter
Attribute：
Parameter for individual axis
Related Section:
Section 6.3.7
Operational
Interface：
Panel / Software Communication
Default：
0
Control
Mode：
ALL
Unit：
dB
Range：
0 ~ 32
Data Size：
16bit
Format：
DEC
Settings：
The third group of resonance suppression (Notch filter)
attenuation rate. Set the value to 0 to disable the function of
Notch filter.
P2-47 ANCF
Auto Resonance Suppression Mode
Setting
Address: 025EH
025FH
Parameter
Attribute：
Parameter for individual axis
Related Section: -
Operational
Interface：
Panel / Software Communication
Default：
1
Control
Mode：
ALL
Unit：
-
Range：
0 ~ 2
Data Size：
16bit
Format：
DEC
Settings：
0: The value of P2-43, P2-44 and P2-45, P2-46 will retain.
1: The value of P2-43, P2-44 and P2-45, P2-46 will retain after
resonance suppression.
2: Continuous resonance suppression
