Delta ASD-M-0721 Series User Manual

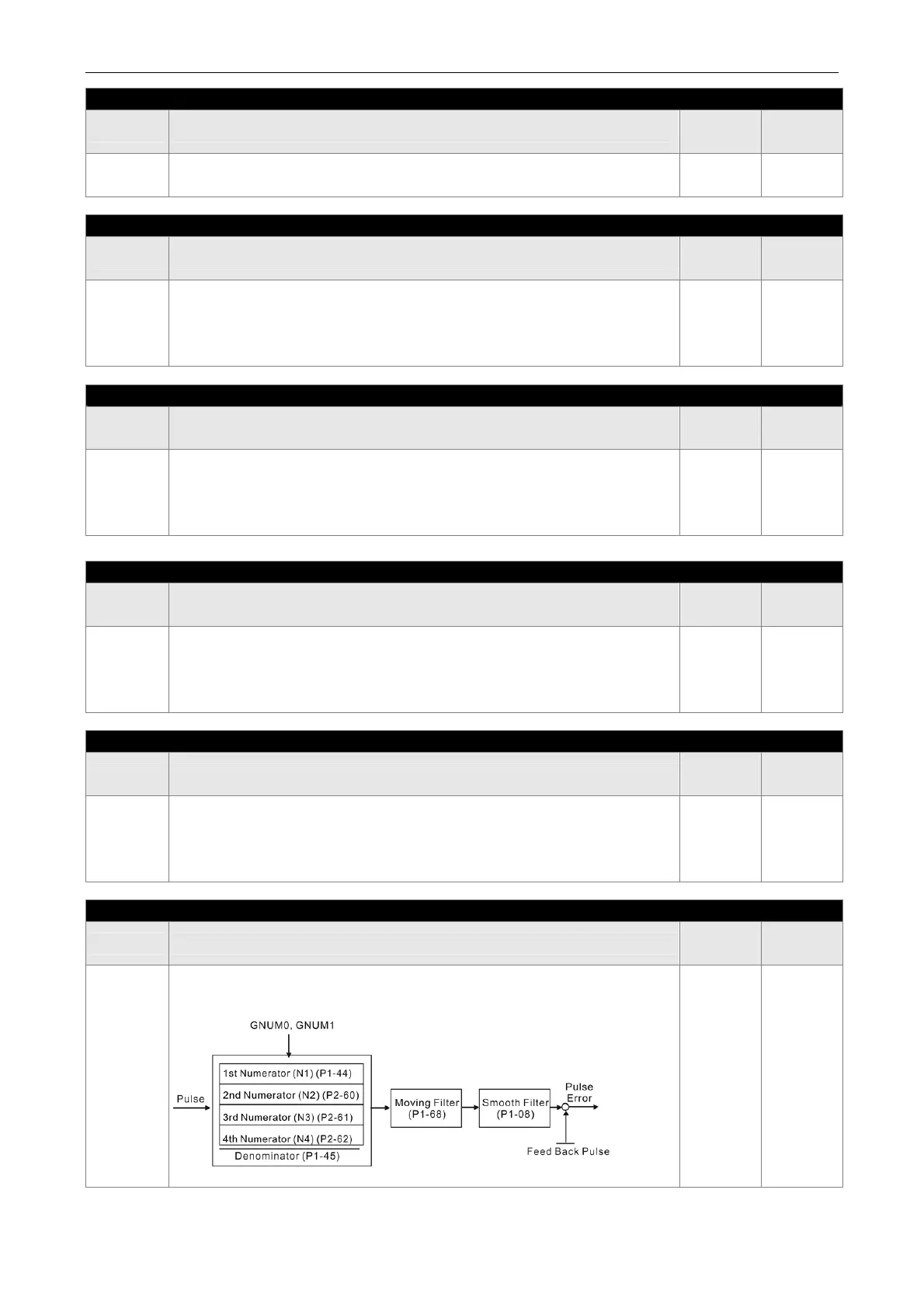

ASDA-M Chapter 8 Parameters
Revision December, 2014 8-303
Setting Value: 0x38
DI Name Function Description of Digital Input (DI)
Trigger
Method
Control
Mode
JOGD When this DI is on, the motor will JOG in reverse direction. Level
triggered
ALL
Setting Value: 0x39
DI Name Function Description of Digital Input (DI)
Trigger
Method
Control
Mode
EV1
Event trigger command #1 (Refer to the setting of P5-98,
P5-99)
Rising
/Falling
edge
triggered
PR
Setting Value: 0x3A
DI Name Function Description of Digital Input (DI)
Trigger
Method
Control
Mode
EV2
Event trigger command #2 (Refer to the setting of P5-98,
P5-99)
Rising
/Falling
edge
triggered
PR
Setting Value: 0x3B
DI Name Function Description of Digital Input (DI)
Trigger
Method
Control
Mode
EV3 Event trigger command #3 Rising
/Falling
edge
triggered
PR
Setting Value: 0x3C
DI Name Function Description of Digital Input (DI)
Trigger
Method
Control
Mode
EV4 Event trigger command #4 Rising
/Falling
edge
triggered
PR
Setting Value: 0x43, 0x44
DI Name Function Description of Digital Input (DI)
Trigger
Method
Control
Mode
GNUM0
GNUM1
Gear Ratio Selection 0 (Numerator)
Gear Ratio Selection 1 (Numerator)
Level
triggered
PT
