Chapter 10 Digital KeypadMS300 (IP66 / NEMA 4X)
10-4

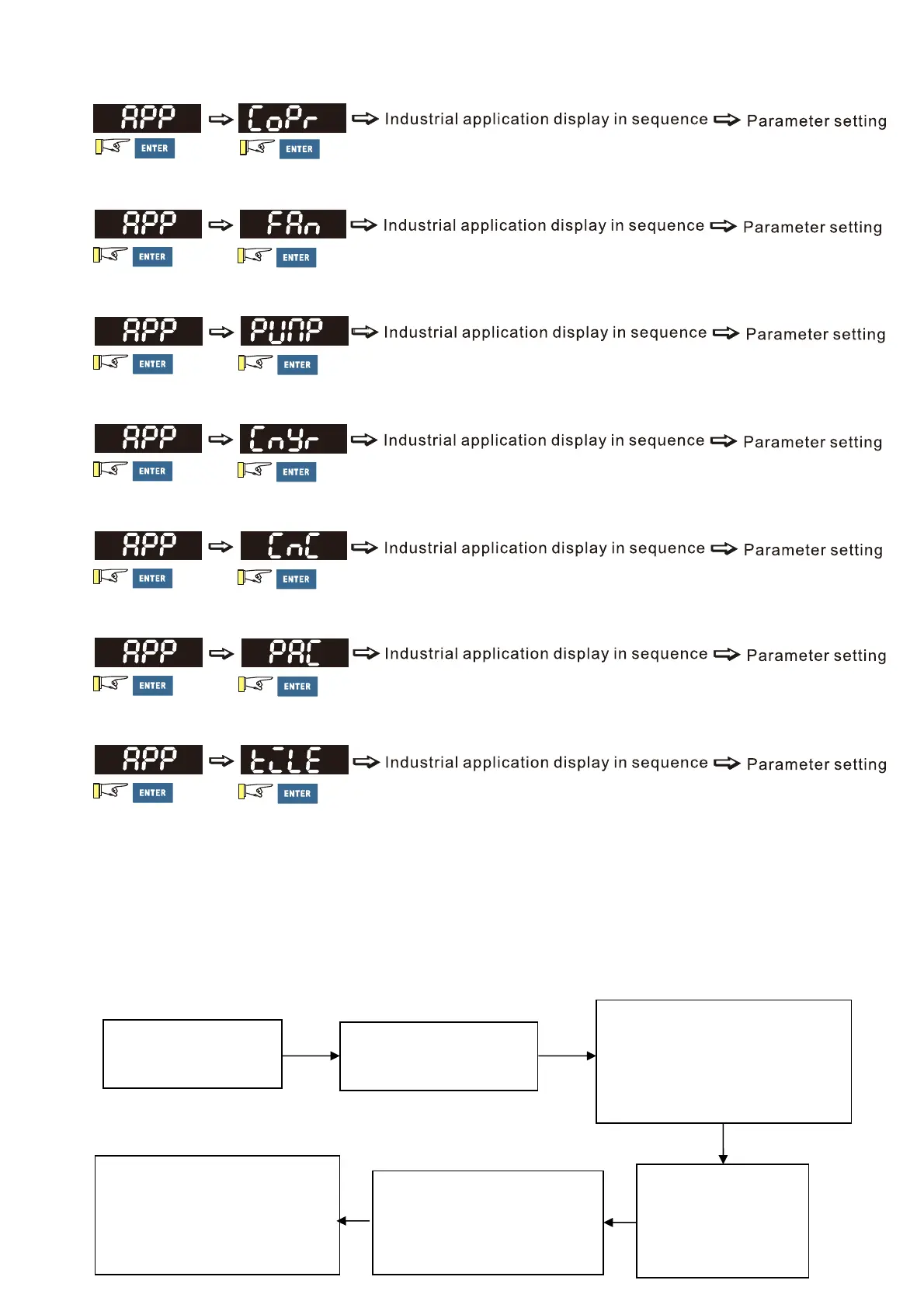

Pr.13-00 = 2 specifies the Compressor application, and the keypad displays “CoPr”.
Pr.13-00 = 3 specifies the Fan application, and the keypad displays “FAn”.
Pr.13-00 = 4 specifies the Pump application, and the keypad displays “PUMP”.
Pr.13-00 = 5 specifies the Conveyor application, and the keypad displays “CnYr”.
Pr.13-00 = 6 specifies the Machine Tool application, and the keypad displays “CNC”.
Pr.13-00 = 7 specifies the Packing application, and the keypad displays “PAC”.
Pr.13-00 = 8 specifies the Textile application, and the keypad displays “tiLE”.
When Pr.13-00 is not 0, the corresponding parameters appear in the APP page according to the
setting for Pr.13-00. In each selected application, you can view the parameters by pressing ENTER
button. If Pr.13-00 = 1 and you do not set any parameters in Pr.13-01–13-50, you cannot enter the
sub-layer of the USEr page. The parameter settings in the APP page are the same as those in other
parameter groups: use UP and LEFT/DOWN key to set the parameter’s value.
Follow the process below to set the user-defined application selection (Pr.13-00 = 1).
Set Pr.13-00 = 1.
Activates user-defined
application selection.
Set Pr.13-01–13-50
user-defined parameters
in order.
When finishing setting, press
MODE button to display the APP
page, and then press ENTER to
display the USEr page. Press
ENTER again to display the
user-defined
arameters.
Use UP and DOWN
key to select defined
parameters, and
press ENTER to
check the setting.
To change a user-defined
parameter, go back to
parameter group 13 and
modify the value there.
To remove a user-defined
parameter, go back to
parameter group 13, and set the
parameter as 0.00 from the last
defined parameter in order.
