Delta Compact Drive MS300 IP66/NEMA 4X Series User Manual

Chapter 2 DimensionsMS300 (IP66 / NEMA 4X)
2-2

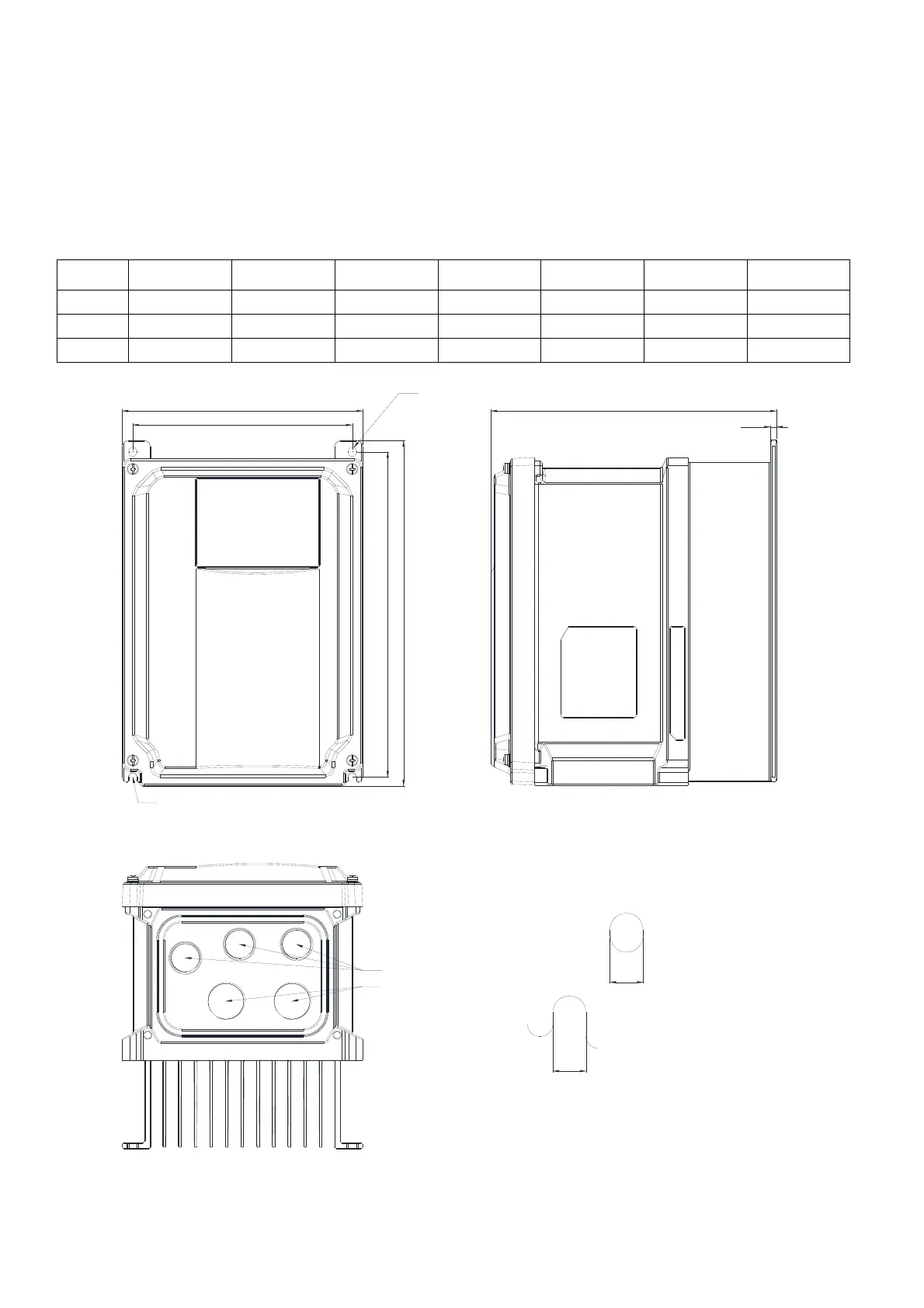

2-1 Frame A
A1: VFD2A8MS21MNSAA; VFD2A8MS21MFSAA; VFD2A8MS23MNSAA; VFD1A5MS43MNSAA;
VFD1A5MS43MFSAA; VFD4A8MS21MNSAA; VFD4A8MS21MFSAA; VFD4A8MS23MNSAA;
VFD2A7MS43MNSAA; VFD2A7MS43MFSAA
A2: VFD7A5MS21MNSAA; VFD7A5MS23MNSAA; VFD4A2MS43MNSAA; VFD4A2MS43MFSAA
A3: VFD5A5MS43MNSAA
Unit: mm [inch]
Frame
W H D W1 H1 D1 S1
A1 160.0 [6.30] 230.0 [9.06] 151.0 [5.94] 146.0 [5.75] 216.5 [8.52] 4.0 [0.16] 5.5 [0.22]
A2 160.0 [6.30] 230.0 [9.06] 167.0 [6.57] 146.0 [5.75] 216.5 [8.52] 4.0 [0.16] 5.5 [0.22]
A3 160.0 [6.30] 230.0 [9.06] 190.0 [7.48] 146.0 [5.75] 216.5 [8.52] 4.0 [0.16] 5.5 [0.22]
H1
D
Detail B (Mounting Hole)
H
D1
See Detail B
W1
See Detail A
M20X1.5
W
Detail A (Mounting Hole)
M25X1.5
S1
S1

Delta Compact Drive MS300 IP66/NEMA 4X Series Specifications

General

Series	MS300
Category	DC Drives
IP Rating	IP66
NEMA Rating	NEMA 4X
Control Method	V/F, SVC
Communication Interface	RS-485
Operating Temperature	-10°C to 50°C
Storage Temperature	-20°C to +60°C
Humidity	90% RH, non-condensing
Altitude	Up to 1000m
Vibration	1.0G
Input Voltage	Single/Three Phase 200-240V, Three Phase 380-480V
