Delta Compact Drive MS300 IP66/NEMA 4X Series User Manual

Chapter 2 DimensionsMS300 (IP66 / NEMA 4X)
2-3

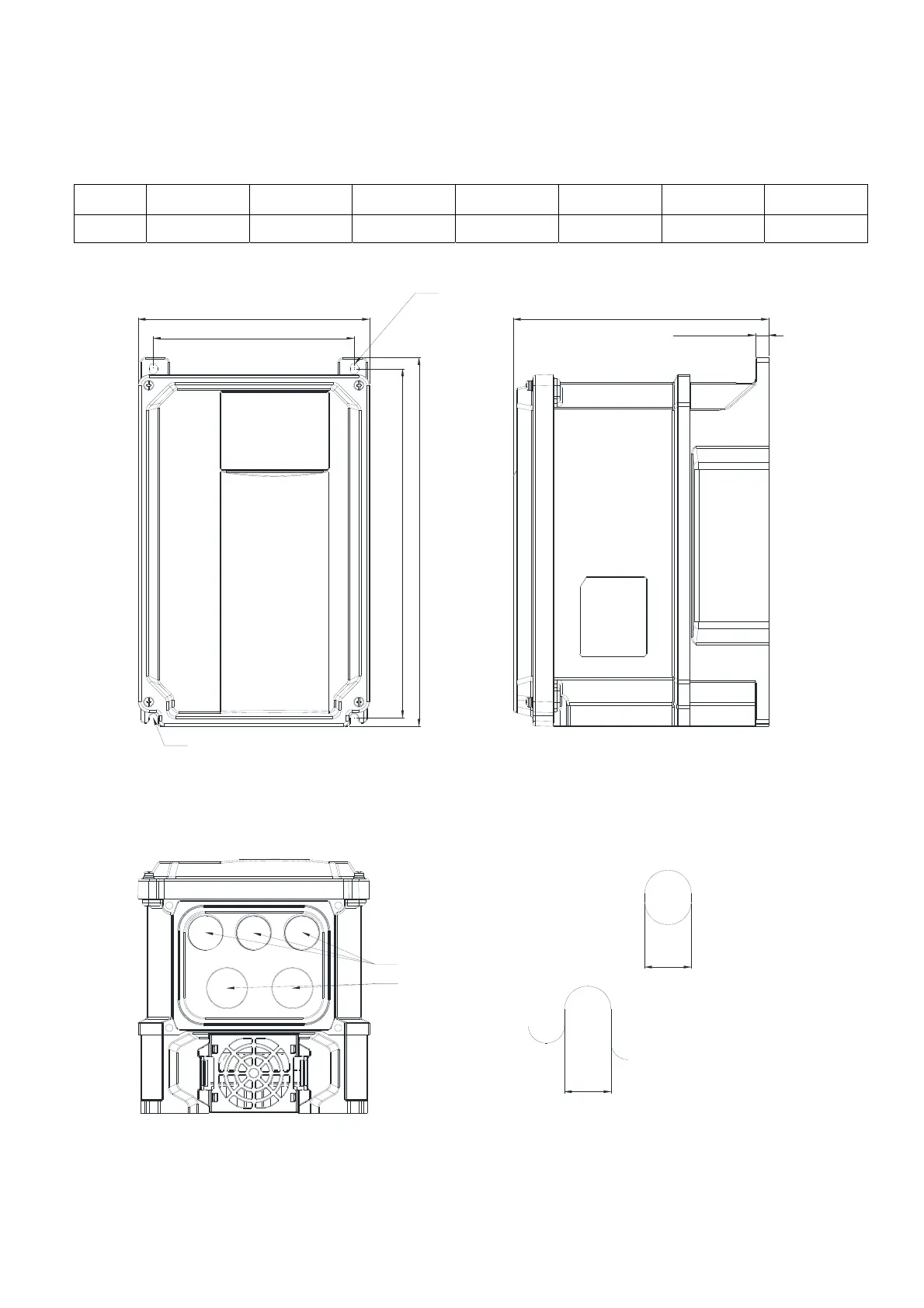

2-2 Frame B
VFD7A5MS21MFSAA; VFD11AMS21MNSAA; VFD11AMS21MFSAA; VFD11AMS23MNSAA;
VFD5A5MS43MFSAA; VFD17AMS23MNSAA; VFD9A0MS43MNSAA; VFD9A0MS43MFSAA
Unit: mm [inch]
Frame
W H D W1 H1 D1 S1
B 175.0 [6.89] 280.0 [11.02] 193.0 [7.60] 152.0 [5.98] 266.0 [10.43] 10 [0.39] 6.4 [0.25]
H
M20X1.5
Detail A (Mounting Hole)
Detail B (Mounting Hole)
See Detail A
D
M32X1.5
S1
See Detail B
D1
W1
H1
W
S1

Delta Compact Drive MS300 IP66/NEMA 4X Series Specifications

General

Series	MS300
Category	DC Drives
IP Rating	IP66
NEMA Rating	NEMA 4X
Control Method	V/F, SVC
Communication Interface	RS-485
Operating Temperature	-10°C to 50°C
Storage Temperature	-20°C to +60°C
Humidity	90% RH, non-condensing
Altitude	Up to 1000m
Vibration	1.0G
Input Voltage	Single/Three Phase 200-240V, Three Phase 380-480V
