Delta Compact Drive MS300 IP66/NEMA 4X Series User Manual

Chapter 7 Optional Accessories  MS300 (IP66 / NEMA 4X)
7-8
DC Reactor (IP Level: IP00)
A DC reactor can also improve the power factor, reduce input current, and reduce interference
generated from the motor drive. A DC reactor stabilizes the DC BUS voltage. Compared to an AC input
reactor, the advantages are smaller size, lower price, and lower voltage drop (lower power dissipation).
Installation
Install the DC reactor between terminals DC/+1 and +2/B1. Remove the jumper, as shown in the
figure below, before installing the DC reactor.

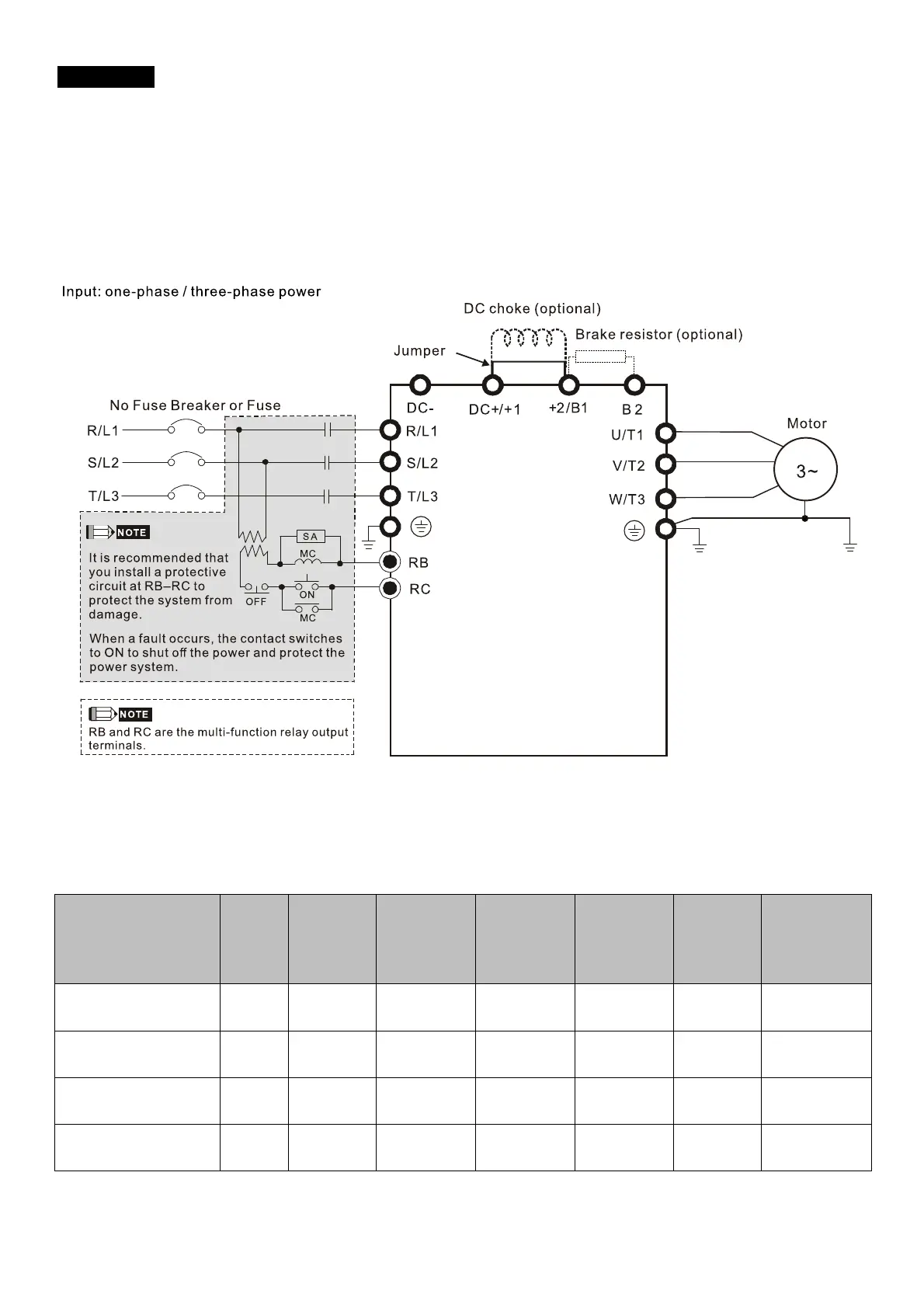

Wiring of DC reactor
230V, 50–60 Hz / One-Phase - Normal Duty
Model
Rated
Current
ND / HD
[Arms]
Saturation
ND / HD
Current
[Arms]
AC Input /
Output
Reactor
Inductance
[mH]
AC Input
Reactor
Delta Part #
AC Output
Reactor
Delta Part #
DC
Reactor
Inductance
[mH]
DC Reactor
Delta Part #
VFD2A8MS21MNSAA
VFD2A8MS21MFSAA
3.2 4.8 5.857 DR005D0585
DR005L0254
5.857 DR005D0585
VFD5A0MS21MNSAA
VFD5A0MS21MFSAA
5.2 7.8 3.66 DR008D0366
DR005L0254
3.66 DR008D0366
VFD7A5MS21MNSAA
VFD7A5MS21MFSAA
8.5 12.75
2.662 DR011D0266
DR008L0159
2.662 DR011D0266
VFD11AMS21MNSAA
VFD11AMS21MFSAA
12.5 18.75 1.722 DR017D0172
DR017LP746
1.722 DR017D0172

Delta Compact Drive MS300 IP66/NEMA 4X Series Specifications

General

Series	MS300
Category	DC Drives
IP Rating	IP66
NEMA Rating	NEMA 4X
Control Method	V/F, SVC
Communication Interface	RS-485
Operating Temperature	-10°C to 50°C
Storage Temperature	-20°C to +60°C
Humidity	90% RH, non-condensing
Altitude	Up to 1000m
Vibration	1.0G
Input Voltage	Single/Three Phase 200-240V, Three Phase 380-480V
