Delta Compact Drive MS300 IP66/NEMA 4X Series User Manual

Chapter 7 Optional Accessories MS300 (IP66 / NEMA 4X)
7-11

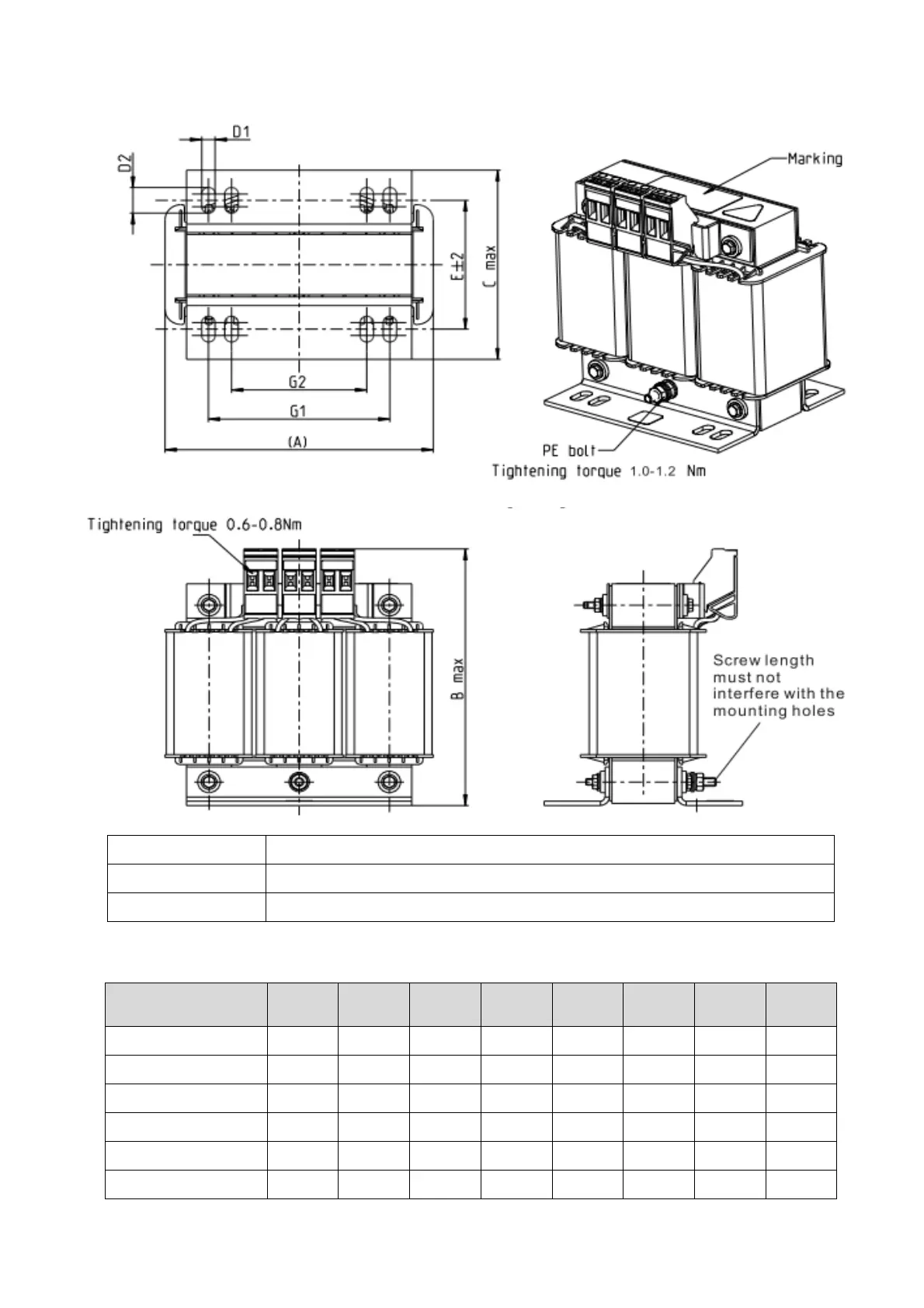

AC input reactor dimensions and specifications
Screw Location Torque
Terminal 5.32–7.09 kg-cm / [6.12–8.16 lb-in.] / [0.6–0.8 Nm]
PE bolt 8.86–10.63 kg-cm / [10.2–12.24 lb-in.] / [1.0–1.2 Nm]
Unit: mm
AC Input Reactor
Delta Part #
A B C D1*D2 E G1 G2 PE D
DR005A0254 96 100 60 6*9 42 60 40 M4
DR008A0159 120 120 88 6*12 60 80.5 60 M4
DR011A0115 120 120 88 6*12 60 80.5 60 M4
DR017AP746 120 120 93 6*12 65 80.5 60 M4
DR025AP507 150 150 112 6*12 88 107 75 M4
DR033AP320 150 150 112 6*12 88 107 75 M4

Delta Compact Drive MS300 IP66/NEMA 4X Series Specifications

General

Series	MS300
Category	DC Drives
IP Rating	IP66
NEMA Rating	NEMA 4X
Control Method	V/F, SVC
Communication Interface	RS-485
Operating Temperature	-10°C to 50°C
Storage Temperature	-20°C to +60°C
Humidity	90% RH, non-condensing
Altitude	Up to 1000m
Vibration	1.0G
Input Voltage	Single/Three Phase 200-240V, Three Phase 380-480V
