Delta Compact Drive MS300 IP66/NEMA 4X Series User Manual

Chapter 7 Optional Accessories  MS300 (IP66 / NEMA 4X)
7-12
Screw Location Torque
Terminal 5.32–7.09 kg-cm / [6.12–8.16 lb-in.] / [0.6–0.8 Nm]
PE bolt 8.86–10.63 kg-cm / [10.2–12.24 lb-in.] / [1.0–1.2 Nm]
Unit: mm

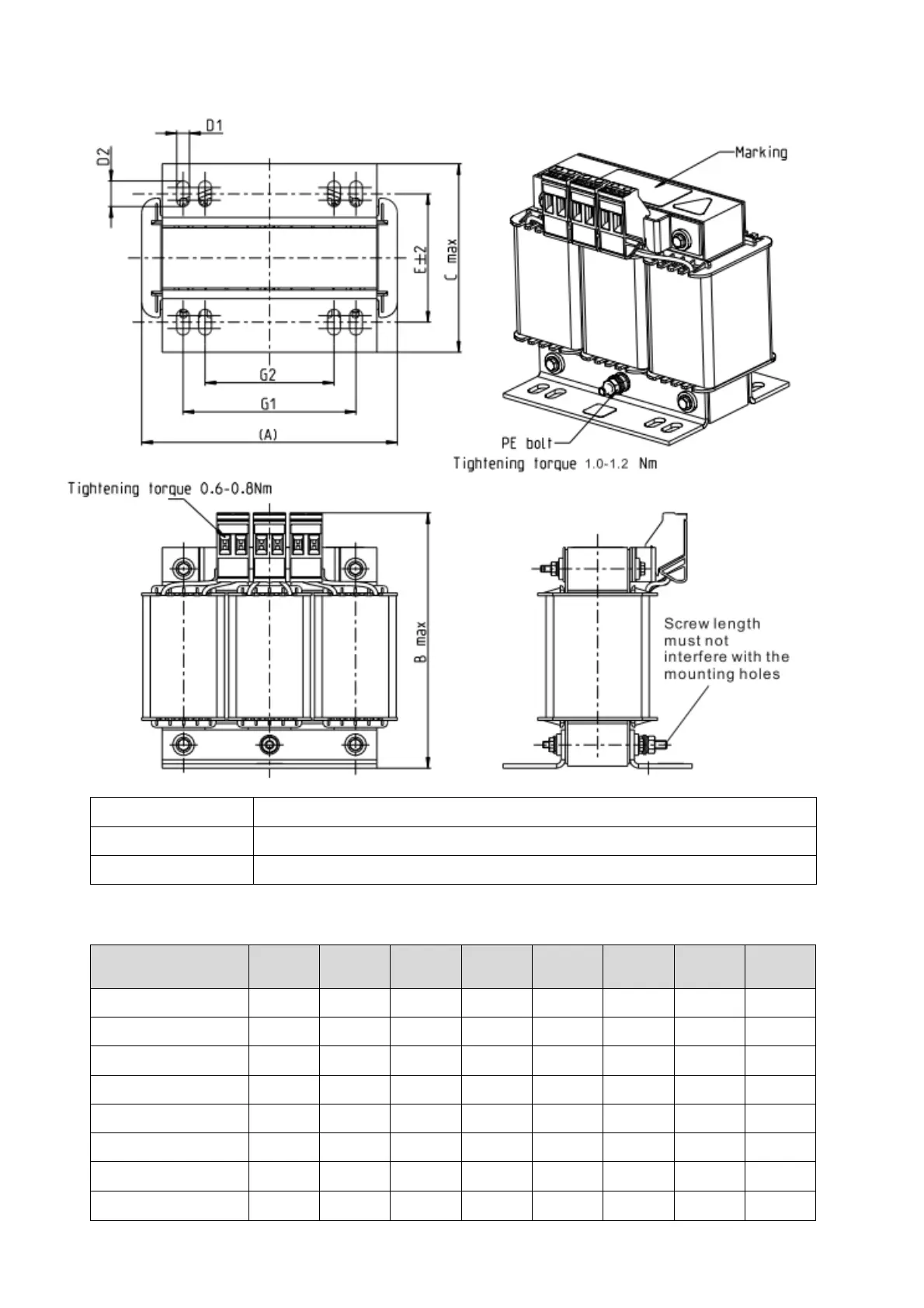

AC Input Reactor
Delta Part #
A B C D1*D2 E G1 G2 PE D
DR003A0810 96 100 60 6*9 42 60 40 M4
DR004A0607 120 120 88 6*12 60 80.5 60 M4
DR006A0405 120 120 88 6*12 60 805 60 M4
DR009A0270 150 150 88 6*12 74 107 75 M4
DR010A0231 150 150 112 6*12 88 107 75 M4
DR012A0202 150 150 112 6*12 88 107 75 M4
DR018A0117 150 155 112 6*12 88 107 75 M4
DR024AP881 150 155 112 6*12 88 107 75 M4

Delta Compact Drive MS300 IP66/NEMA 4X Series Specifications

General

Series	MS300
Category	DC Drives
IP Rating	IP66
NEMA Rating	NEMA 4X
Control Method	V/F, SVC
Communication Interface	RS-485
Operating Temperature	-10°C to 50°C
Storage Temperature	-20°C to +60°C
Humidity	90% RH, non-condensing
Altitude	Up to 1000m
Vibration	1.0G
Input Voltage	Single/Three Phase 200-240V, Three Phase 380-480V
