Delta Compact Drive MS300 IP66/NEMA 4X Series

Chapter 7 Optional Accessories  MS300 (IP66 / NEMA 4X)
7-14
Unit: mm

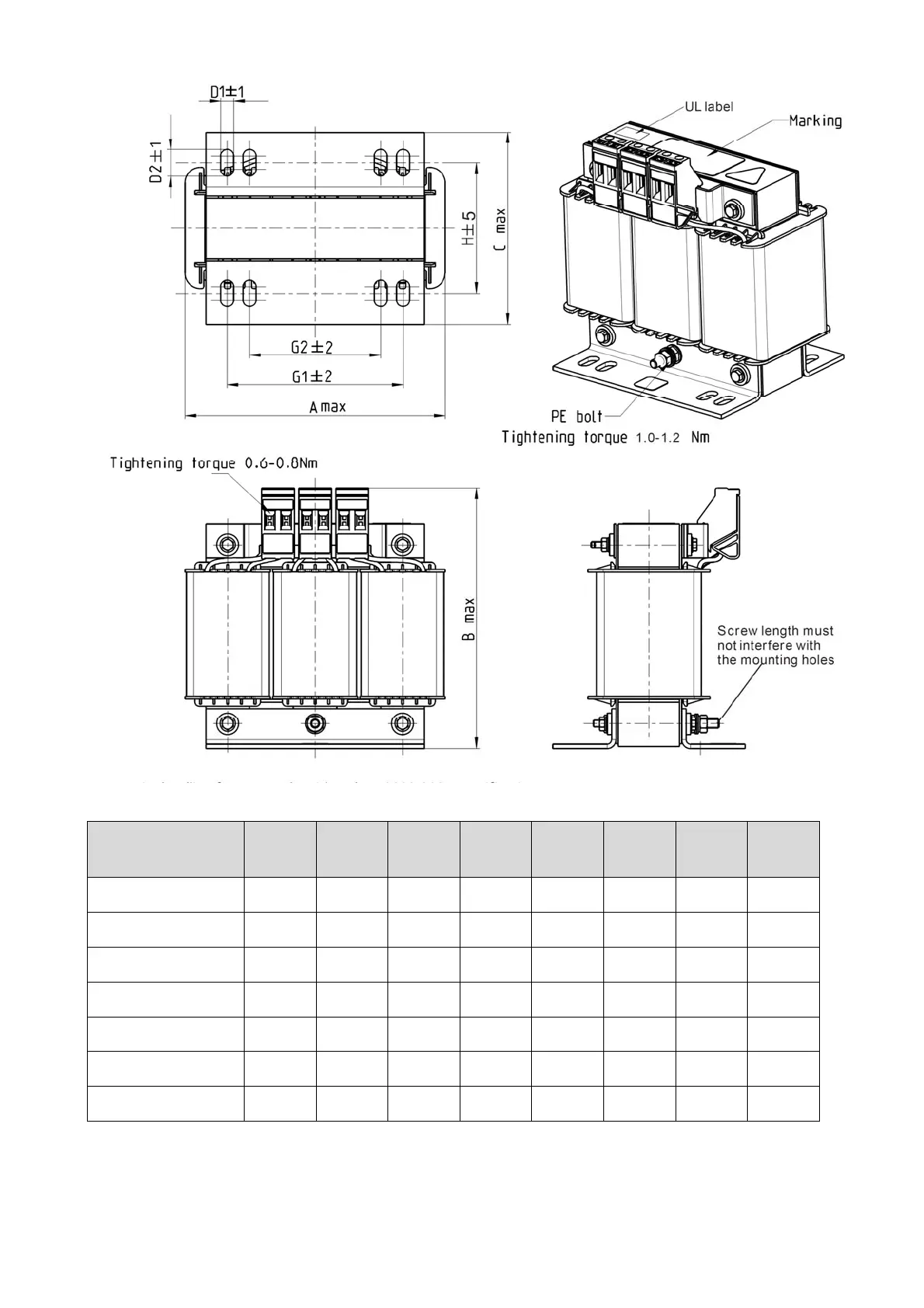

AC Input Reactor
Delta Part #
A B C D1*D2 E G1 G2 PE D
DR003L0810 96 115 65 6*9 42 60 40 M4
DR004L0607 120 135 95 6*12 60 80.5 60 M4
DR006L0405 120 135 95 6*12 60 80.5 60 M4
DR009L0270 150 160 100 6*12 74 107 75 M4
DR010L0231 150 160 115 6*12 88 107 75 M4
DR012L0202 150 160 115 6*12 88 107 75 M4
DR018L0117 150 160 115 6*12 88 107 75 M4
