Delta Compact Drive MS300 IP66/NEMA 4X Series User Manual

Chapter 7 Optional Accessories MS300 (IP66 / NEMA 4X)
7-15

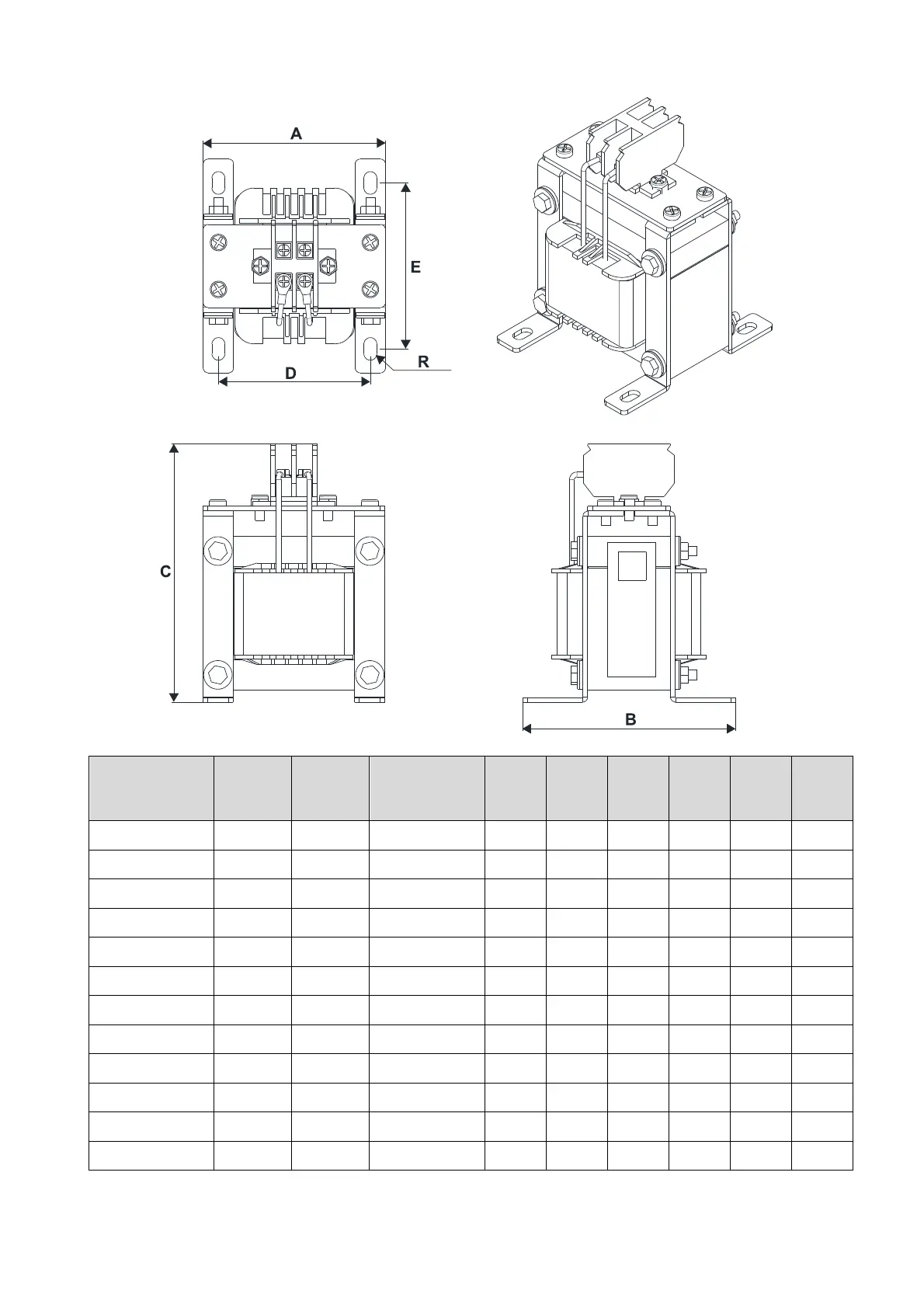

DC reactor dimensions and specifications
DC Reactor
Delta Part #
Rated
Current
[Arms]
Saturation
Current
[Arms]
DC Reactor
Inductance
[mH]
A
[mm]
B
[mm]
C
[mm]
D
[mm]
E
[mm]
R
[mm]
DR005D0585 5 8.64 5.857 79 78 112 64±2 56±2 9.5*5.5
DR008D0366 8 12.78 3.660 79 78 112 64±2 56±2 9.5*5.5
DR011D0266 11 18 2.662 79 92 112 64±2 69.5±2 9.5*5.5
DR017D0172 17 28.8 1.722 79 112 112 64±2 89.5±2 9.5*5.5
DR025D0117 25 43.2 1.172 99 105 128 79±2 82.5±2 9.5*5.5
DR003D1870 3 5.22 18.709 79 78 112 64±2 56±2 9.5*5.5
DR004D1403 4 6.84 14.031 79 92 112 64±2 69.5±2 9.5*5.5
DR006D0935 6 10.26 9.355 79 92 112 64±2 69.5±2 9.5*5.5
DR009D0623 9 14.58 6.236 79 112 112 64±2 89.5±2 9.5*5.5
DR010D0534 10.5 17.1 5.345 99 93 128 79±2 70±2 9.5*5.5
DR012D0467 12 19.8 4.677 99 105 128 79±2 82.5±2 9.5*5.5
DR018D0311 18 30.6 3.119 117 110 144 95±2 87±2 10*6.5

Delta Compact Drive MS300 IP66/NEMA 4X Series Specifications

General

Series	MS300
Category	DC Drives
IP Rating	IP66
NEMA Rating	NEMA 4X
Control Method	V/F, SVC
Communication Interface	RS-485
Operating Temperature	-10°C to 50°C
Storage Temperature	-20°C to +60°C
Humidity	90% RH, non-condensing
Altitude	Up to 1000m
Vibration	1.0G
Input Voltage	Single/Three Phase 200-240V, Three Phase 380-480V
