Delta Compact Drive MS300 IP66/NEMA 4X Series

Chapter 7 Optional Accessories MS300 (IP66 / NEMA 4X)
7-39

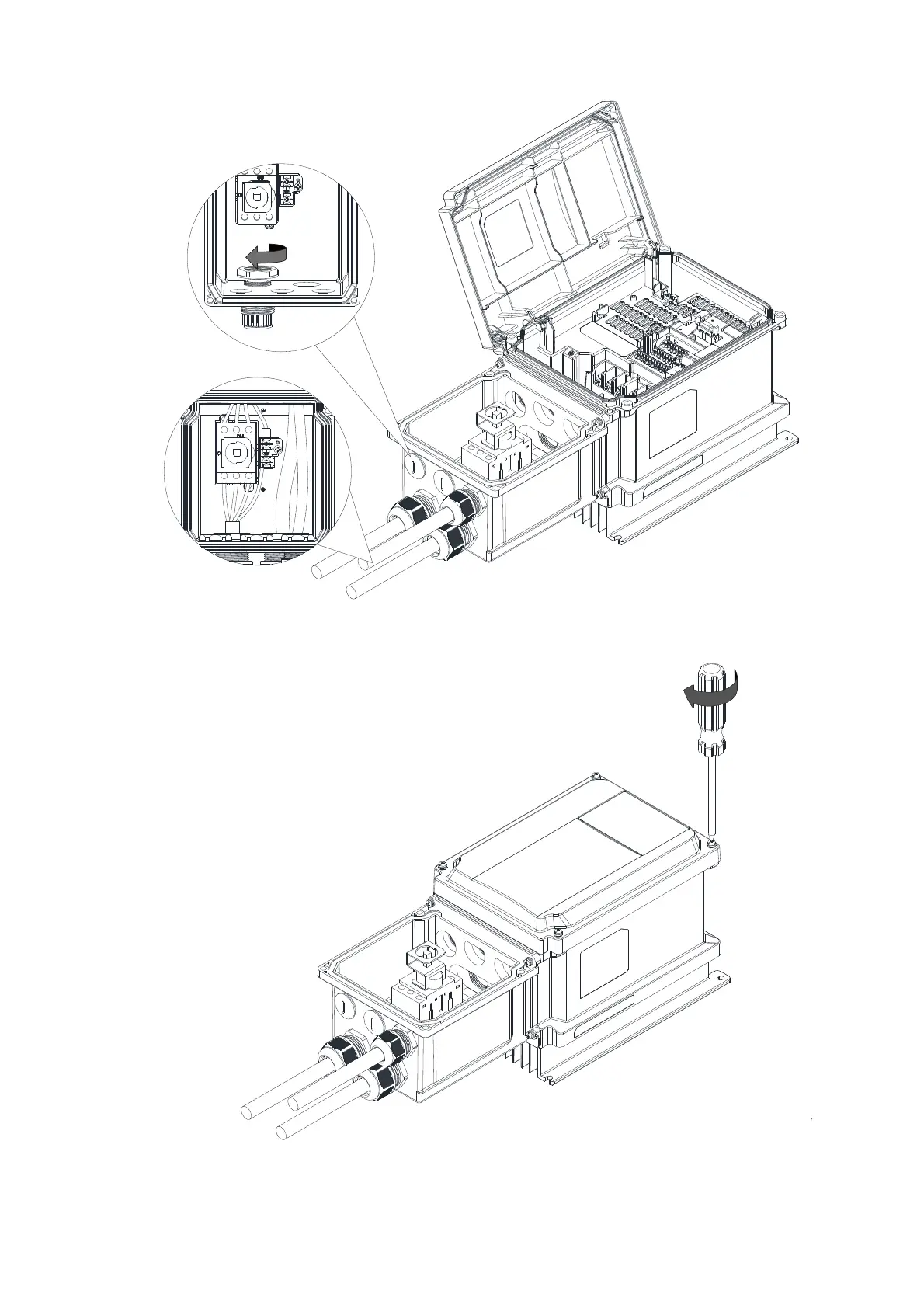

3. Tighten the waterproof connector and waterproof plugs before doing any wiring.
L2
L1
L3
L2 L3
L1
4. Close the front cover of the drive and tighten it.
Screw: M4 * 4
Torque value: 6–8 kg-cm / [5.2–6.9 lb-in.] / [0.59–0.78 Nm]
