Chapter 7 Optional Accessories  MS300 (IP66 / NEMA 4X)

7-40

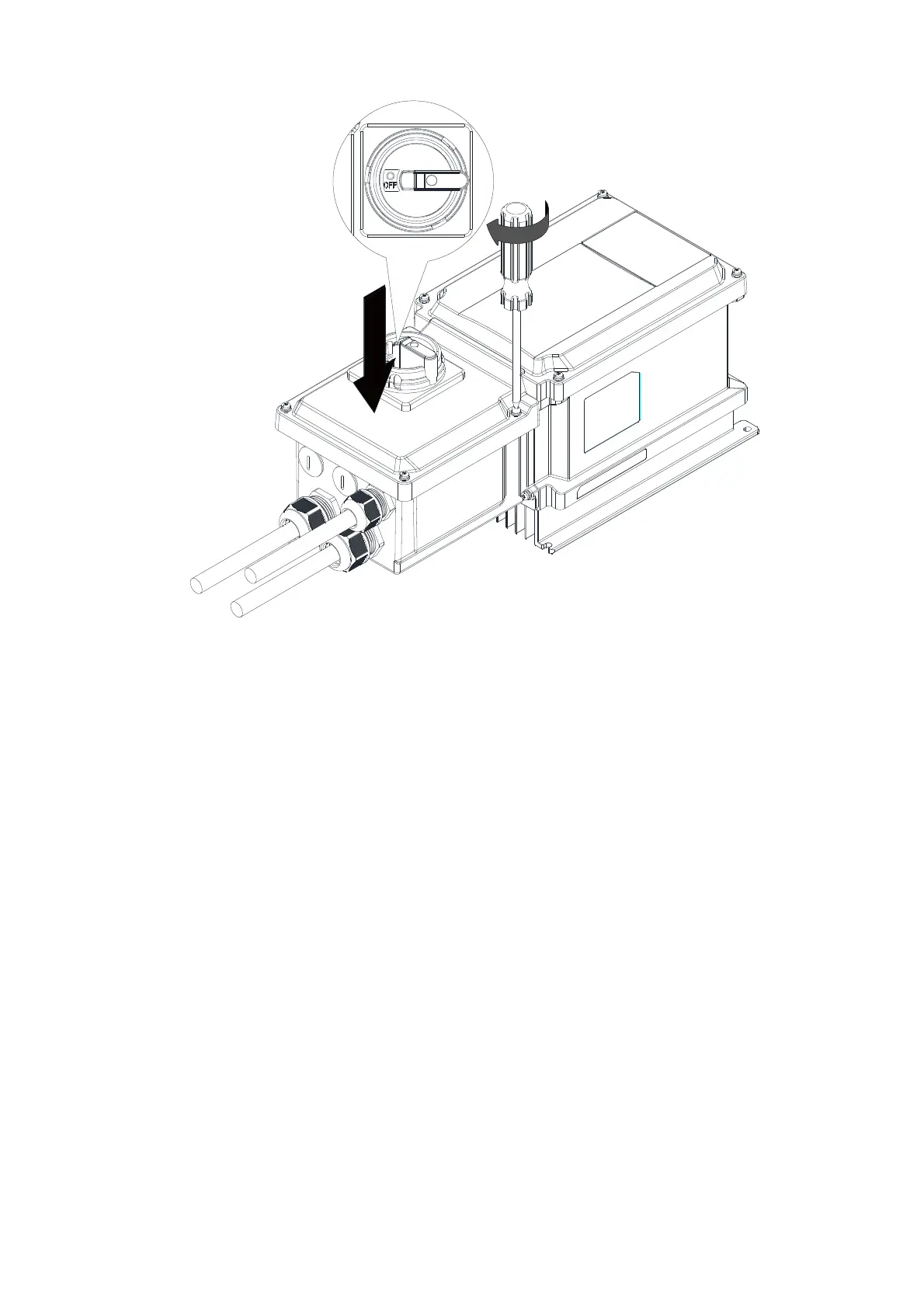

5. Close the front cover of the main switch and tighten it (keep the switch at OFF position)

Screw: M4 * 4

Torque value: 6–8 kg-cm /

[5.2–6.9 lb-in.] /

[0.59–0.78 Nm]

Questions and Answers:

Need help?

Do you have a question about the Delta Compact Drive MS300 IP66/NEMA 4X Series and is the answer not in the manual?

General

Series	MS300
Category	DC Drives
IP Rating	IP66
NEMA Rating	NEMA 4X
Control Method	V/F, SVC
Communication Interface	RS-485
Operating Temperature	-10°C to 50°C
Storage Temperature	-20°C to +60°C
Humidity	90% RH, non-condensing
Altitude	Up to 1000m
Vibration	1.0G
Input Voltage	Single/Three Phase 200-240V, Three Phase 380-480V
