Chapter 8 Optional Cards MS300 (IP66 / NEMA 4X)
8-4
NOTE

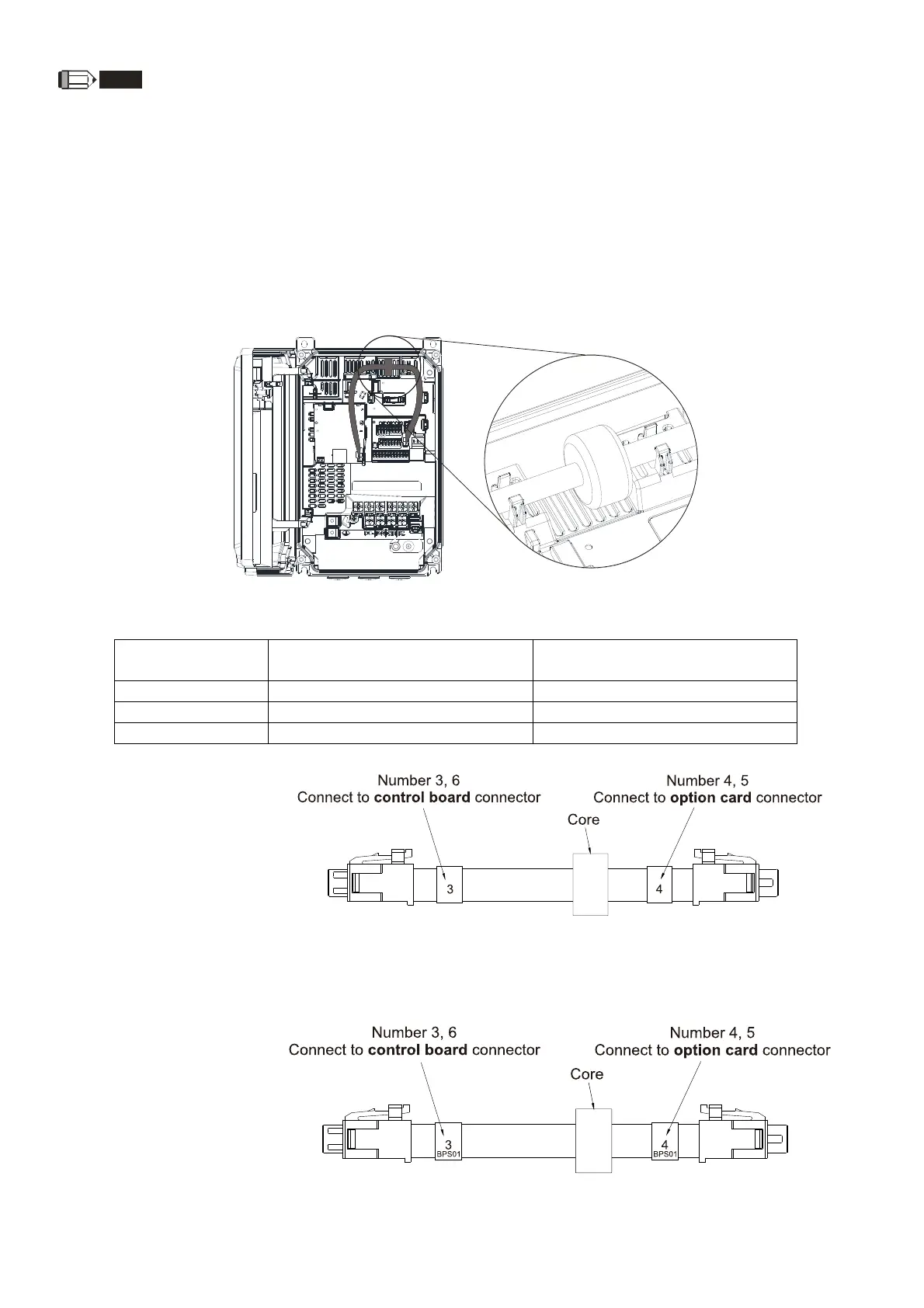

Wiring for the Communication Card and Backup Power Supply (BPS) Card Connecting Cables
1. See Figure 8-5 for wiring positions.
2. There are two wire lengths each for the communication card and BPS card connecting cables, and
they are both marked with numbers near their connectors at two ends of the cables. The difference
is that the BPS card connecting cable is also marked with “BPS01” in the same position. Refer to
Figure 8-6 and 8-7 to distinguish them and the table below for the wiring for each frame.
3. Do not confuse these two connecting cables. You must pay attention to the marked words and
numbers between them.
Frame
Connect to the Control Board
Connector
Connect to the Option Card
Connector
A 3 4
B 6 5
C 6 5
CMM-EIP01
CMM-MOD01
CMM-COP01
CMM-PD01
CMM-DN01
EMM-BPS01
Figure 8-6
Figure 8-7
Figure 8-5
To Next Page
