Delta Compact Drive MS300 IP66/NEMA 4X Series User Manual

Chapter 8 Optional Cards  MS300 (IP66 / NEMA 4X)
8-5
 You must ground the option cards listed below before wiring. The ground terminal is included with
option cards as shown in Figure 8-8.
1. CMM-MOD01
2. CMM-PD01
3. CMM-DN01
4. CMM-EIP01

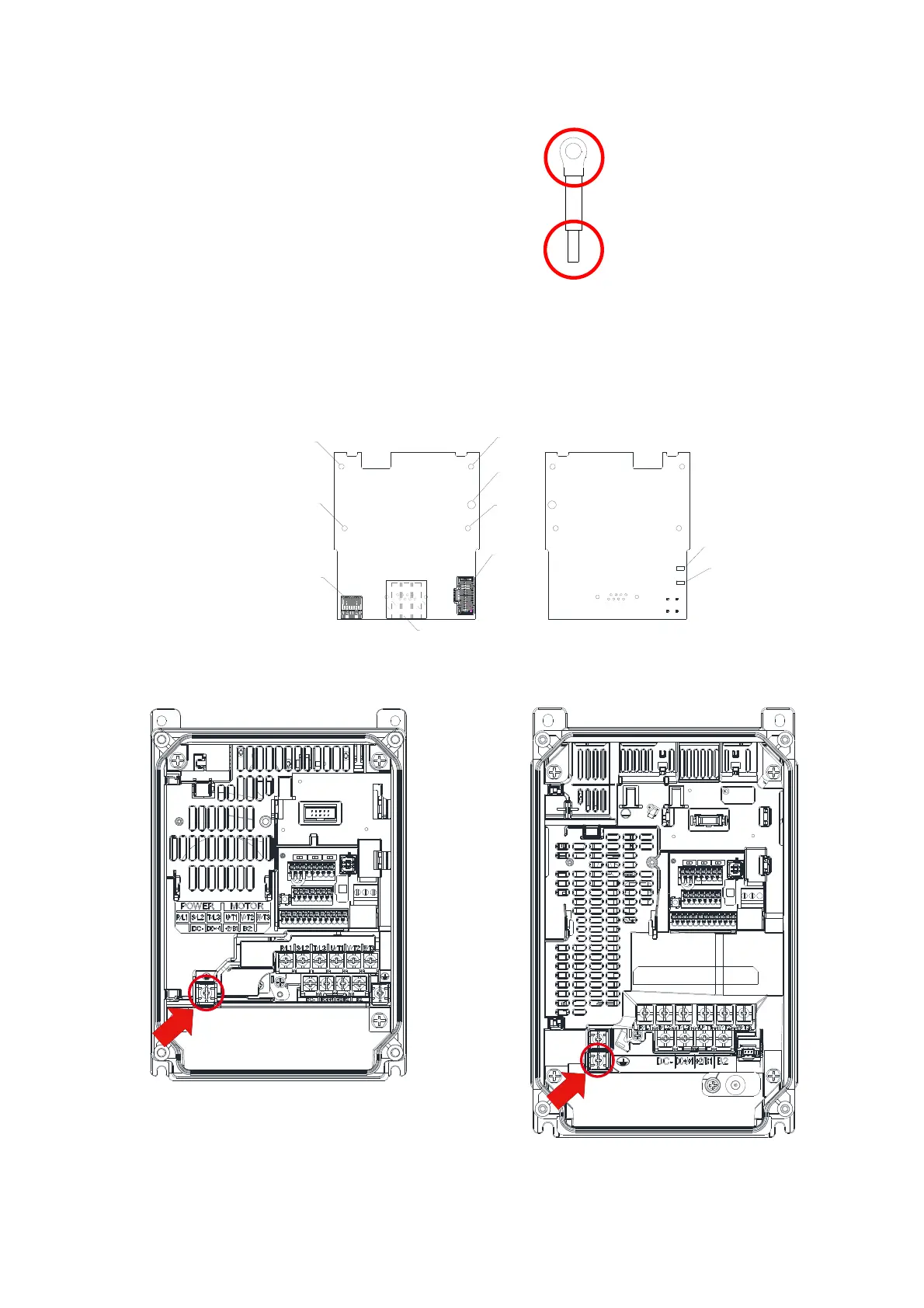

 Installation of the ground terminal:
The B side of the ground terminal connects to the ground terminal block on the option card at No.6 of
the CMM-MOD01 shown in Figure 8-9. See each section in Chapter 8 for the ground terminal blocks
of the other option cards. The A side of the ground terminal connects to the PE on the drive as the
red circles show in Figure 8-10–8-12.
4
3
6
2
2
2
1
5
5
2
Frame A Frame B
Torque (±10 %)
20 kg-cm [17.4 Ib-in.] [1.96 Nm]
Torque (±10 %)
20 kg-cm [17.4 Ib-in.] [1.96 Nm]
A
B
Figure 8-9
Figure 8-5
Figure 8-8
Ground terminal
Figure 8-6

Delta Compact Drive MS300 IP66/NEMA 4X Series Specifications

General

Series	MS300
Category	DC Drives
IP Rating	IP66
NEMA Rating	NEMA 4X
Control Method	V/F, SVC
Communication Interface	RS-485
Operating Temperature	-10°C to 50°C
Storage Temperature	-20°C to +60°C
Humidity	90% RH, non-condensing
Altitude	Up to 1000m
Vibration	1.0G
Input Voltage	Single/Three Phase 200-240V, Three Phase 380-480V
