ASDA-A2 Appendix A Accessories
Revision February, 2017 A-11

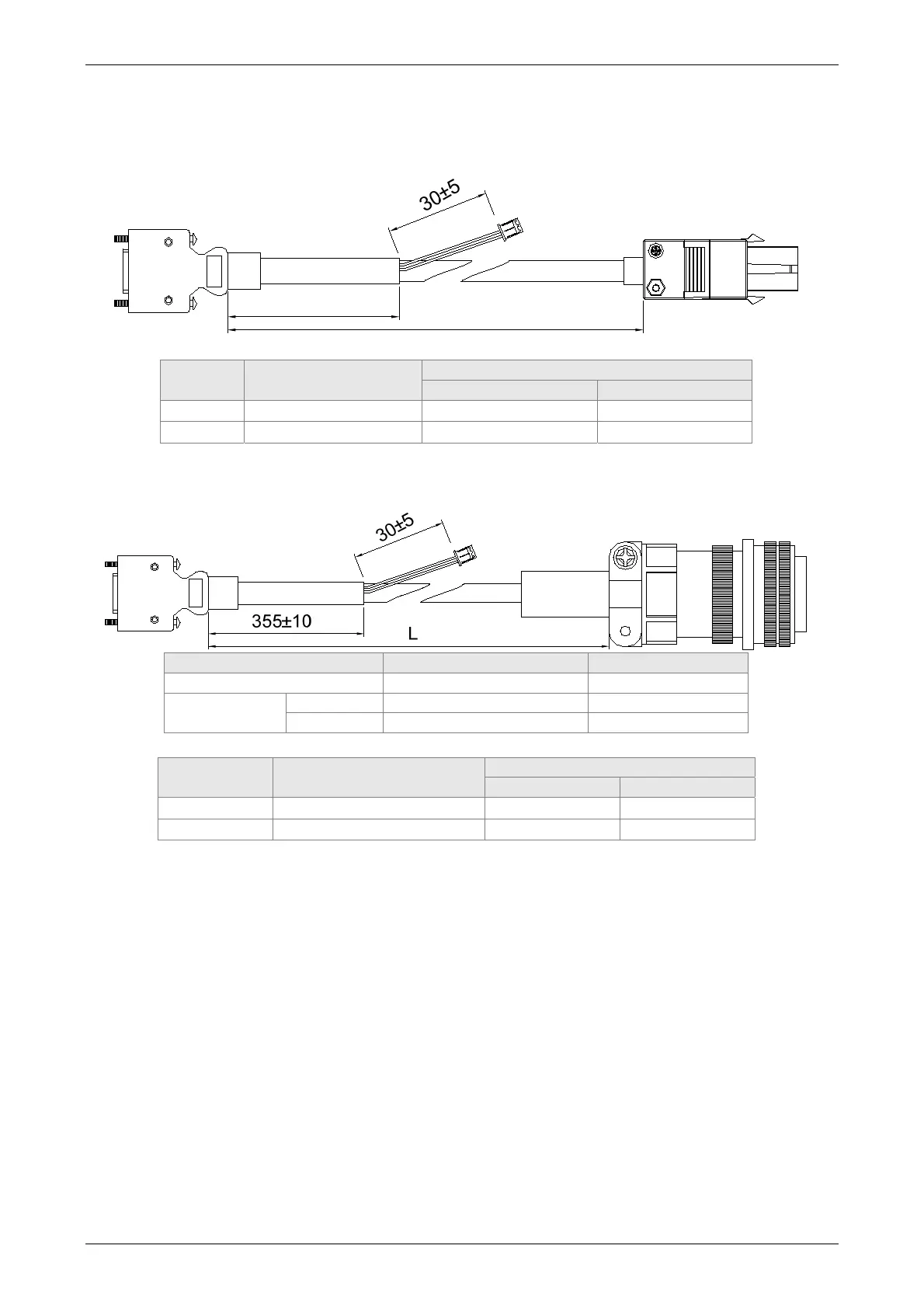

Absolute Type Encoder Cables
Delta Part Number: ASD-A2EB0003, ASD-A2EB0005
355±10
L
Title Part No.
L
mm inch
1 ASD-A2EB0003
3000 100 118 4
2 ASD-A2EB0005
5000 100 197 4
Delta Part Number: ASD-A2EB1003, ASD-A2EB1005
Title Part No. Manufacturer
MOTOR SIDE 3106A-20-29S -
DRIVE SIDE
PLUG 3M 10120-3000PE 3M
SHELL 3M 10320-52A0-008 3M
Title Model Name
L
mm inch
1 ASD-A2EB1003
3000 100 118 4
2 ASD-A2EB1005
5000 100 197 4
