Appendix A
Accessories
ASD
A-A2
A-12
Revision February, 2017

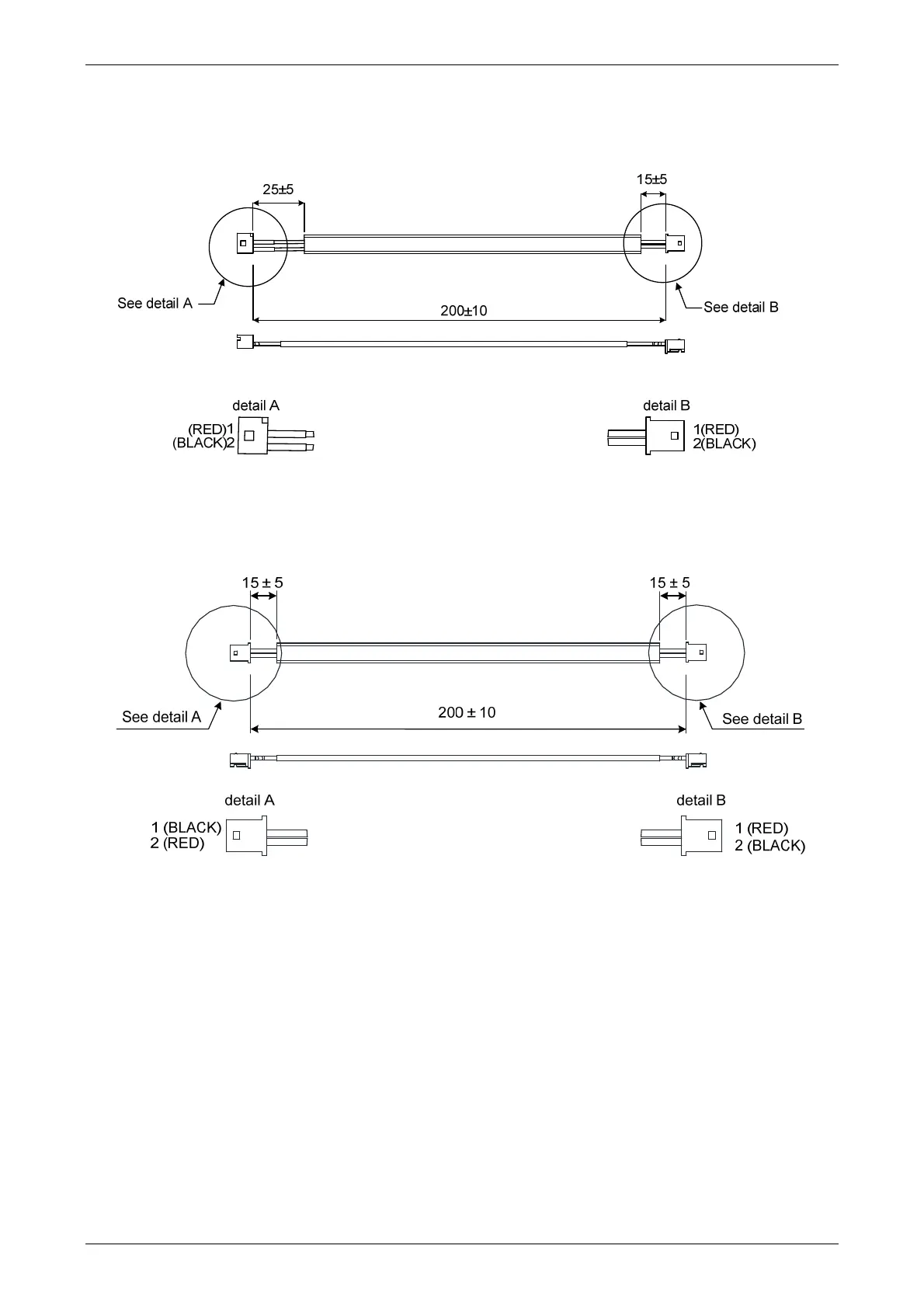

Battery Box Cord AW (Connects to the
battery
side of the encoder cable)
Delta Part Number: 3864573700
Battery Box Cord IW (Connects to CN8)
Delta Part Number: 3864811900
