DC wiring polarities have two components, Plus and Minus, which are shown in
Figure 5-5. The connection shall conform to the indication marked on inverter.
Table 5-4 : H4 connectors

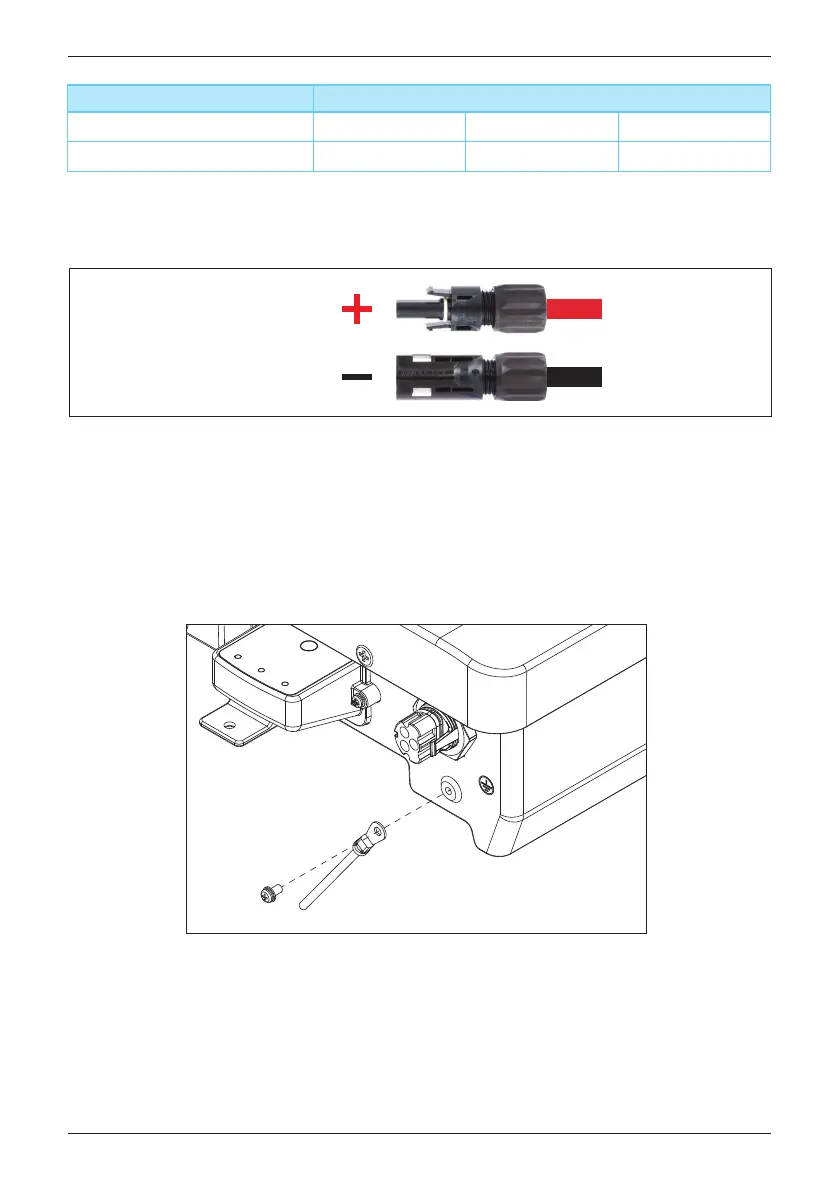

Figure 5-5 : DC Wiring illustration of H5A_222
H4CMC2D-MS
H4CFC2D-MS
Specifications
2.5mm² / 14AWG 4mm² / 12AWG 6mm² / 10AWG
25A @85˚
C 35A @85˚ C 45A @85˚ C
Description
contact size
rated current (TUV)
5.4 PE Connection
To ground the inverter, please ensure the PE conductor to the grounding point.
Recommended specifications：4mm² - 6mm²
Figure 5-6 : PE Wiring
Wiring
23
