6.5 Reactive Power Control

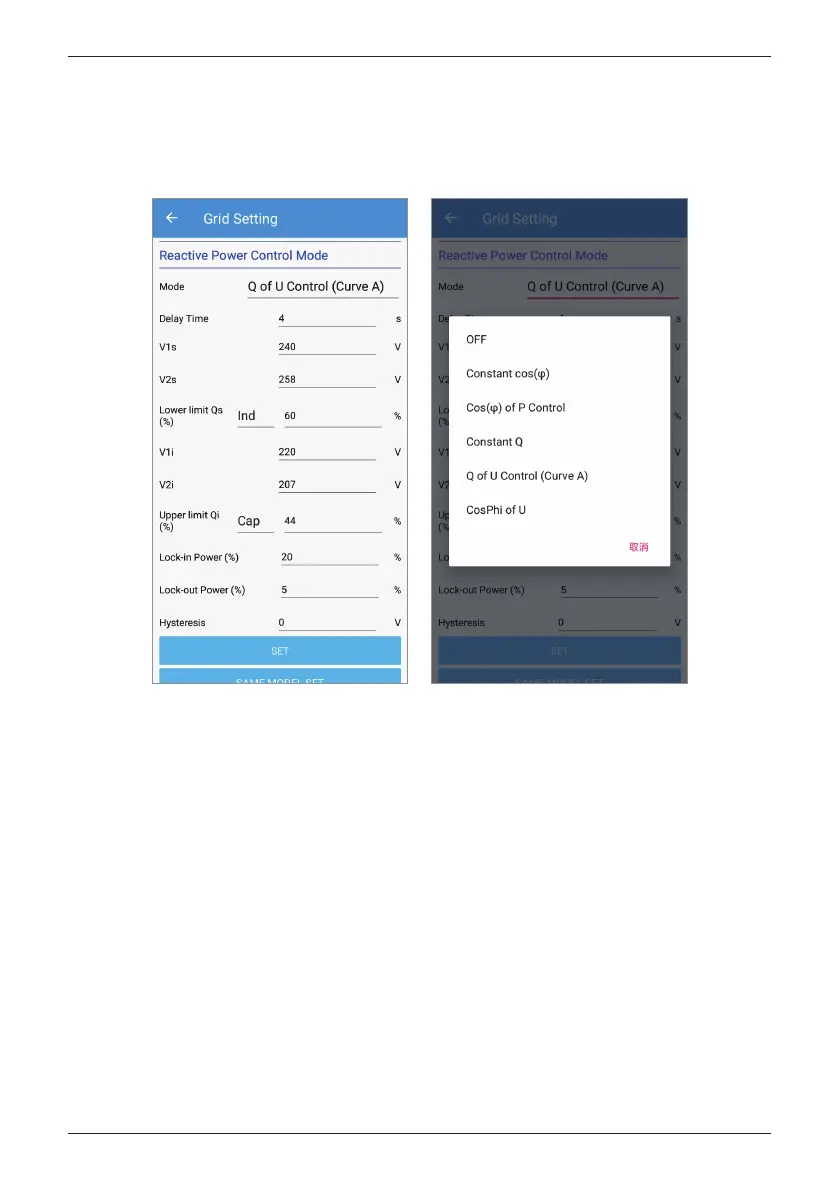

The setting of this function can be found in the “Grid Setting” page, please refer
to previous sub-chapter for the instruction to access to this page.
6.5.1
Fixed Power Factor cosφ (VDE-AR-N 4105,CEI 0-21)
Users can set the power factor from Cap 0.8 to Ind 0.8 (inverter would stop
reactive power control if output power is below 20% rated power).
31
Active/Reactive Power Control and LVRT (Optional)
